Knock Control Sensor, Intake Manifold (2TR-FE): Components

Fig 1: Knock Control Sensor (2TR-FE) Replacement Components & Torque Specification (1 Of 3)
G03081565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

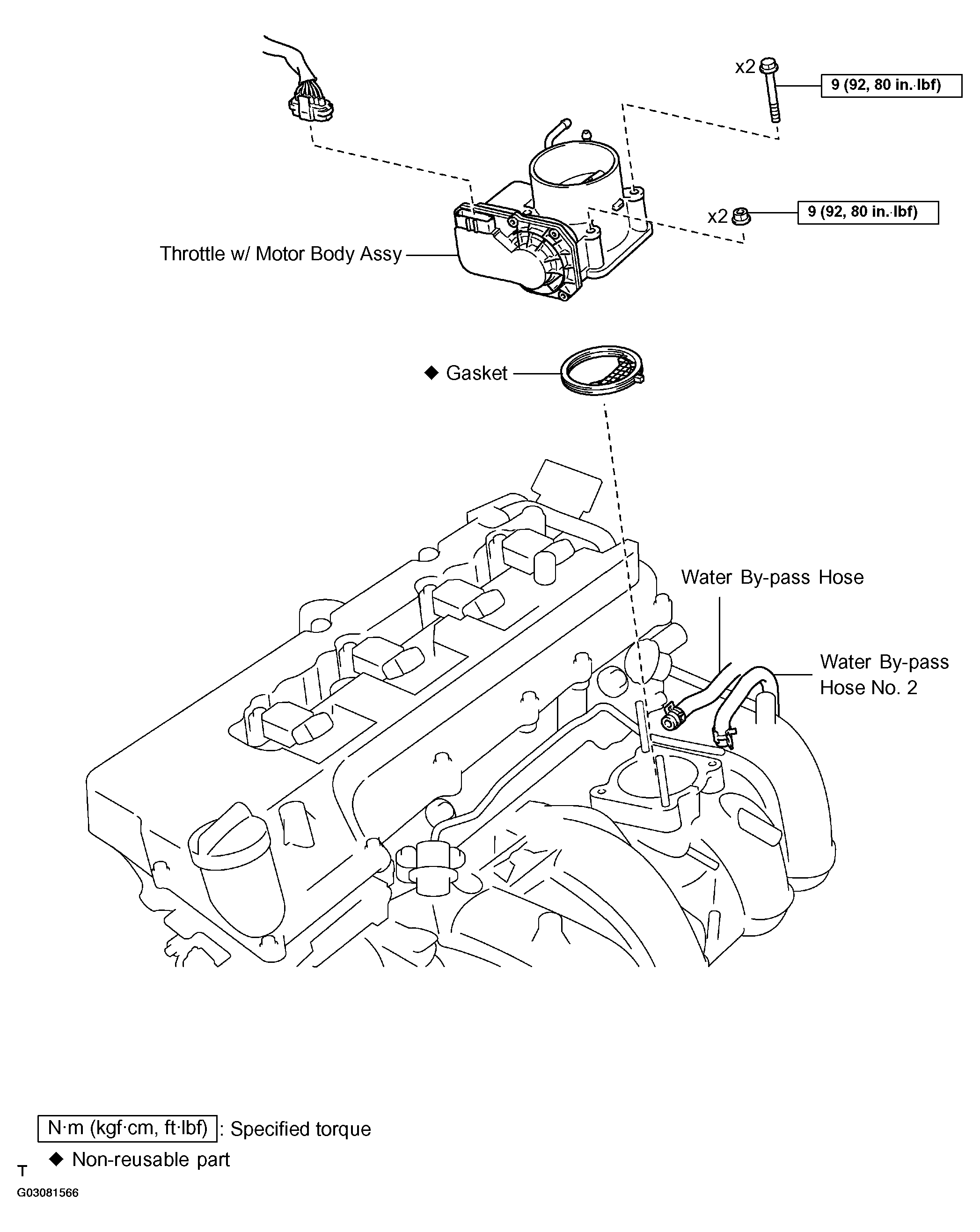

Fig 2: Knock Control Sensor (2TR-FE) Replacement Components & Torque Specification (2 Of 3)
G03081566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

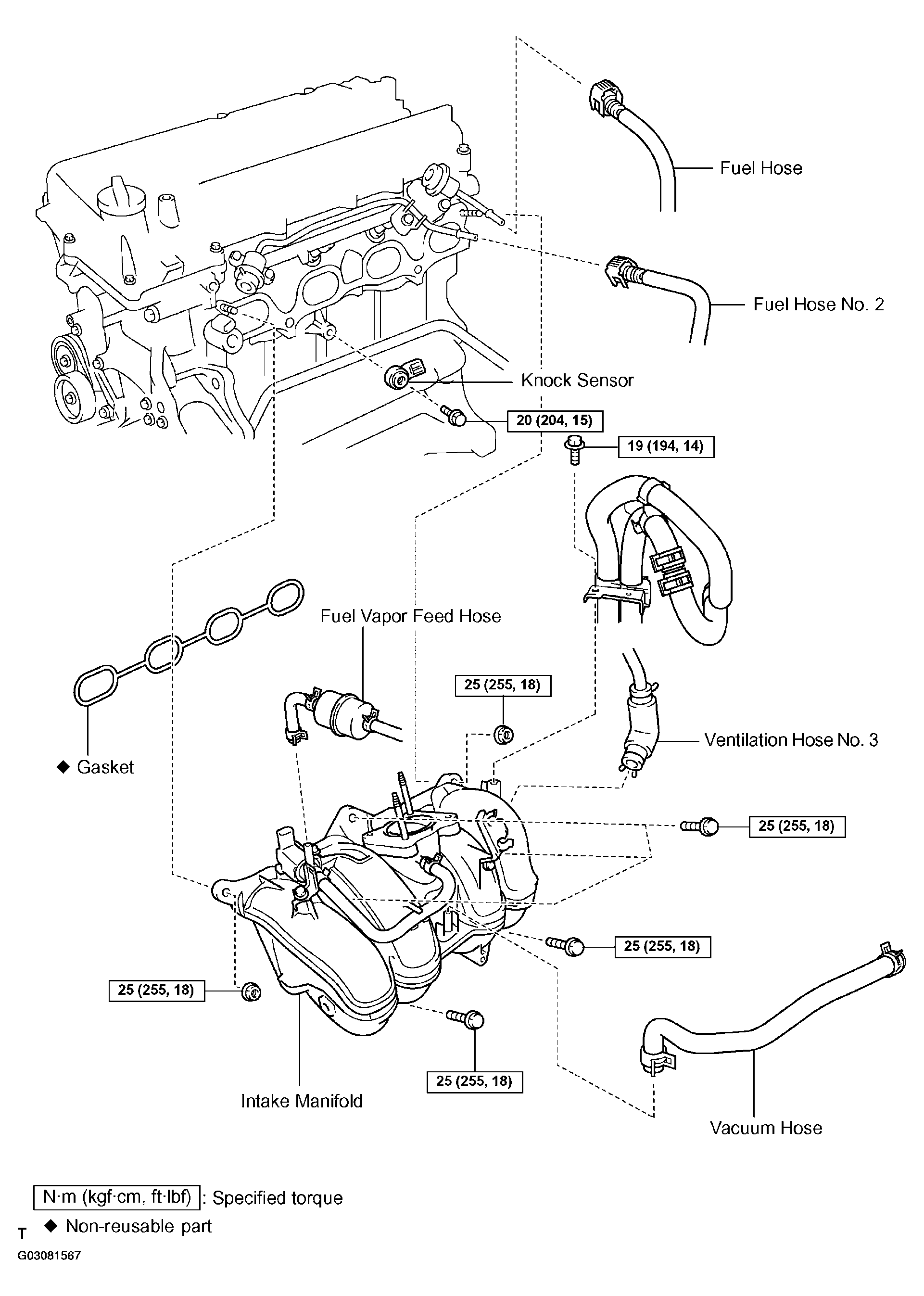

Fig 3: Knock Control Sensor (2TR-FE) Replacement Components & Torque Specification (3 Of 3)
G03081567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
