Vehicle Identification And Serial Numbers

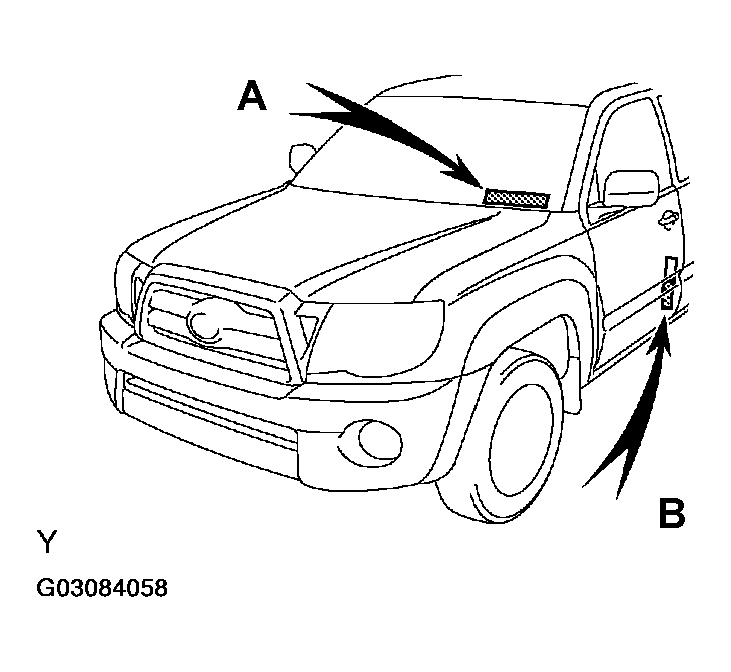

1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.

A: Vehicle Identification Number Plate

B: Certification Label

Fig 1: Identifying Vehicle Identification Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

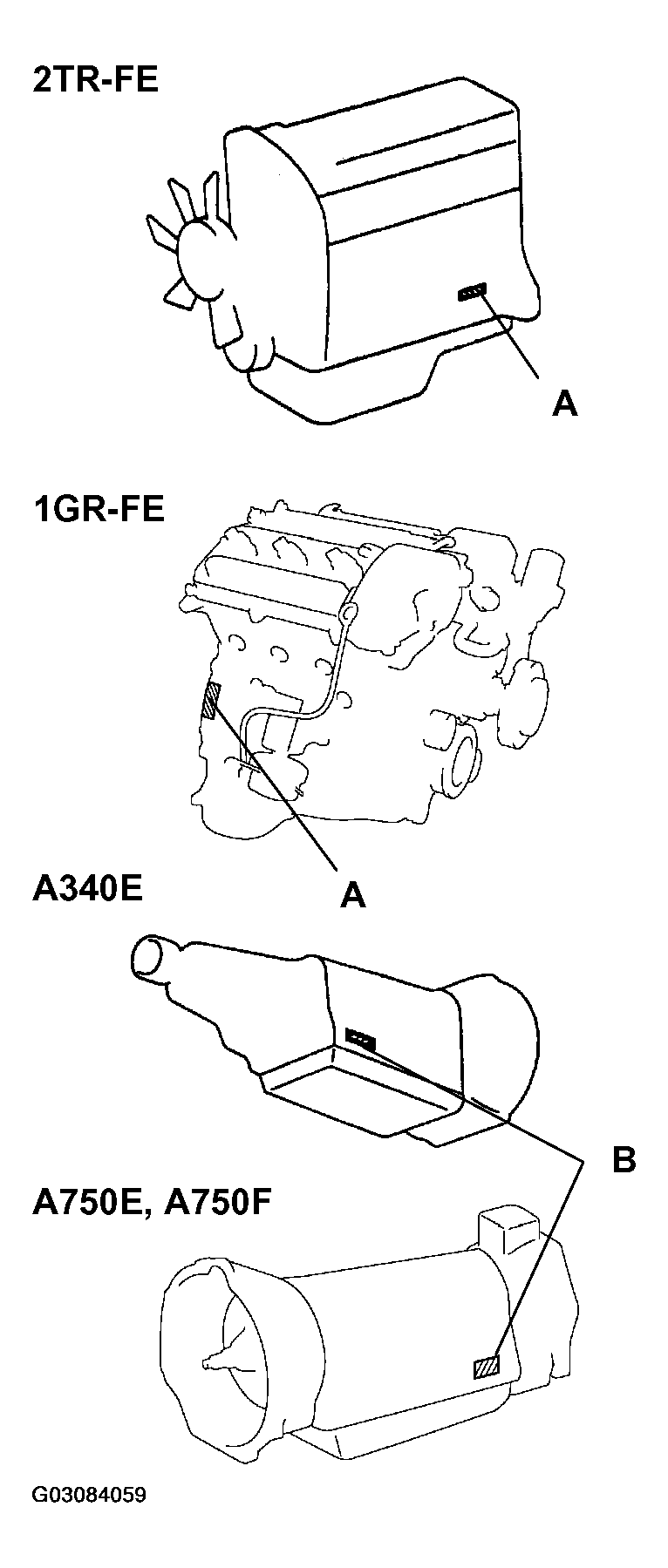

1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.

A: Engine Serial Number

B: Transmission Serial Number

Fig 2: Identifying Engine Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
