Home >> Toyota >> 2006 >> Avalon XLS >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Back Window Glass >> Components

Back Window Glass: Components

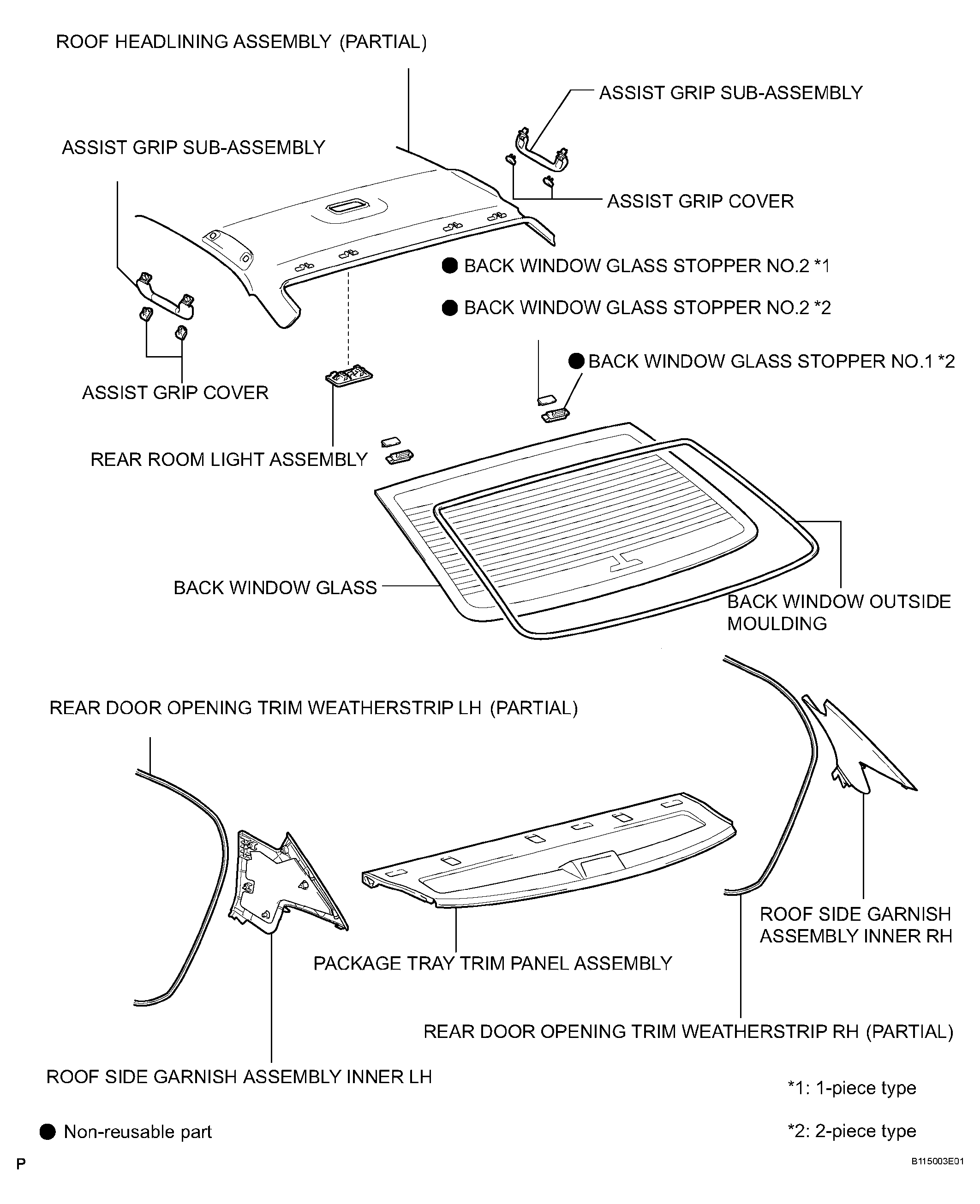

Fig 1: Identifying Back Window Glass Components And Replacements

G04379164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
