Dynamic Radar Cruise Control: Notes

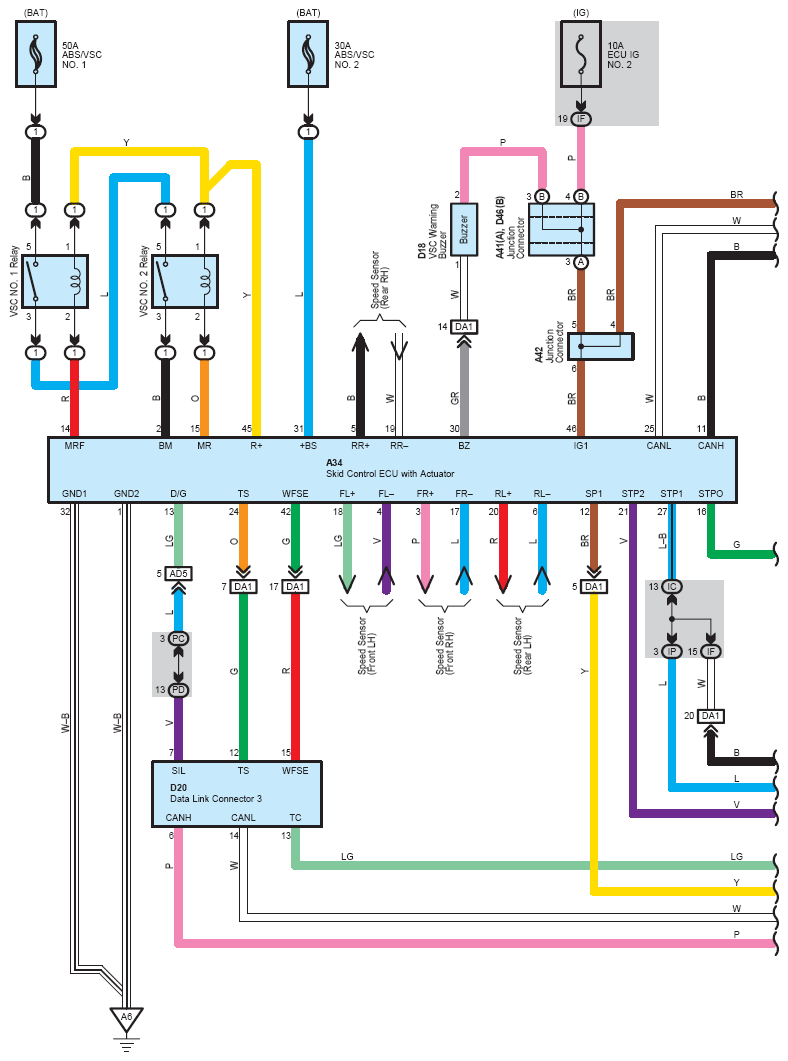

Fig 1: Dynamic Radar Cruise Control System Wiring Diagram (1 Of 11)
G08779095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

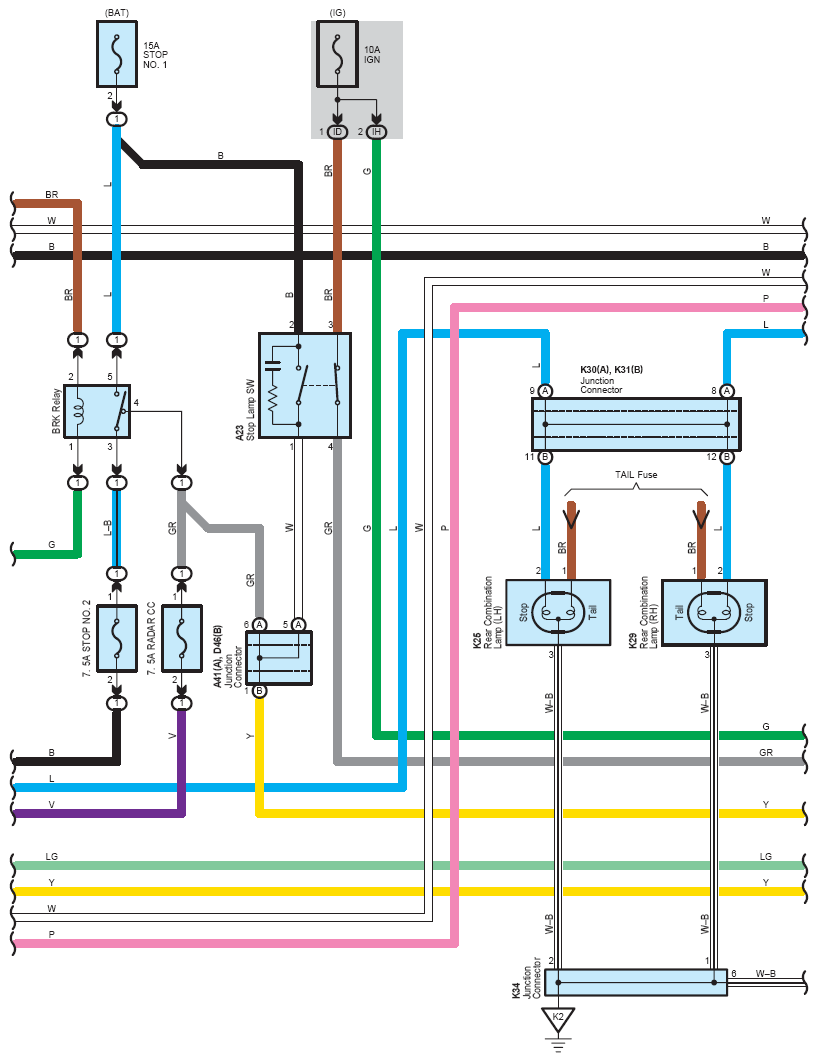

Fig 2: Dynamic Radar Cruise Control System Wiring Diagram (2 Of 11)
G08779096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

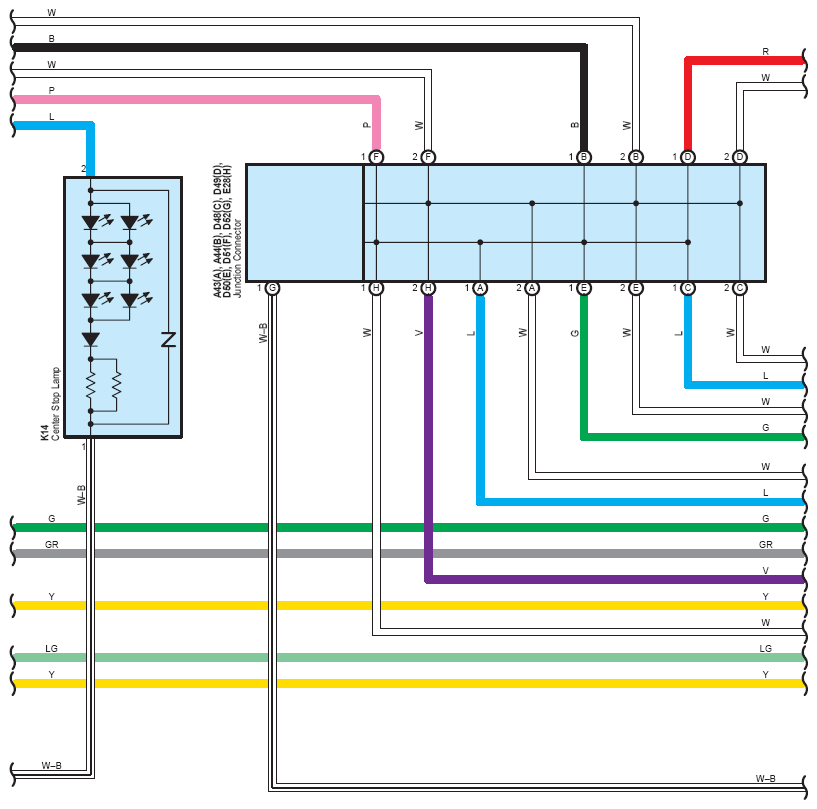

Fig 3: Dynamic Radar Cruise Control System Wiring Diagram (3 Of 11)
G08779097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

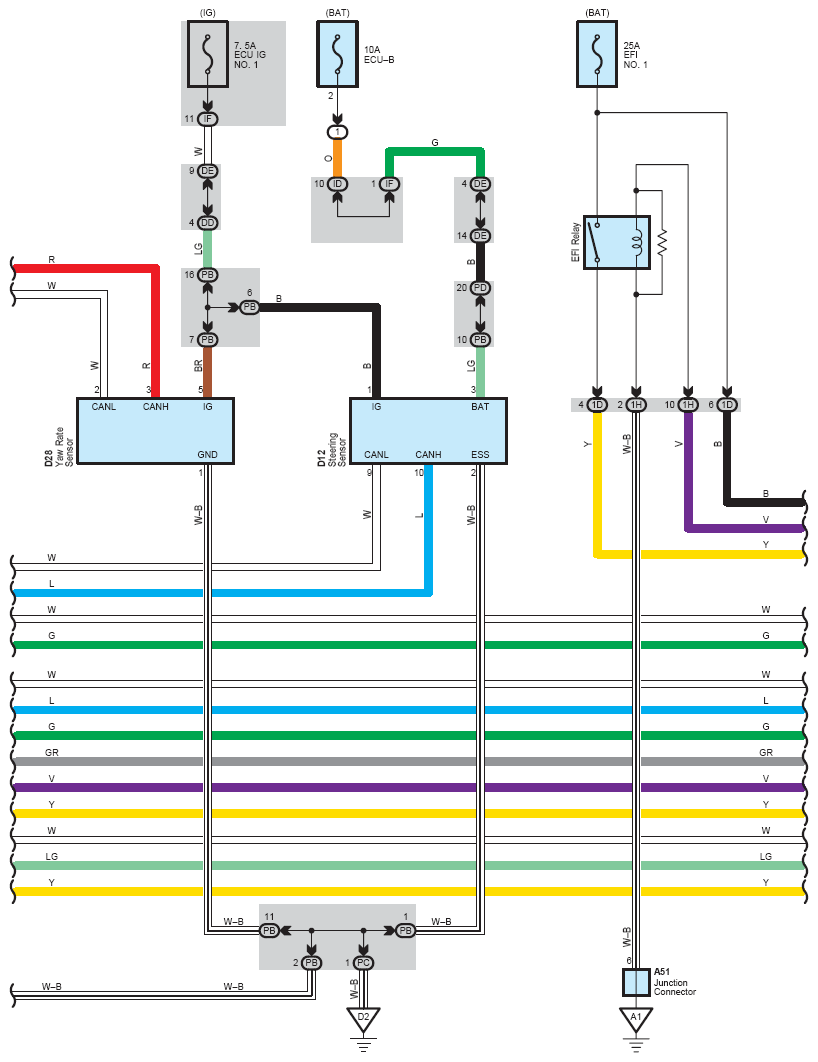

Fig 4: Dynamic Radar Cruise Control System Wiring Diagram (4 Of 11)
G08779098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

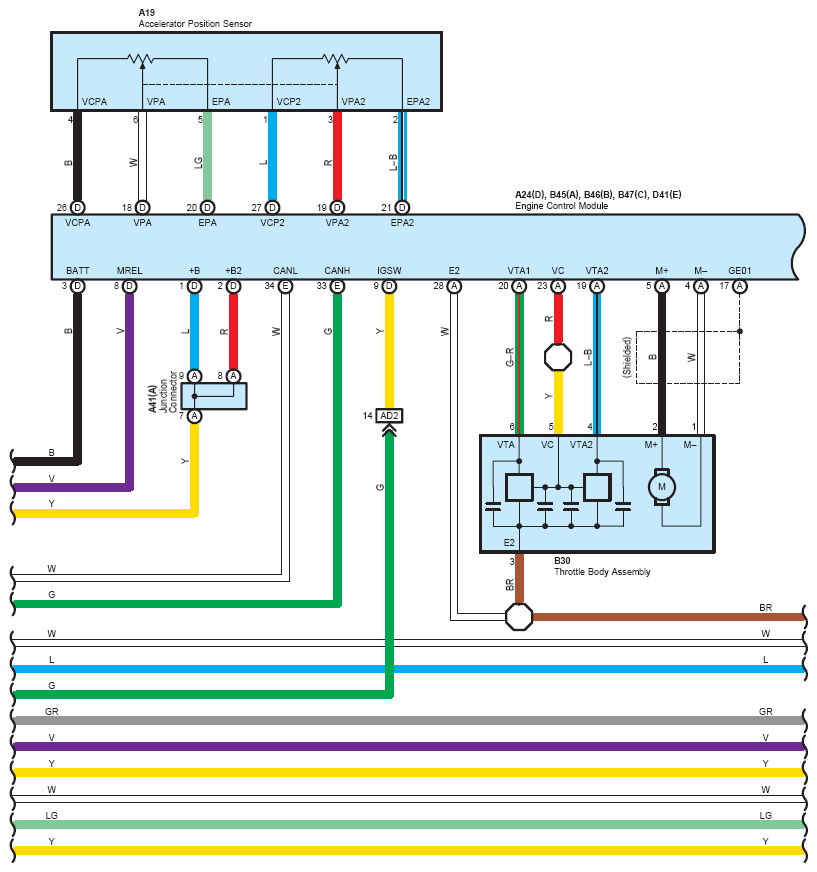

Fig 5: Dynamic Radar Cruise Control System Wiring Diagram (5 Of 11)
G08779099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

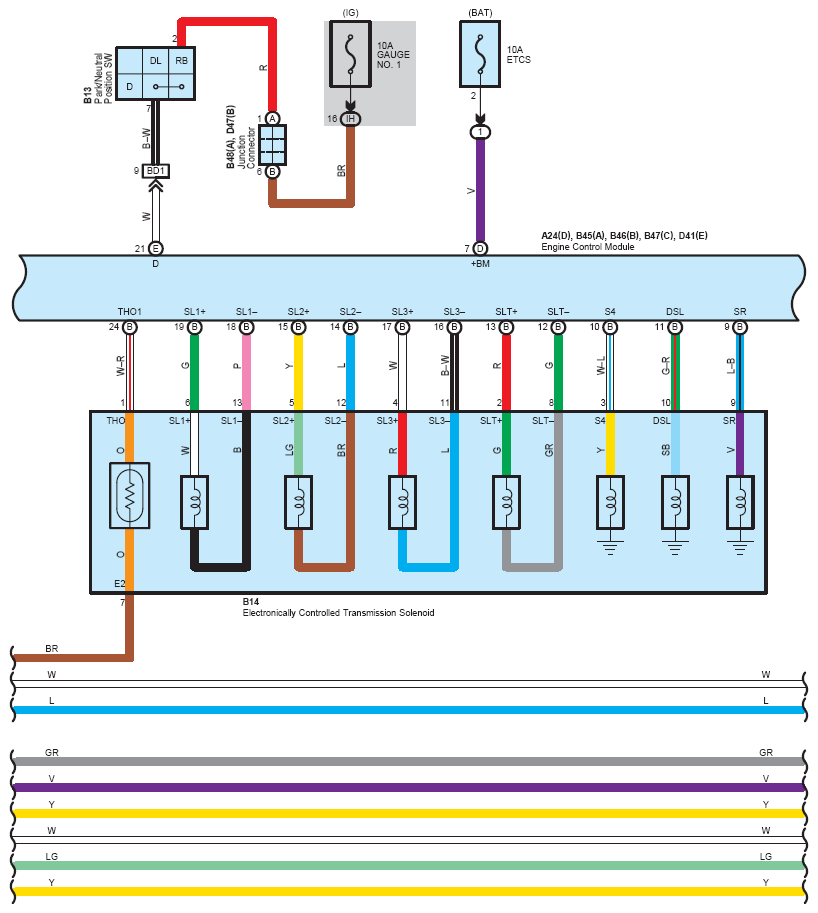

Fig 6: Dynamic Radar Cruise Control System Wiring Diagram (6 Of 11)
G08779100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

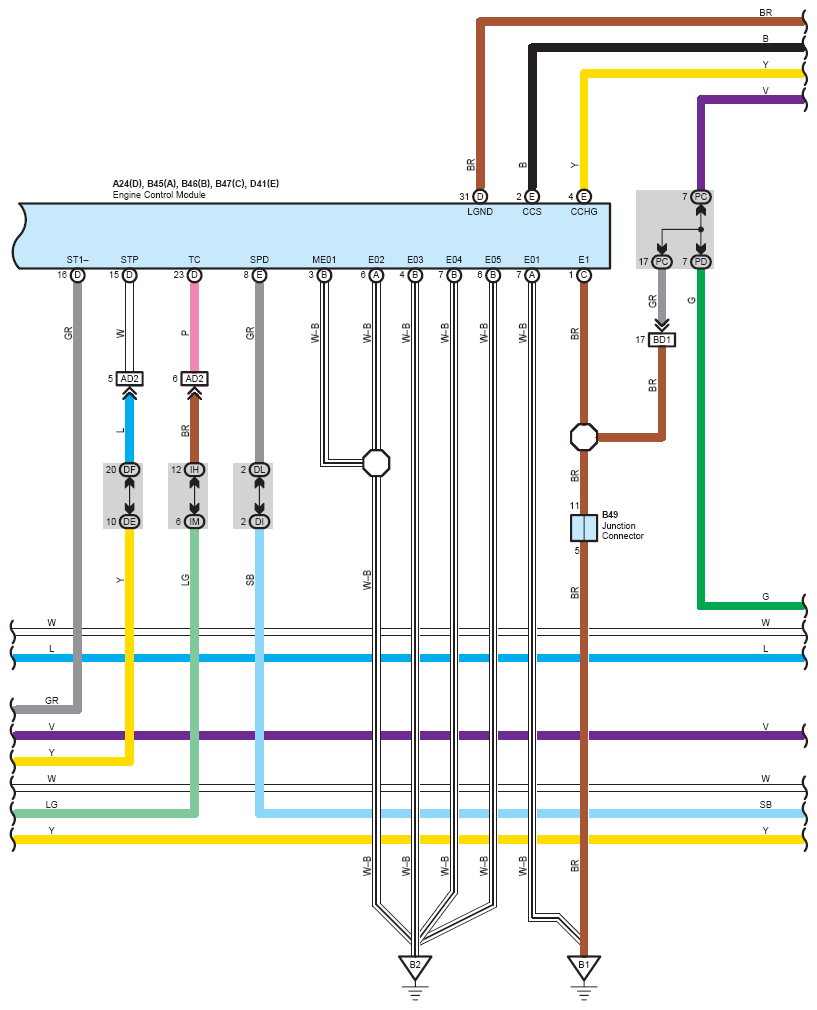

Fig 7: Dynamic Radar Cruise Control System Wiring Diagram (7 Of 11)
G08779101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

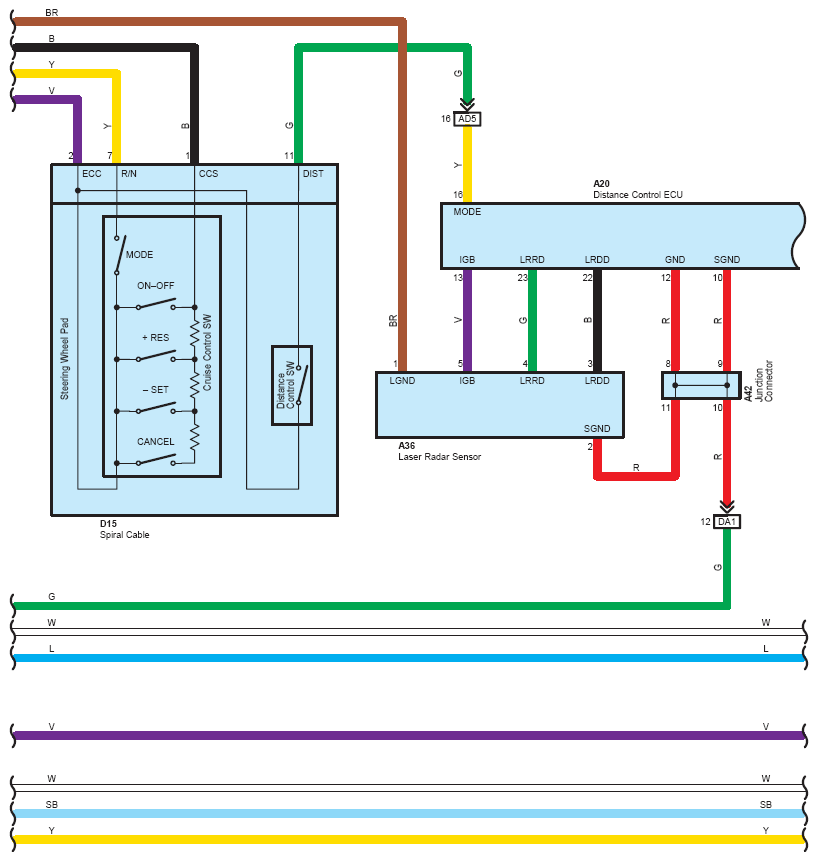

Fig 8: Dynamic Radar Cruise Control System Wiring Diagram (8 Of 11)
G08779102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

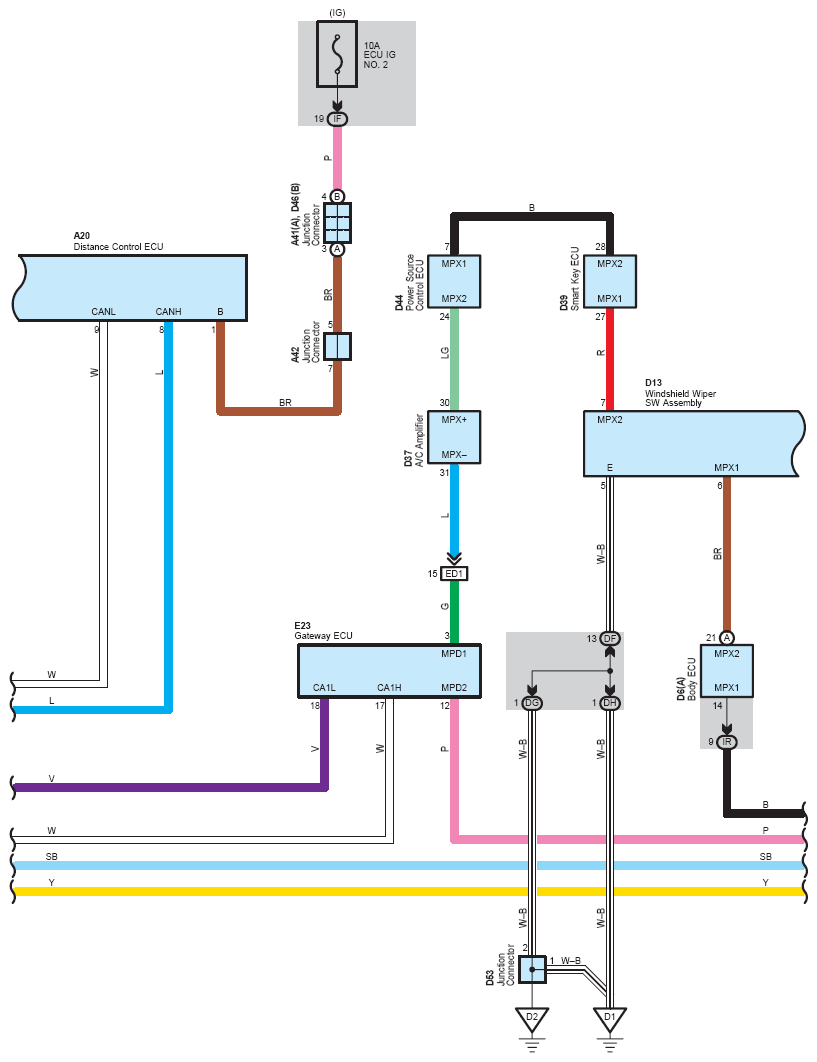

Fig 9: Dynamic Radar Cruise Control System Wiring Diagram (9 Of 11)
G08779103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

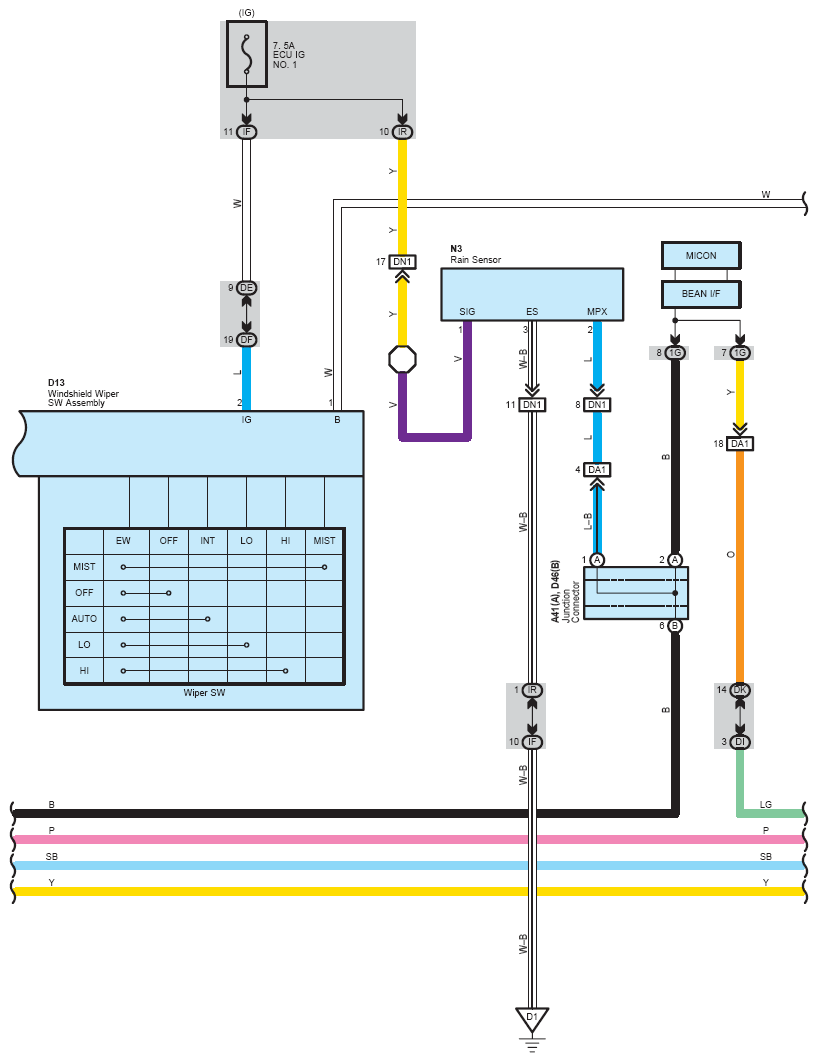

Fig 10: Dynamic Radar Cruise Control System Wiring Diagram (10 Of 11)
G08779104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

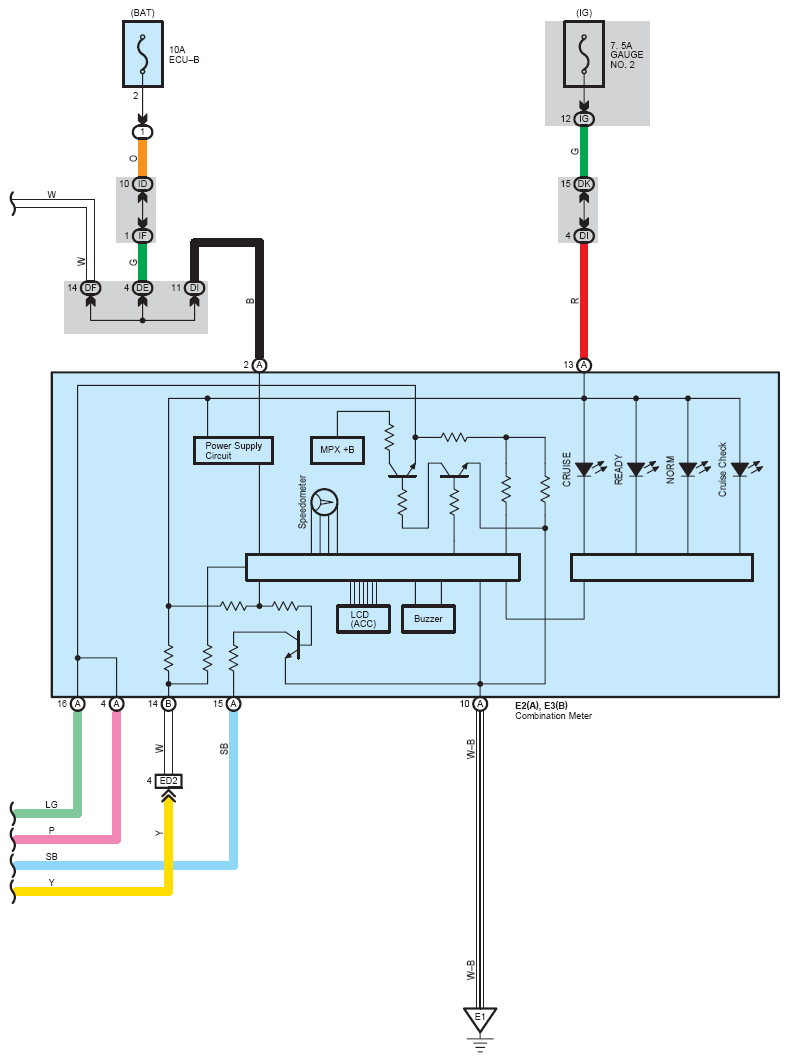

Fig 11: Dynamic Radar Cruise Control System Wiring Diagram (11 Of 11)
G08779105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
