Home >> Toyota >> 2006 >> Avalon XLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder >> Notes

Key Reminder: Notes

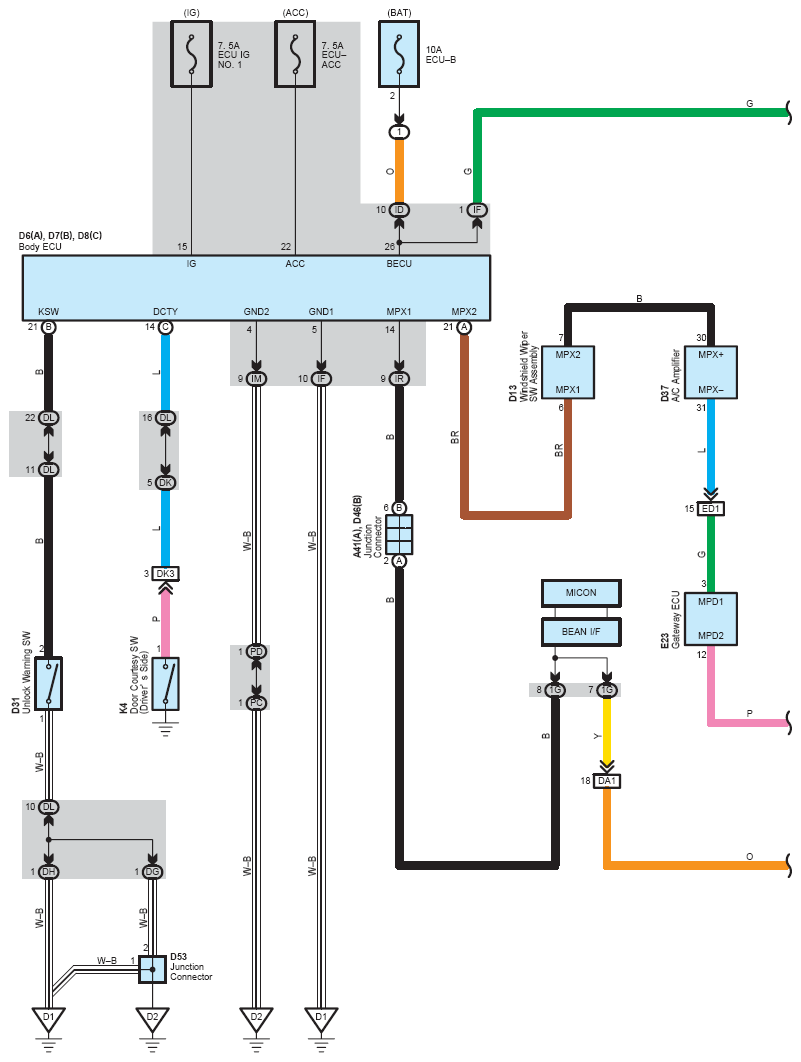

Fig 1: Key Reminder System Wiring Diagram (1 Of 2)
G08779025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

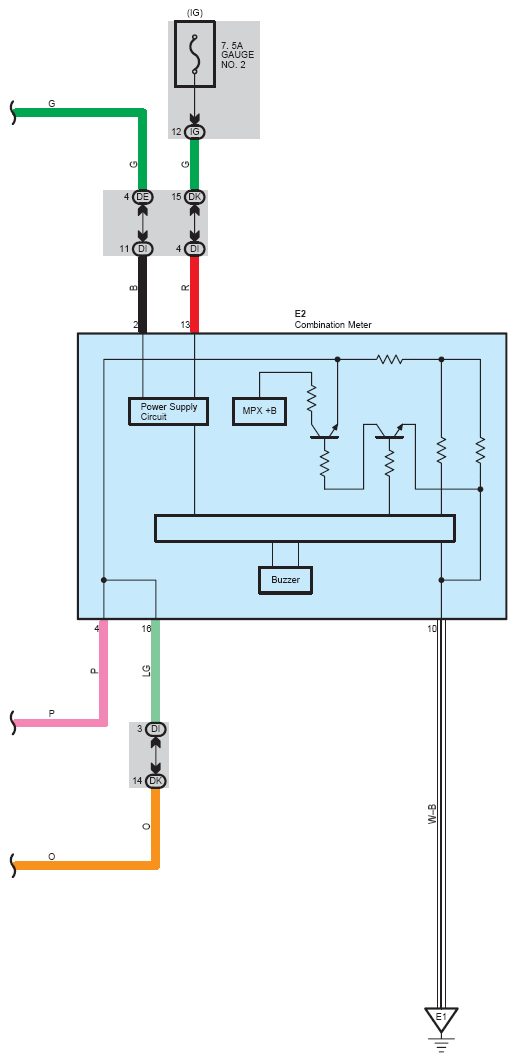

Fig 2: Key Reminder System Wiring Diagram (2 Of 2)
G08779026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
