Sliding Roof: Notes

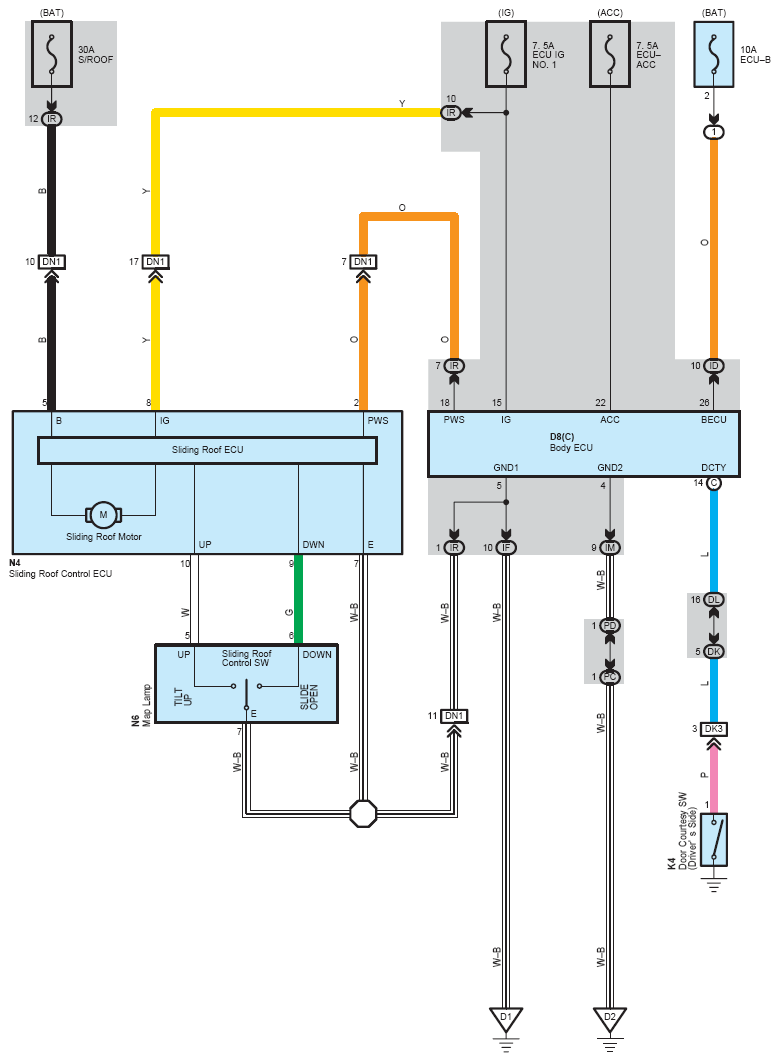

Fig 1: Sliding Roof System Wiring Diagram

G08779136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
