Home >> Toyota >> 2006 >> Avalon XLS >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Starting without Smart Key System >> Notes

Starting without Smart Key System: Notes

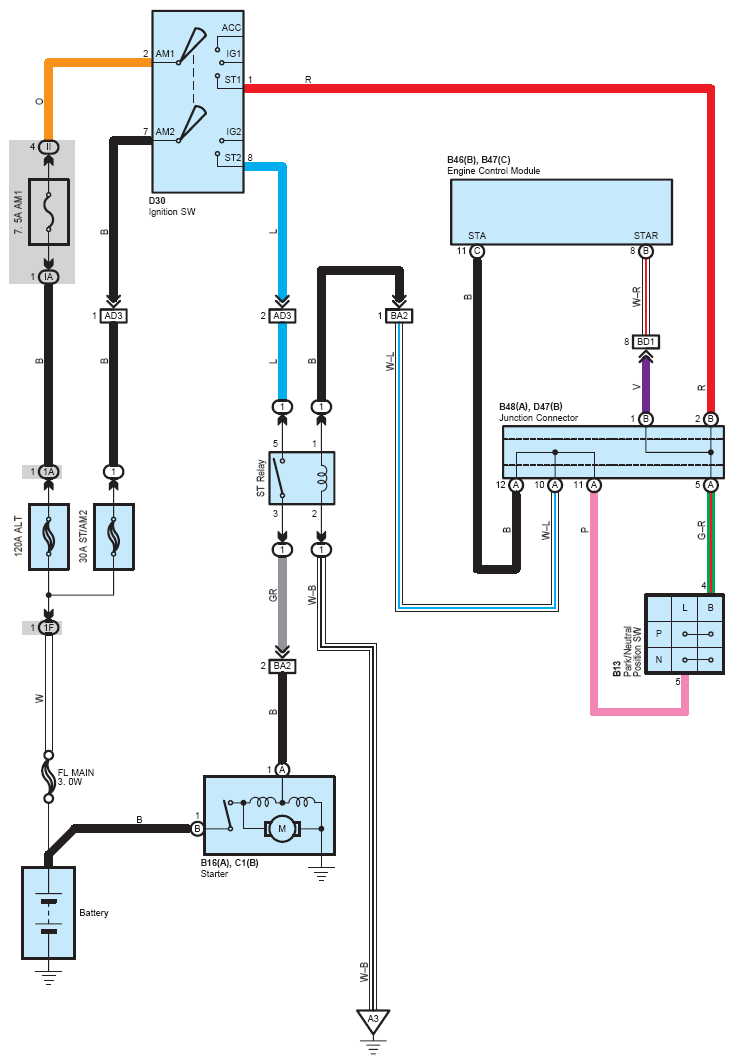

Fig 1: Starting System Wiring Diagram (Without Smart Key)
G08778962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
