Charging System: Generator: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER SUB-ASSEMBLY (See step 9 under REMOVAL )
REMOVE FAN AND GENERATOR V BELT (See step 13 under REMOVAL )
REMOVE GENERATOR ASSEMBLY
1. Disconnect the wire harness clamp.

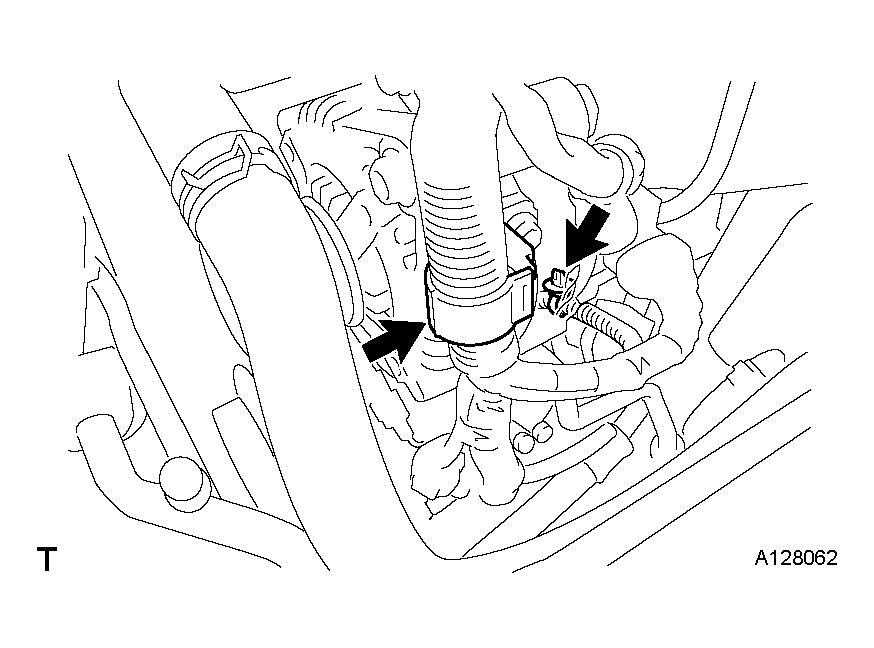

  Fig 1: Disconnecting Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the terminal cap.
3. Remove the nut and disconnect the wire harness from terminal B.
4. Disconnect the generator connector from the generator assembly.

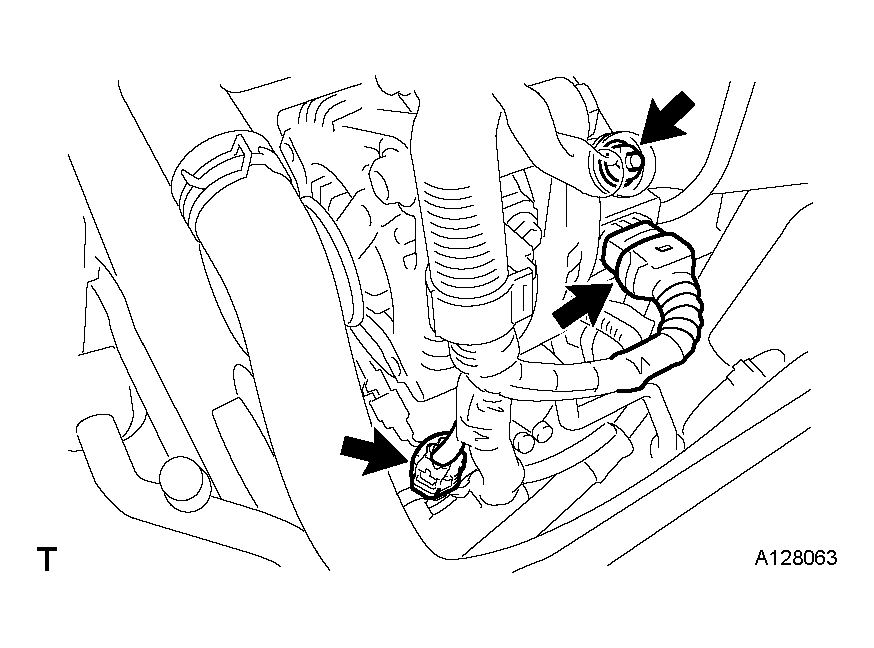

  Fig 2: Disconnecting Generator Connector From Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the nut from the cylinder block.

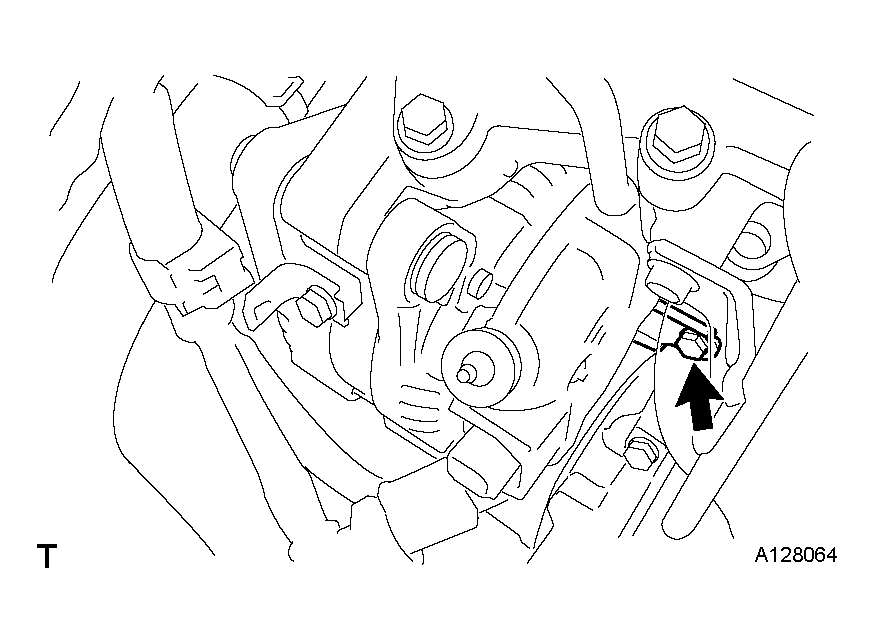

  Fig 3: Removing Nut From Cylinder Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts and generator assembly.

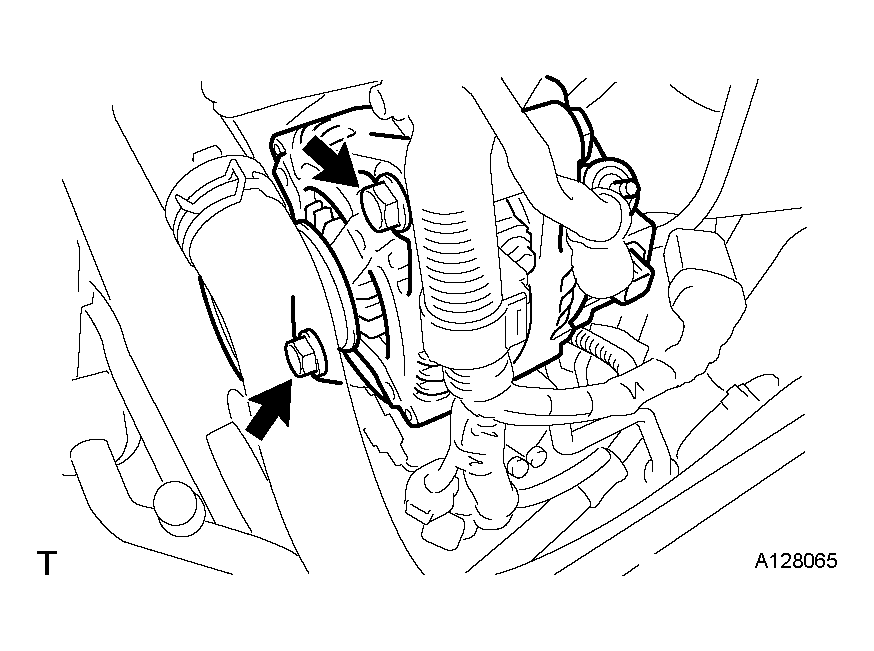

  Fig 4: Removing Generator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the bolt and wire harness clamp stay.

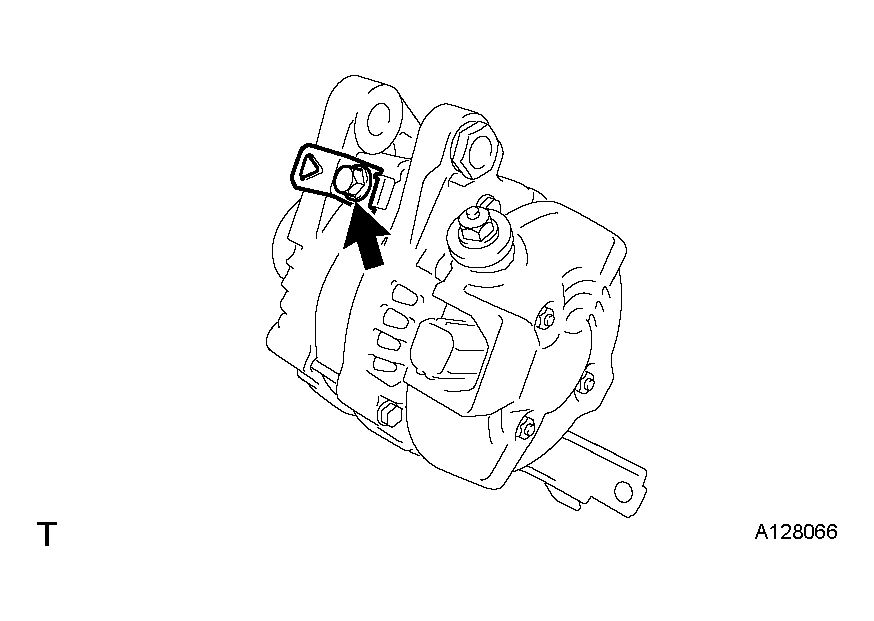

  Fig 5: Removing Wire Harness Clamp Stay Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the bolt and bracket.

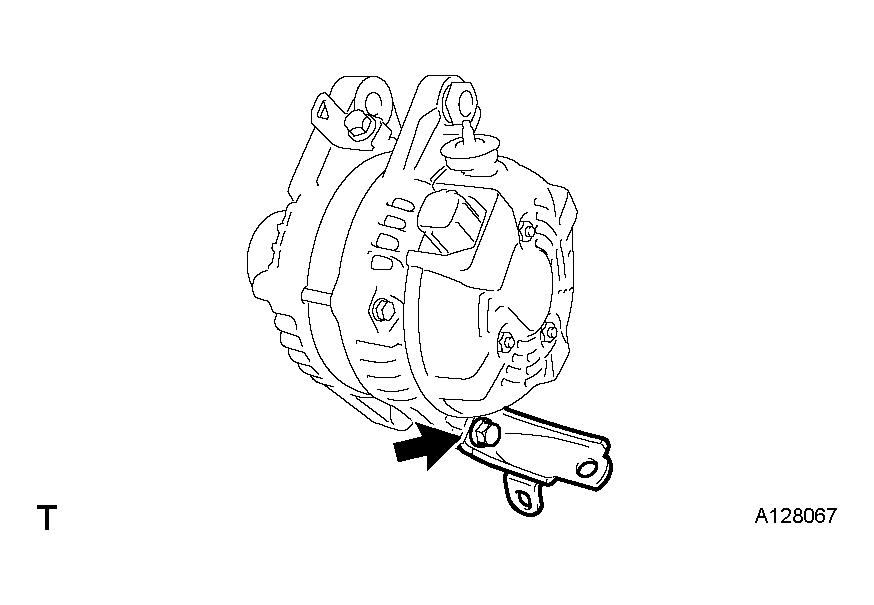

  Fig 6: Removing Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
