Fuel Pump: Installation

INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
1. Install a new gasket to the fuel suction tube.
2. Install the fuel suction tube.
  NOTE:
  - Do not damage the fuel pump filter.
  - Be careful that the arm of the sender gauge should not bend.

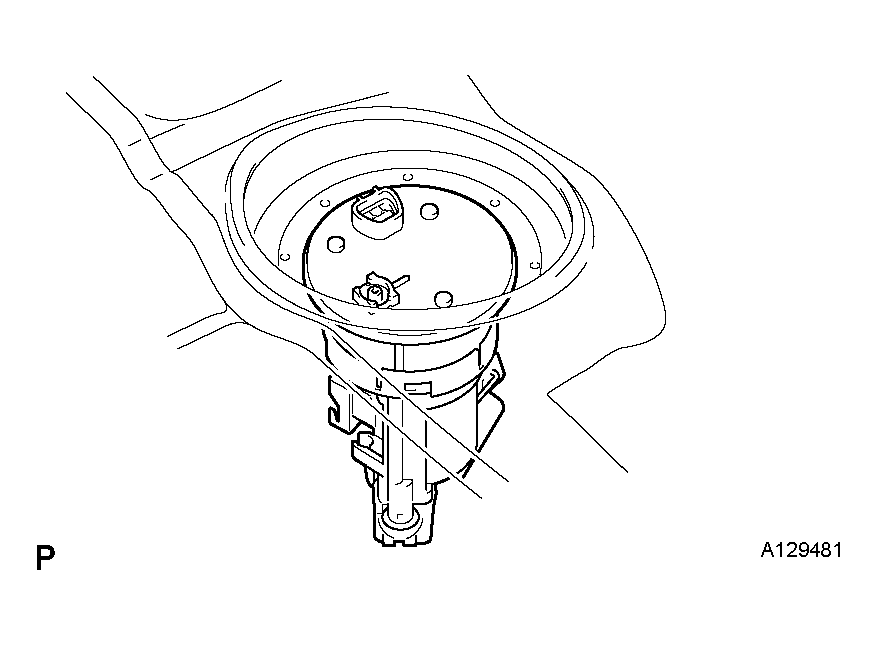

    Fig 1: Installing Fuel Suction Tube
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK VENT TUBE SET PLATE
1. Align the mark of the set plate with the fuel suction tube.
2. Install the set plate with the 8 bolts.
  Torque: 5.9 N m (60 kgf cm, 52 in. lbf)

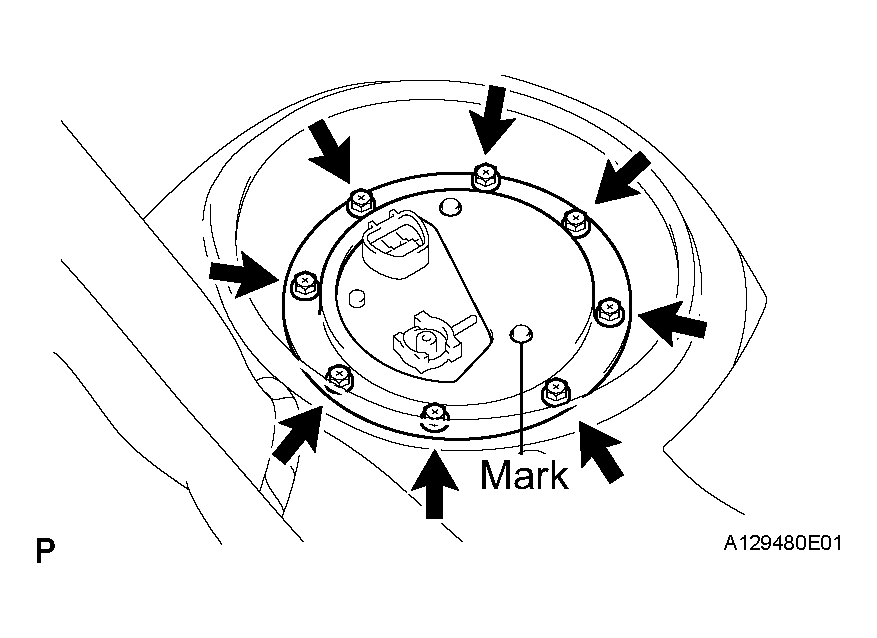

  Fig 2: Aligning Mark Of Set Plate With Fuel Suction Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL PUMP TUBE SUB-ASSEMBLY
1. Install the fuel pump tube with the tube joint clip.
  NOTE:
  - Check that there is no scratches or foreign objects on the connecting part.
  - Check that the fuel tube joint is inserted securely.
  - Check that the tube joint clip is on the collar of the fuel tube joint.
  - After installing the tube joint clip, check that the fuel tube joint is pulled off.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR FUEL LEAKS (See ON-VEHICLE INSPECTION )
INSTALL REAR FLOOR SERVICE HOLE COVER
INSTALL REAR SEAT CUSHION ASSEMBLY
PERFORM SYSTEM INITIALIZE
1. Some systems need initialization when disconnecting the battery terminal.

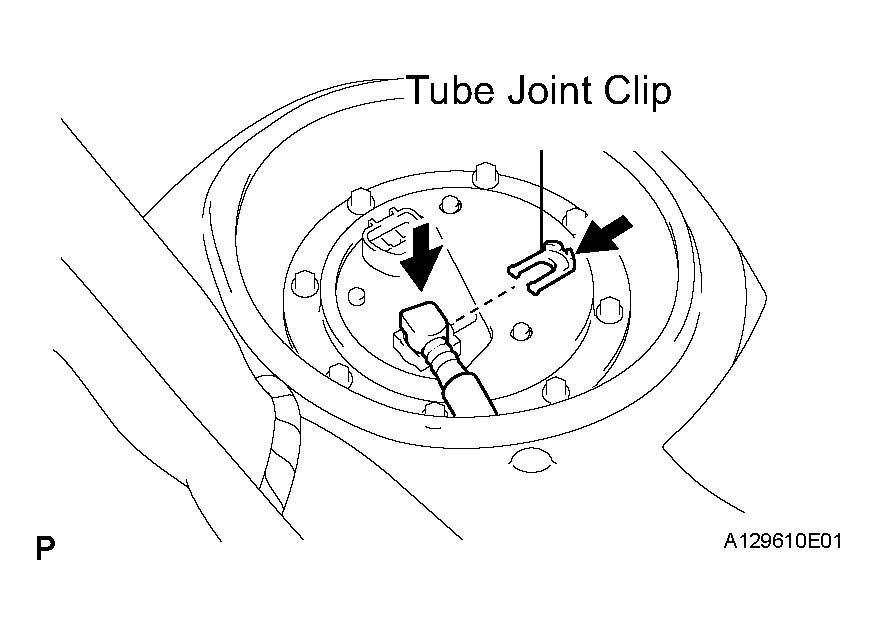

  Fig 3: Installing Fuel Pump Tube With Tube Joint Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
