Fuel Tank: Components

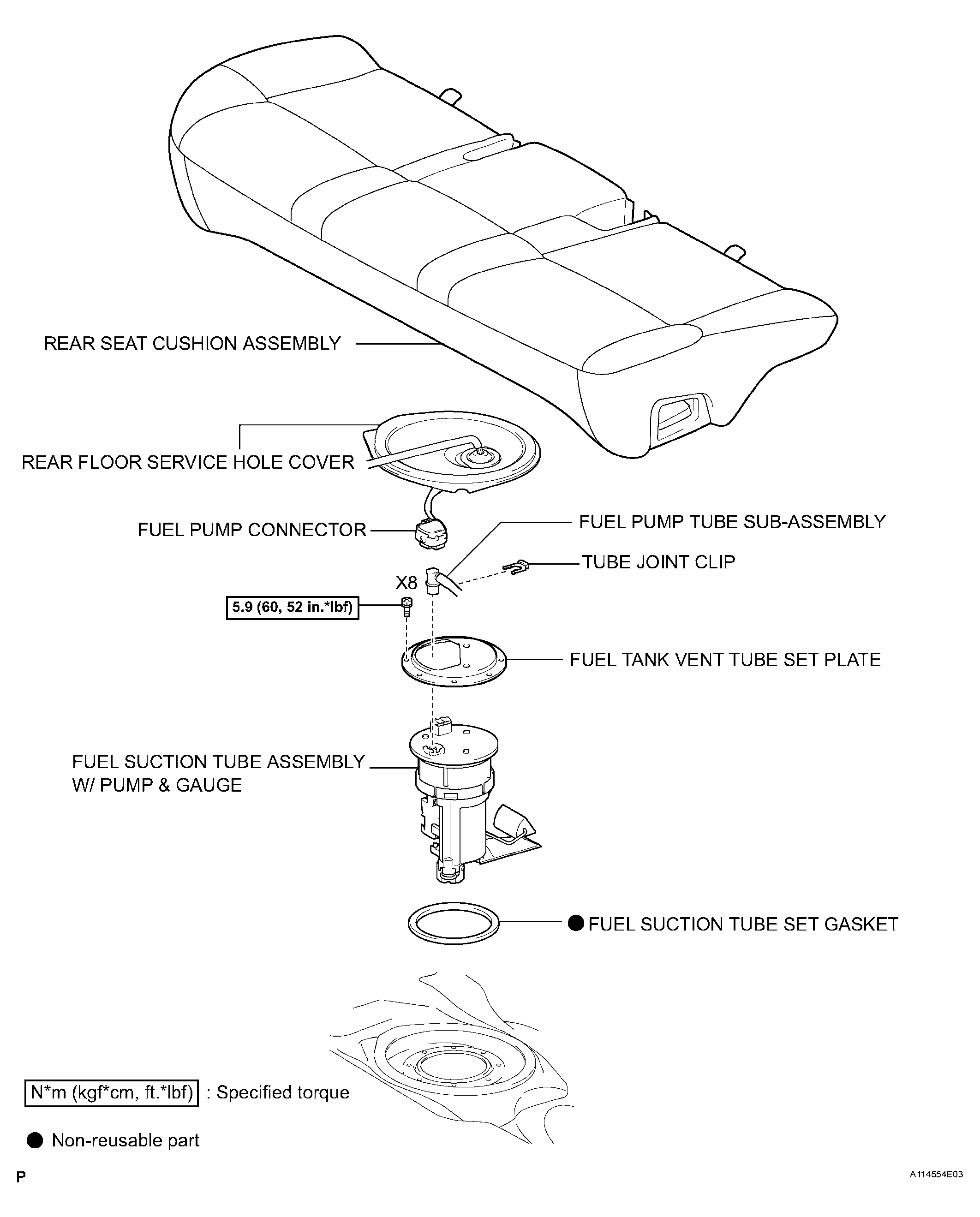

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G04377024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

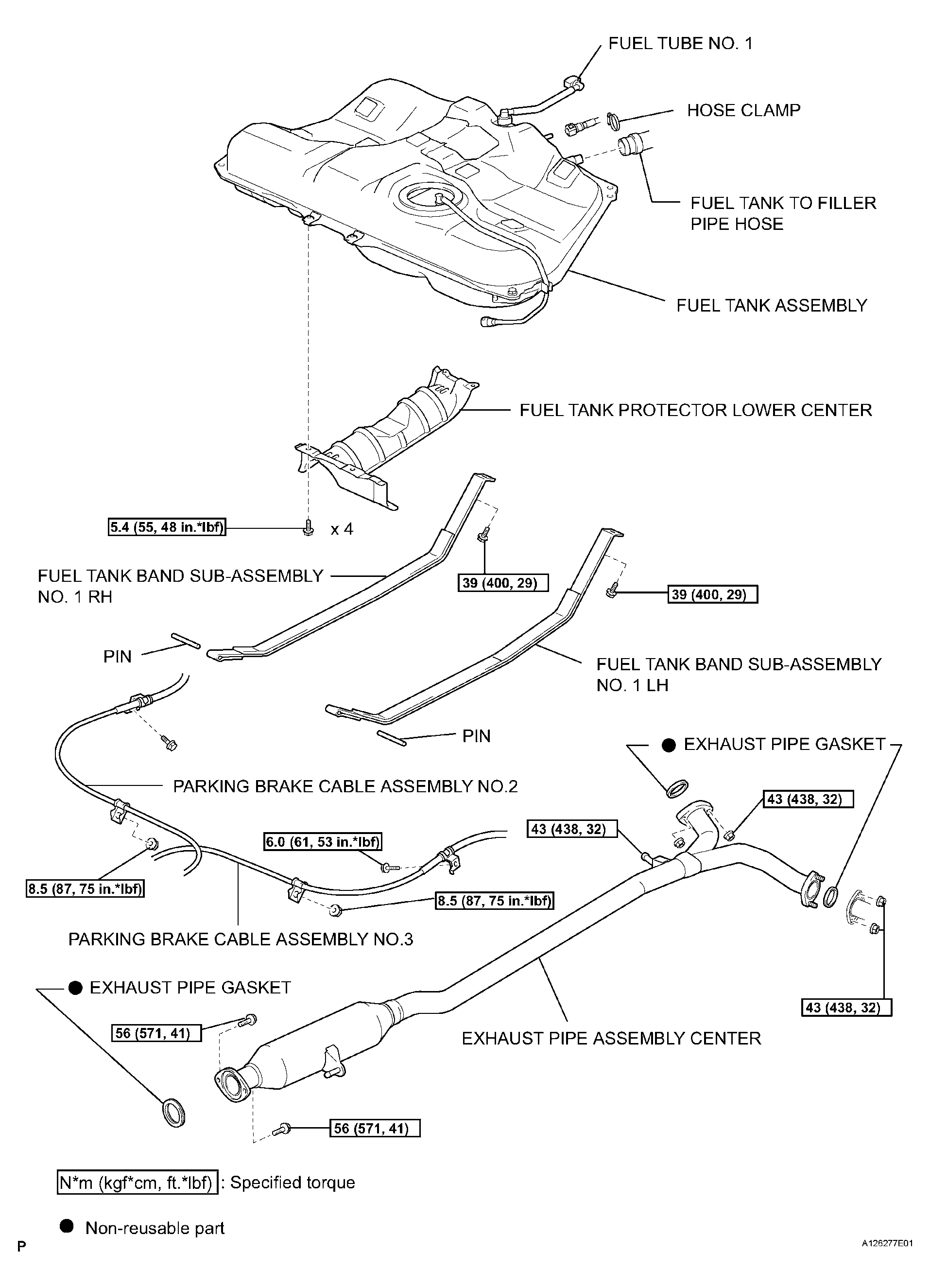

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
G04377025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

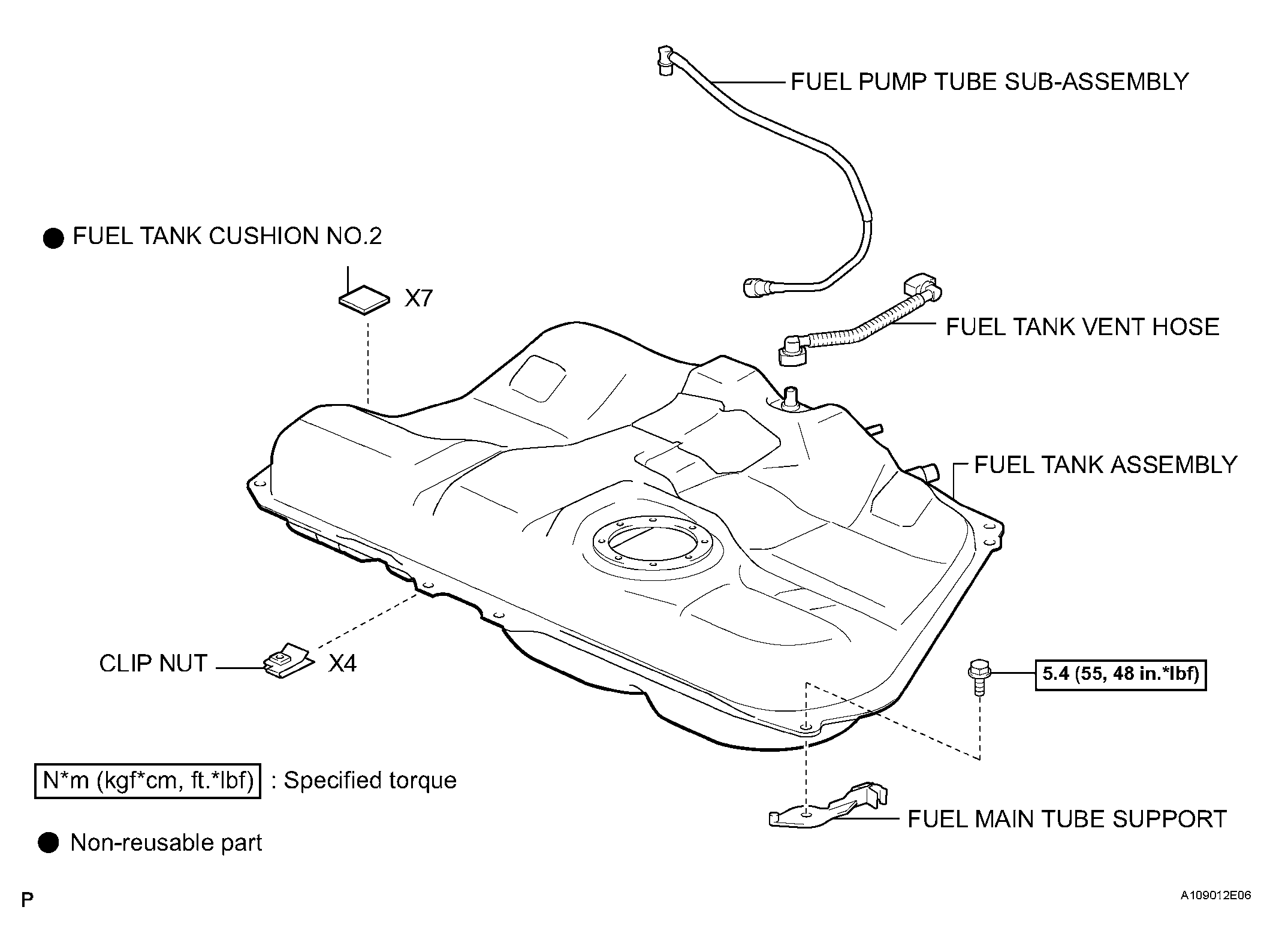

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G04377026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
