Rear Strut Rod: Installation

TEMPORARILY TIGHTEN REAR STRUT ROD
1. Install the strut rod (rear side), bolt and nut, and temporarily tighten the bolt.

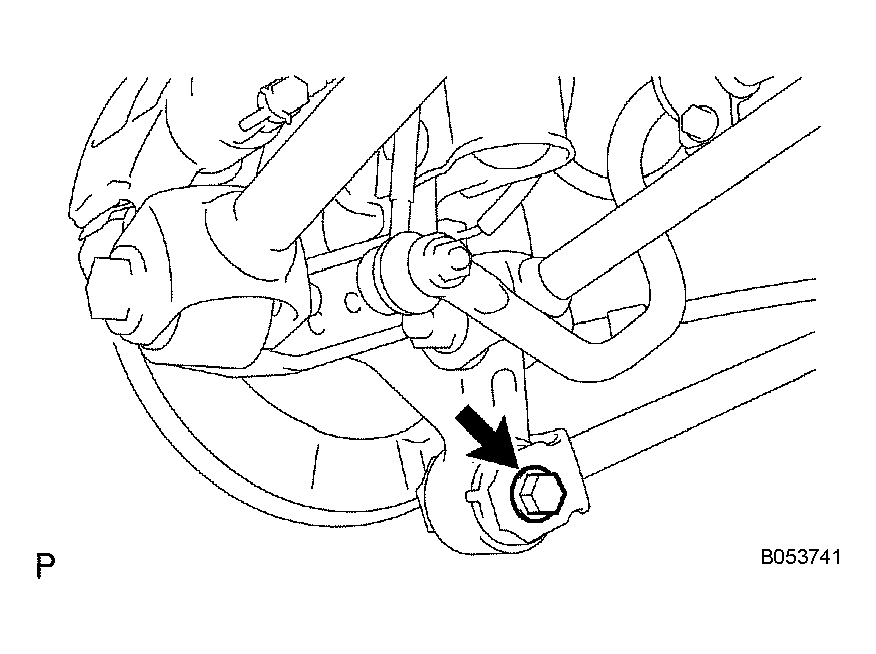

  Fig 1: Installing Strut Rod (Rear Side), Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: When installing the bolt, fix the nut and temporarily tighten the bolt.

  HINT:

  Insert the bolt from the inner side of the vehicle and temporarily install the bolt.
2. Connect the strut rod (front side) with the bolt and nut.
  NOTE: When installing the bolt, fix the nut and temporarily tighten the bolt.

  Fig 2: Connecting Strut Rod (Front Side) With Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STABILIZE SUSPENSION
1. Jack up the rear axle carrier, placing a wooden block to avoid damage. Apply a load to the suspension so that the installed bolt of the suspension arm assembly No. 1 (inner side of the vehicle) is horizontally aligned with the center of the rear axle hub.

  Fig 3: Jacking Up Rear Axle Carrier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR STRUT ROD
1. Fully tighten the bolt.
  Torque: 113 N*m (1,150 kgf*cm, 83 ft.*lbf)

  NOTE: When installing the bolt, fix the nut and tighten the bolt.

  Fig 4: Tightening Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fully tighten the bolt.
  Torque: 113 N*m (1,150 kgf*cm, 83 ft.*lbf)

  NOTE: When installing the bolt, fix the nut and tighten the bolt.

  Fig 5: Tightening Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the parking brake cable with the bolt.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 6 ft.*lbf)
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
1. Inspect and adjust the rear wheel alignment (See REAR WHEEL ALIGNMENT ).

  Fig 6: Installing Parking Brake Cable With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
