Throttle Body ASSY (2AZ-FE): Components

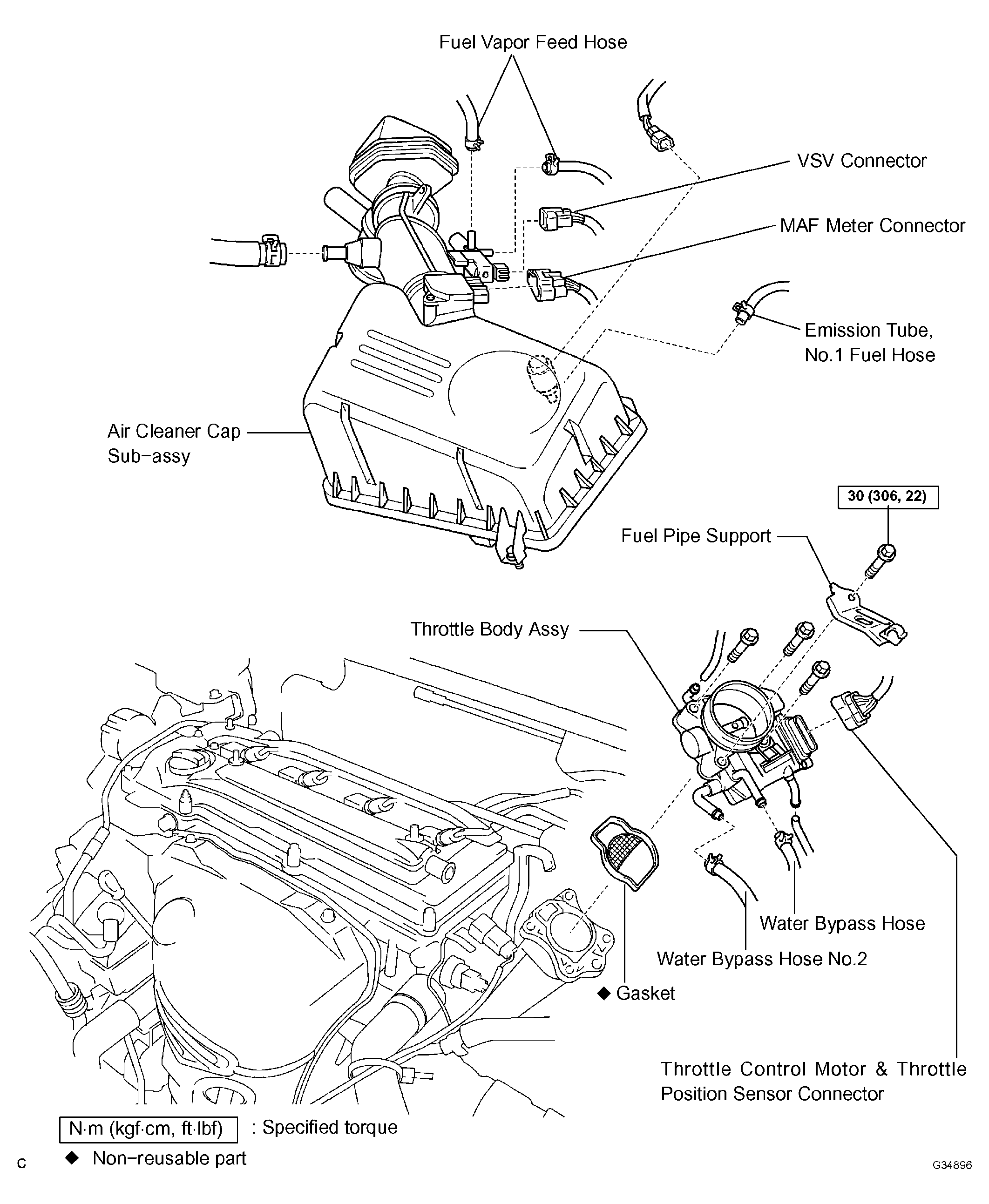

Fig 1: Identifying Throttle Body Assy (2AZ-FE) Components

G04391279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
