Engine Performance: Tune-Up: Preparation: Fuel: Preparation
SST
FUEL - SST CHART
| 09268-21010 Fuel Hose Puller | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

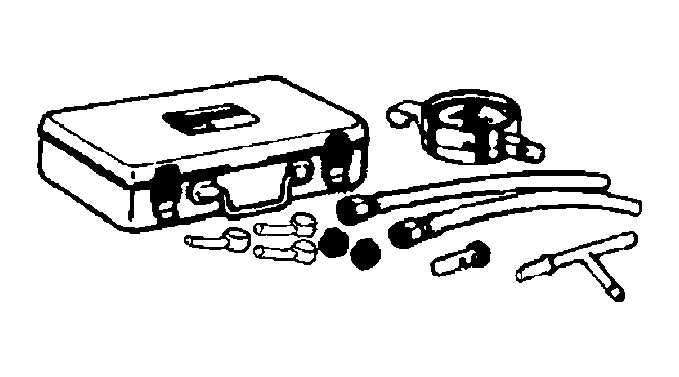

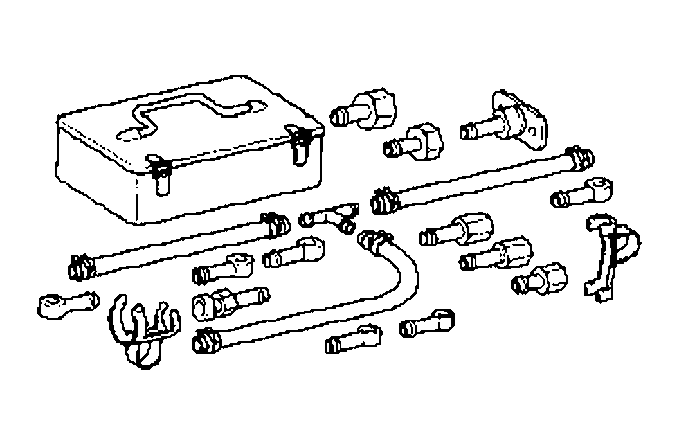

| 09268-41047 Injection Measuring Tool Set | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

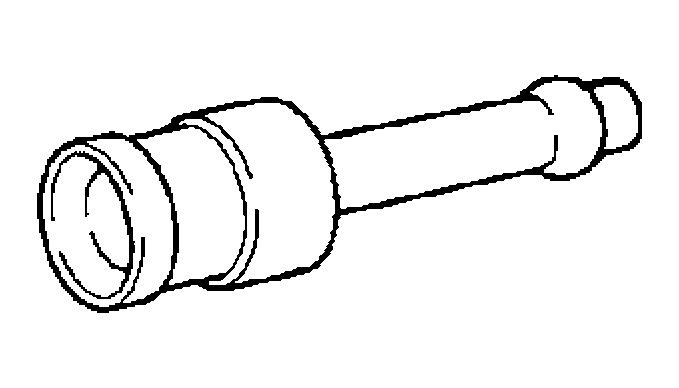

| (09268-41110) Adaptor | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|
| (09268-41200) Gauge | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

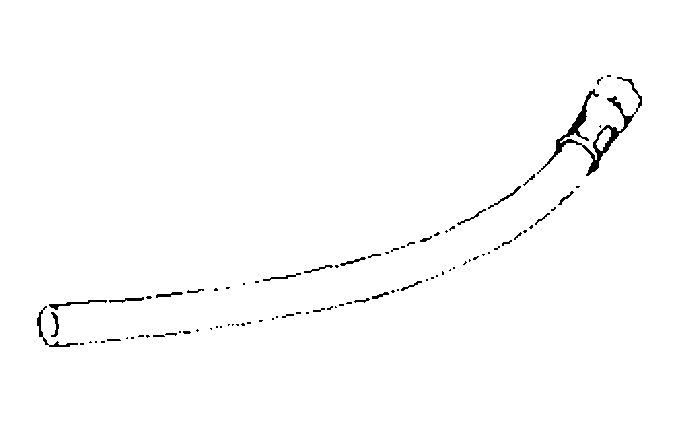

| (09268-41220) Hose | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

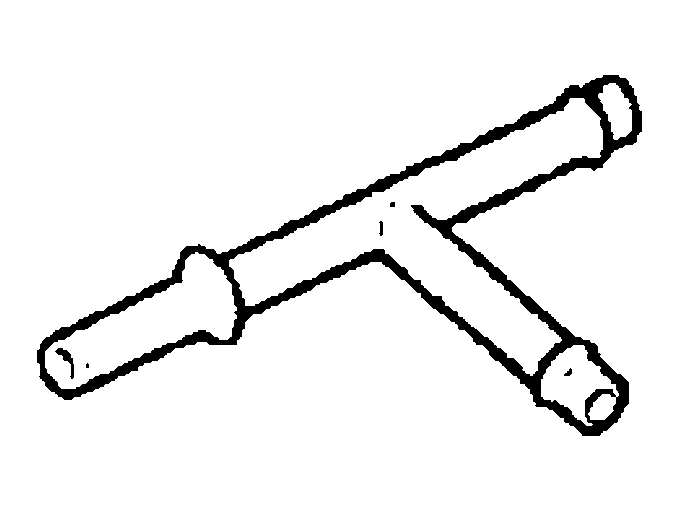

| (09268-41250) T Joint | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

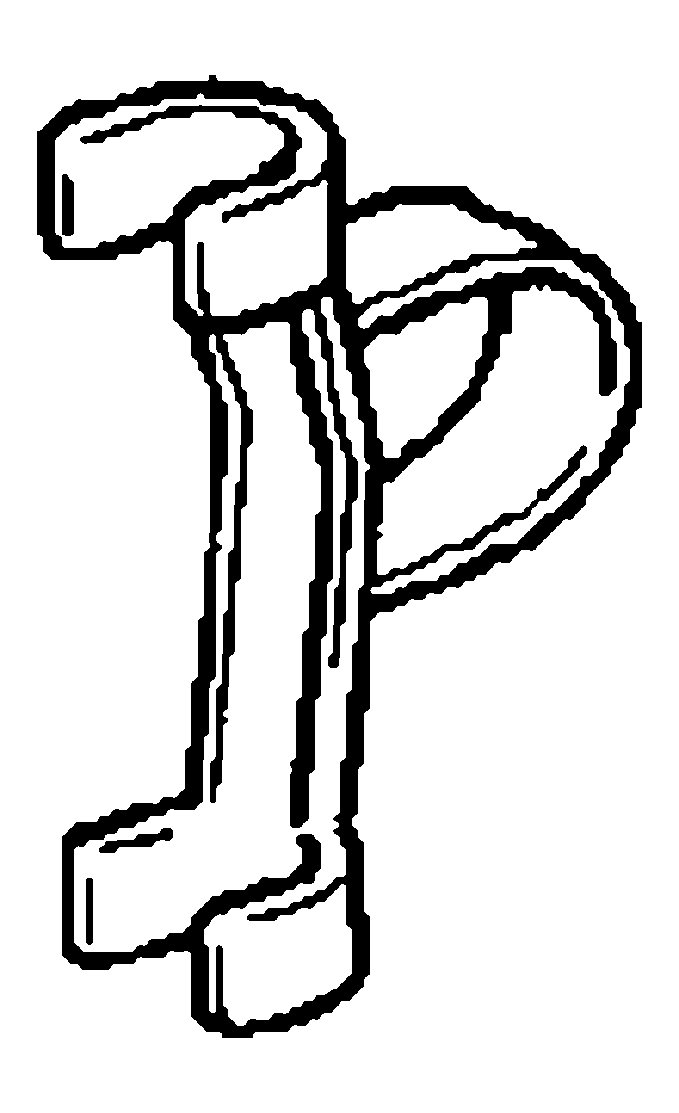

| (09268-41300) Clamp | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

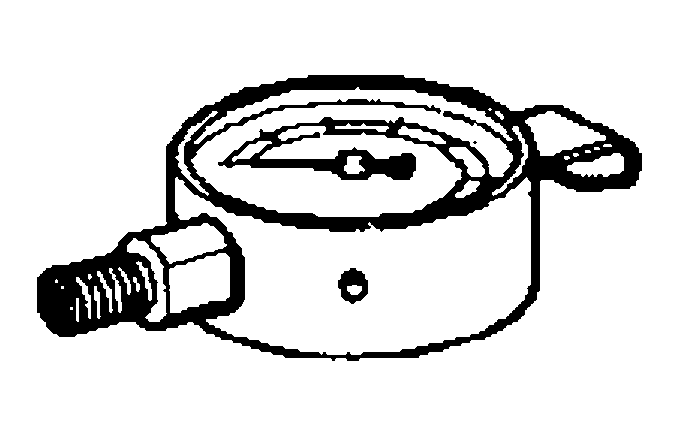

| 09268-45014 EFI Fuel Pressure Gauge | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|
| 09842-30070 Wire "F" EFI Inspection | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|
| 09842-30080 Wire "H" EFI Inspection | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
|

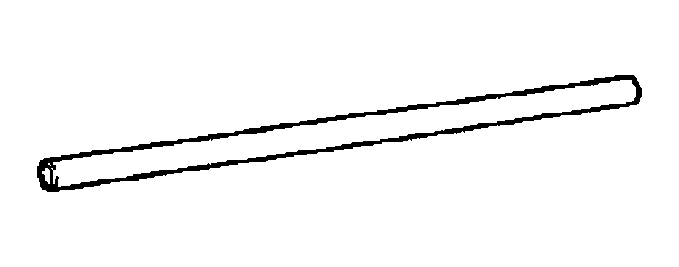

| (95336-08070) Hose | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
Recommended Tools
FUEL - RECOMMENDED TOOLS CHART
|
|

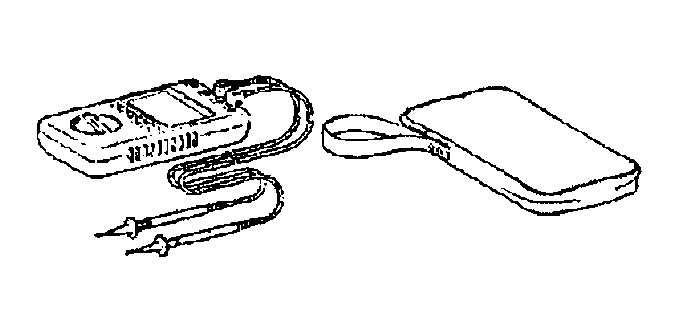

09082-00040 TOYOTA Electrical Tester | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |

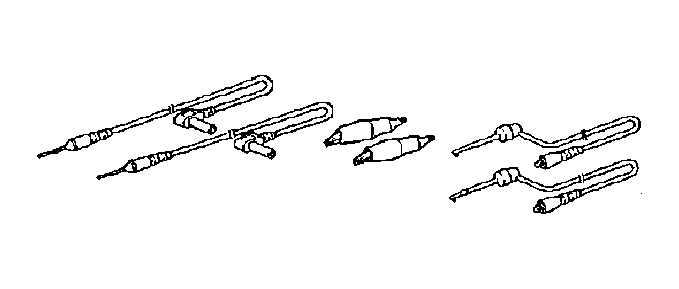

| (09083-00150) Test Lead Set | FUEL SYSTEM (2AZ-FE) (From July, 2003) FUEL SYSTEM (1MZ-FE/3MZ-FE) |
Equipment
FUEL - EQUIPMENT CHART
| Clip | |
| Measuring Flask | |
| Ohmmeter | |
| Radiator cap tester | |
| Service Wire Harness | |
| Stopwatch | |
| Torque wrench | |
| Vernier calipers |
SSM
FUEL - SSM CHART
| 08850-00065 Butyl Tape Set | FUEL PUMP ASSY (2AZ-FE) (From July, 2003) FUEL TANK ASSY (2AZ-FE) (From July, 2003) FUEL PUMP ASSY (1MZ-FE/3MZ-FE) FUEL TANK ASSY (1MZ-FE/3MZ-FE) |
