Instrument Panel/Meter: Preparation

SST

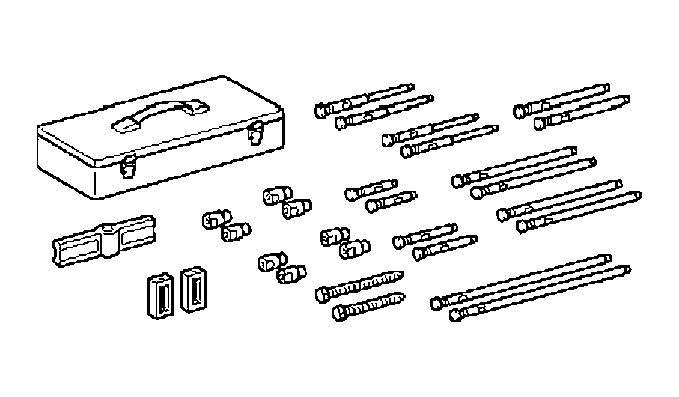

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09950-50013 Puller C Set	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

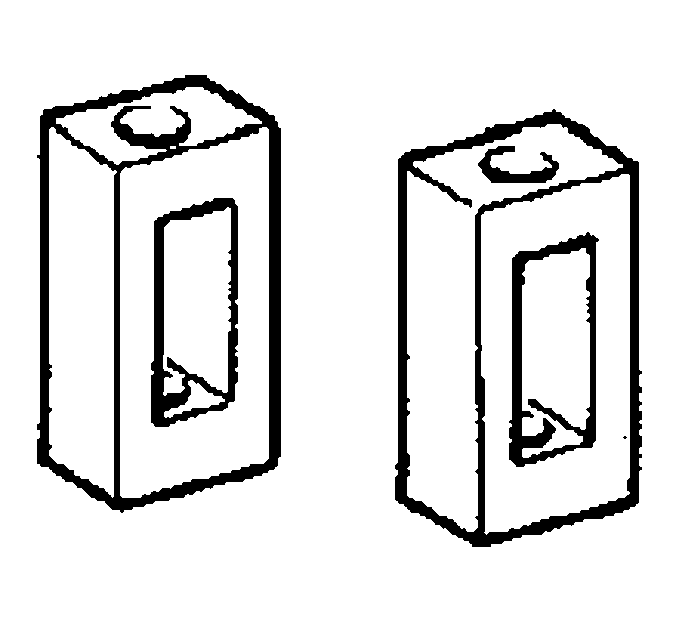

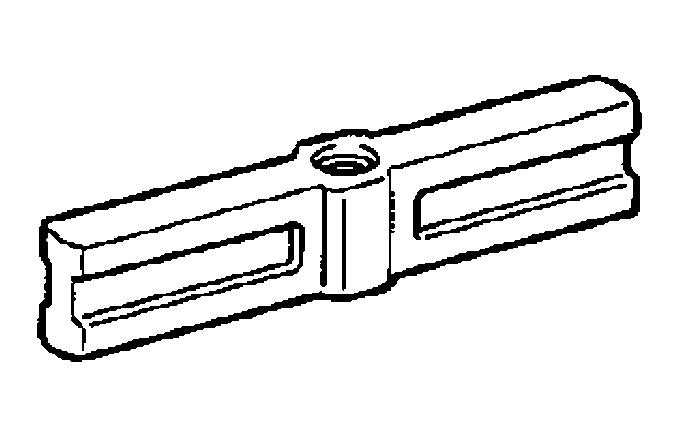

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09951-05010) Hanger 150	INSTRUMENT PANEL SAFETY PAD SUB-ASSY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09952-05010) Slide Arm	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

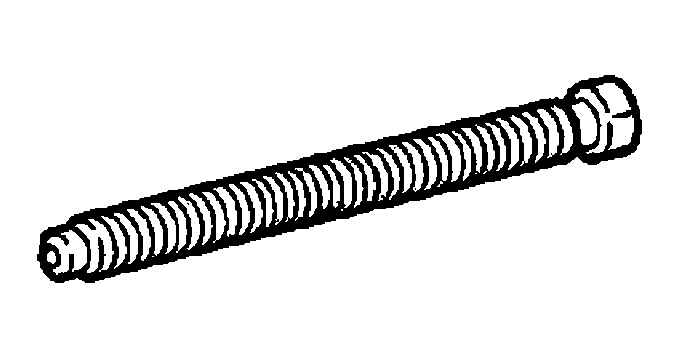

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09953-05020) Center Bolt 150	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

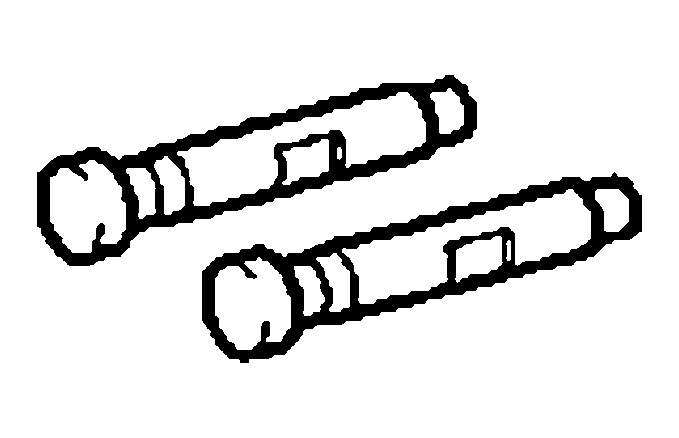

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09954-05021) Claw No.2	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

Recommended Tools

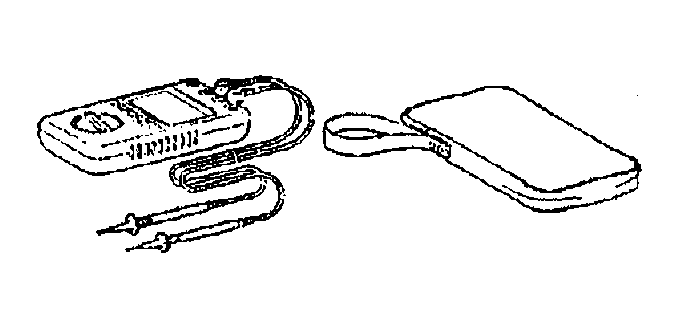

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09082-00040 TOYOTA Electrical Tester	COMBINATION METER

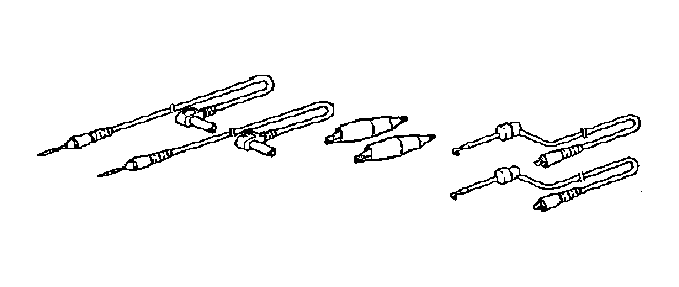

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	(09083-00150) Test Lead Set	COMBINATION METER

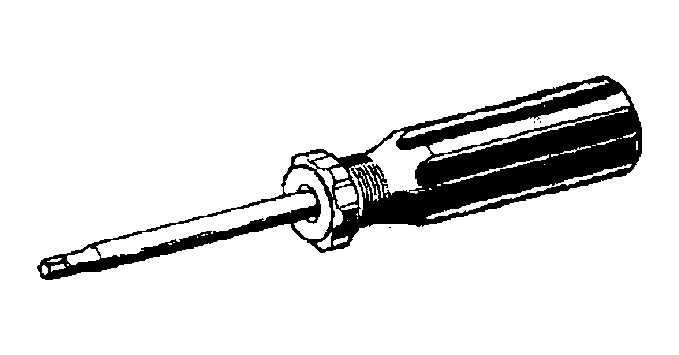

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09041-00030 Torx Driver T30	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

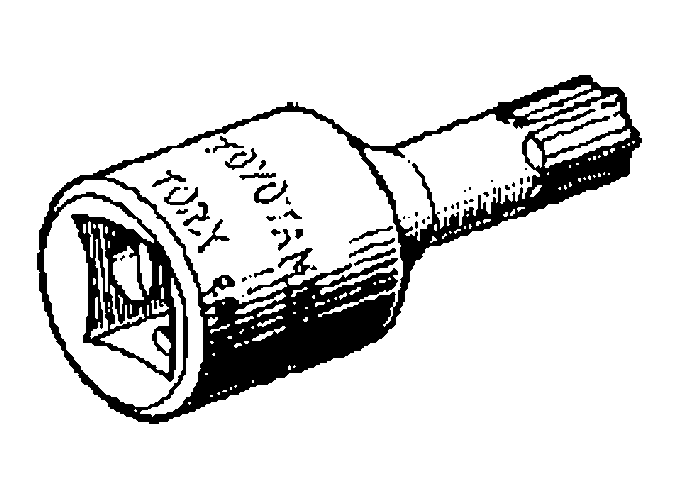

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09042-00010 Torx Socket T30	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

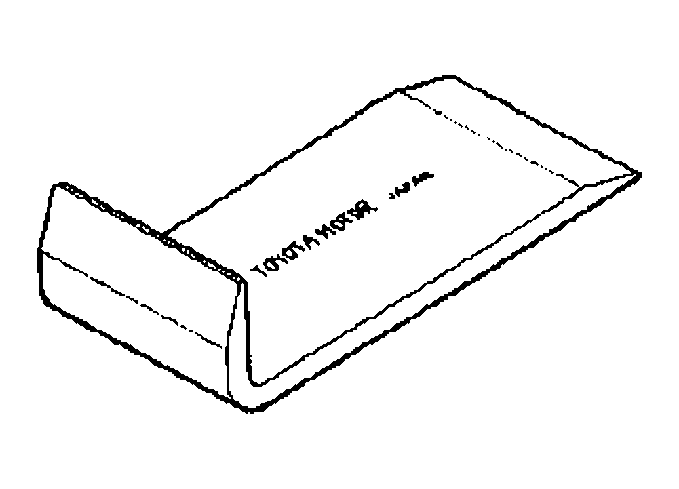

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	09070-20010 Moulding Remover	INSTRUMENT PANEL SAFETY PAD SUB-ASSY

Torx is a registered trademark of Textron Inc.

Equipment
