Air Conditioning: Notes

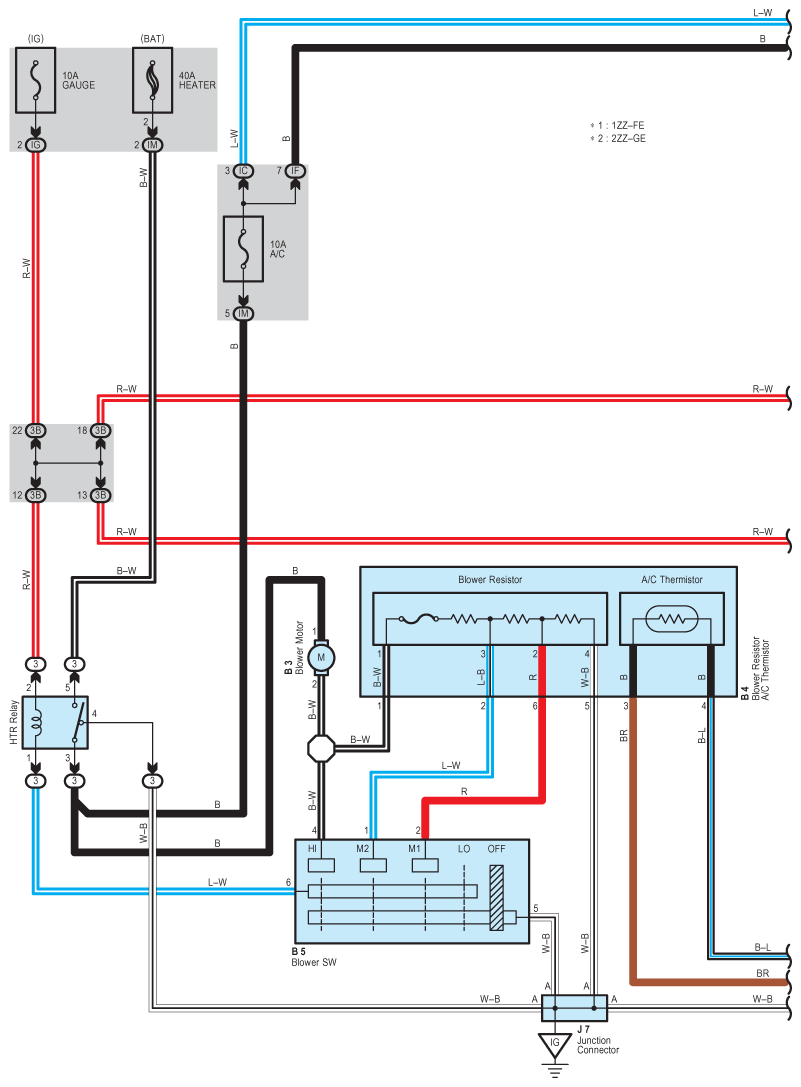

Fig 1: Air Conditioning System Wiring Diagram (1 Of 2)
G08779744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

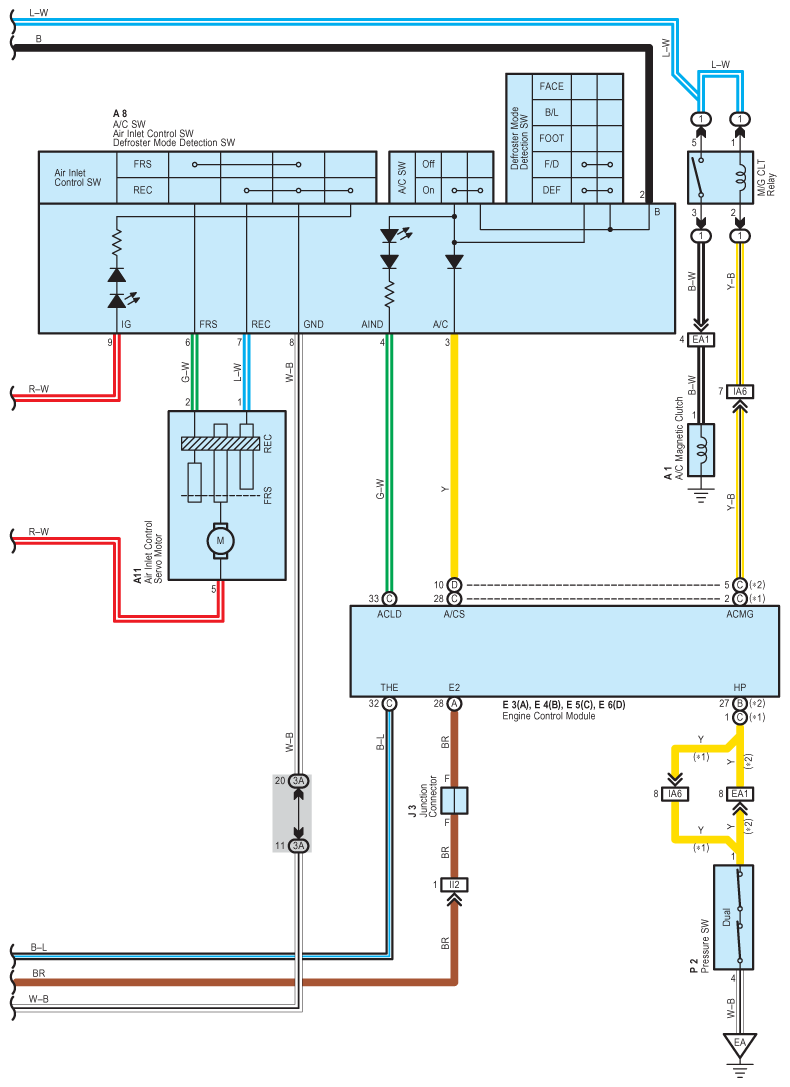

Fig 2: Air Conditioning System Wiring Diagram (2 Of 2)
G08779745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
