Audio System without Stereo Component Amplifier: Notes

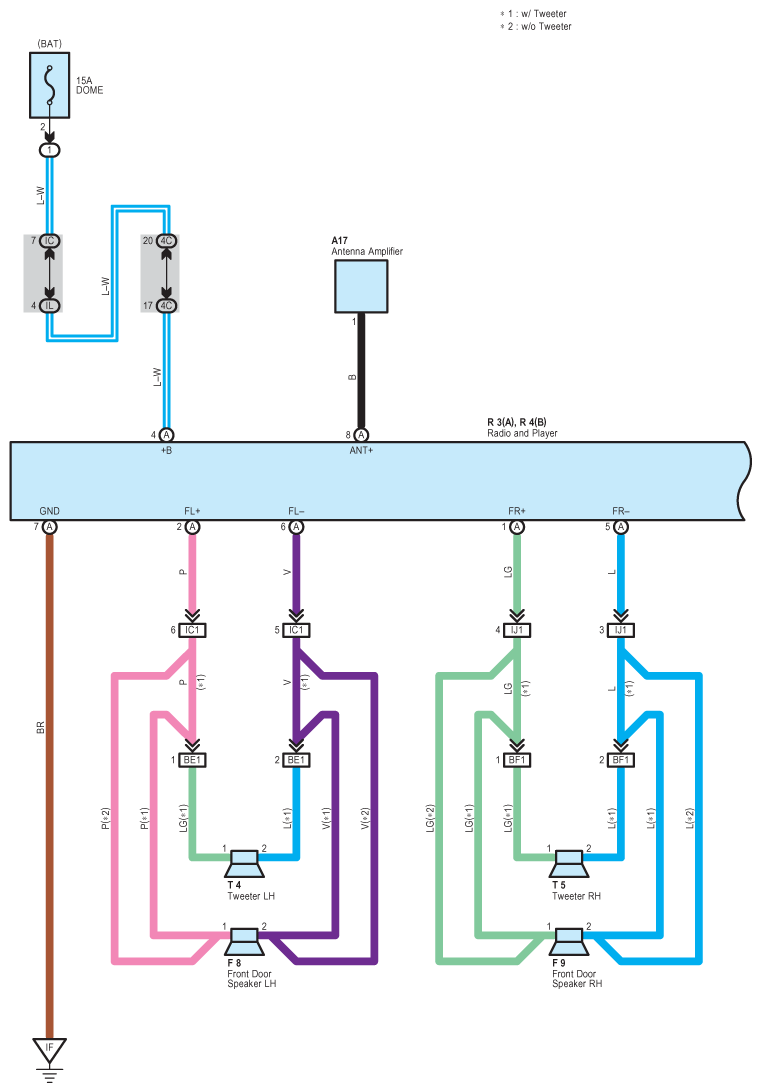

Fig 1: Audio System (Without Stereo Component Amplifier) Wiring Diagram (1 Of 2)
G08779737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

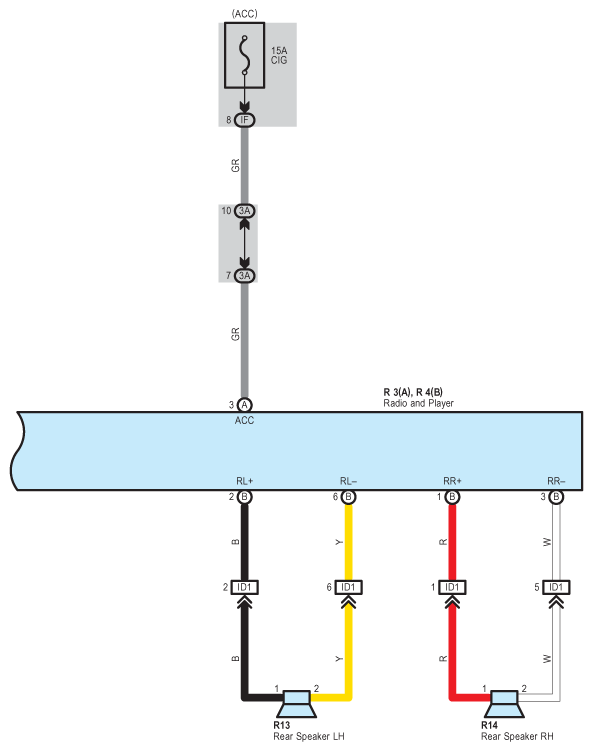

Fig 2: Audio System (Without Stereo Component Amplifier) Wiring Diagram (2 Of 2)
G08779738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
