OEM System Circuits: ECT: Notes

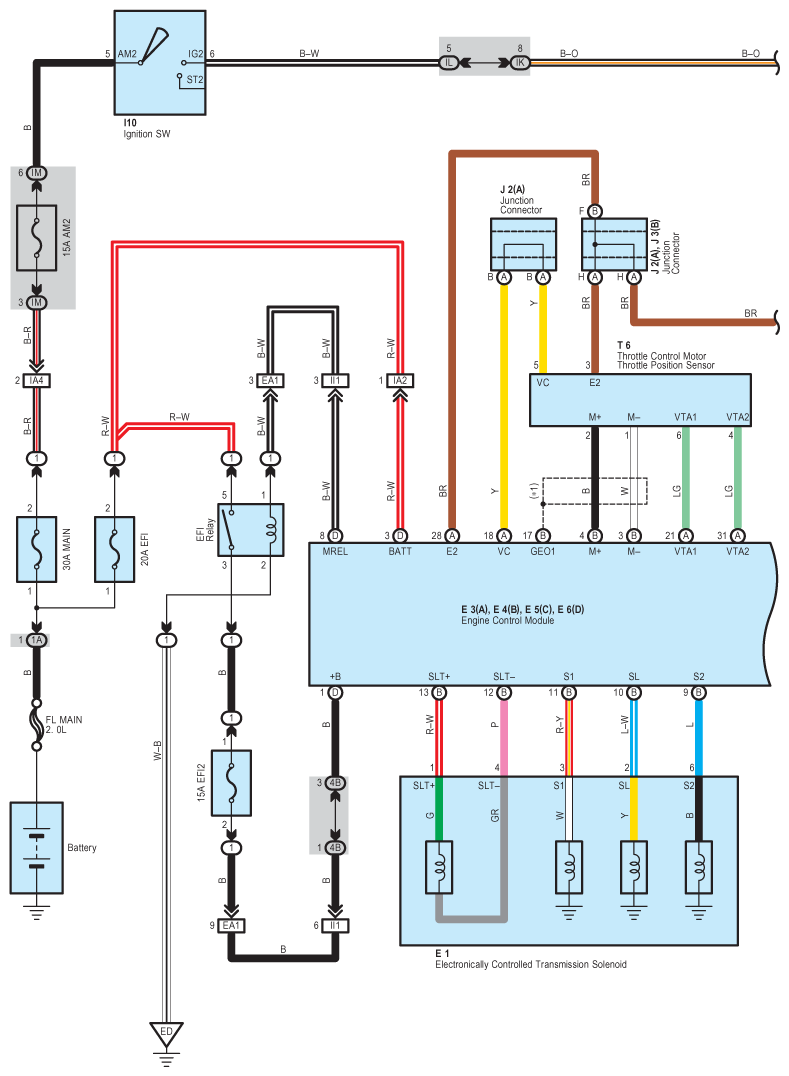

Fig 1: ECT System Wiring Diagram (1 Of 3)
G08779709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

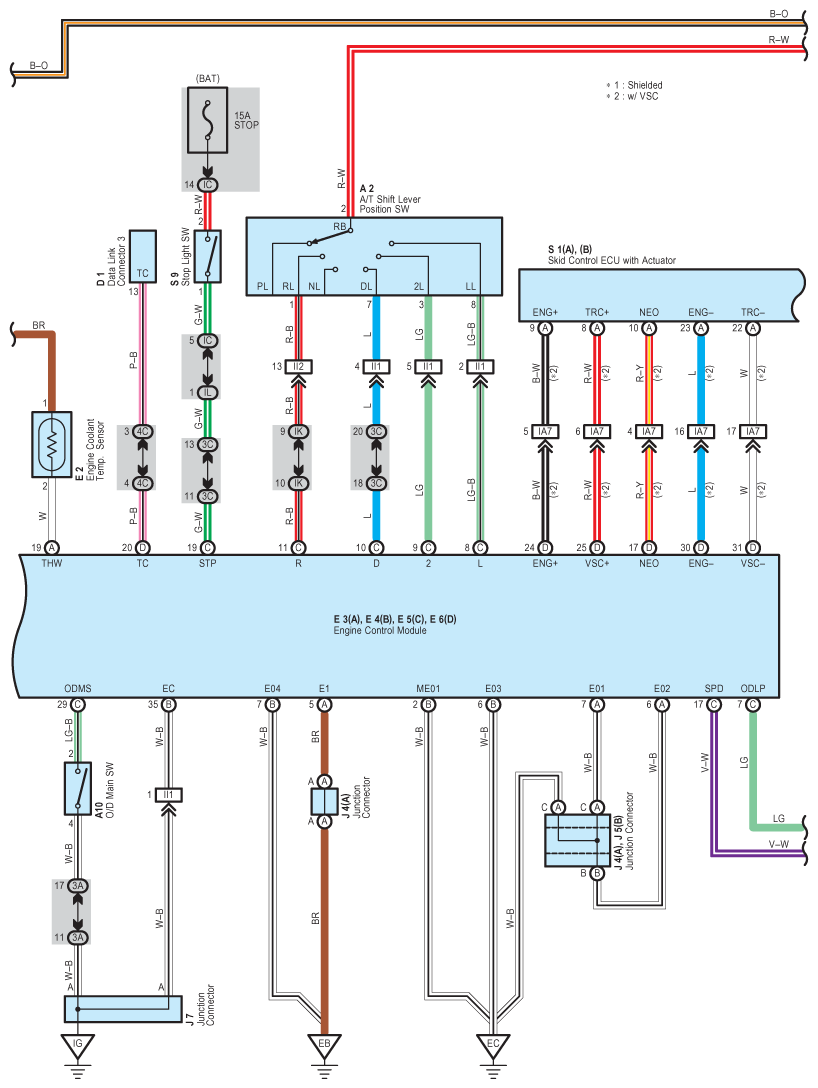

Fig 2: ECT System Wiring Diagram (2 Of 3)
G08779710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

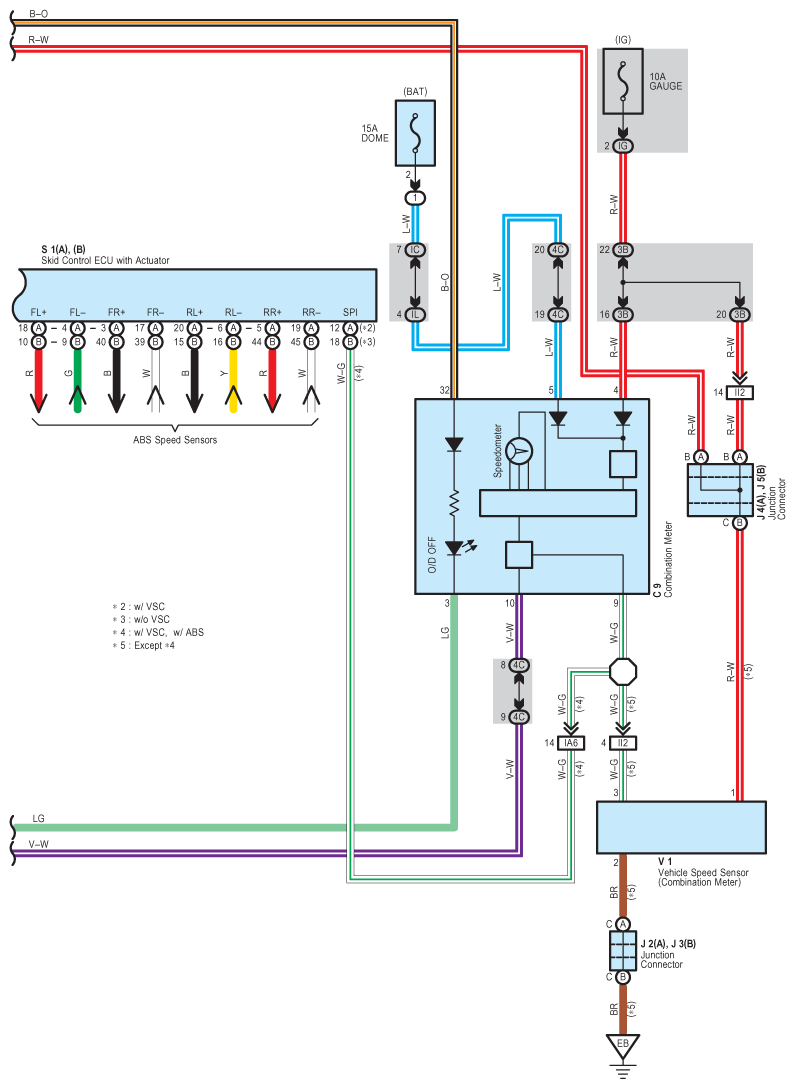

Fig 3: ECT System Wiring Diagram (3 Of 3)
G08779711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
