Multiplex Communication System - CAN: Notes

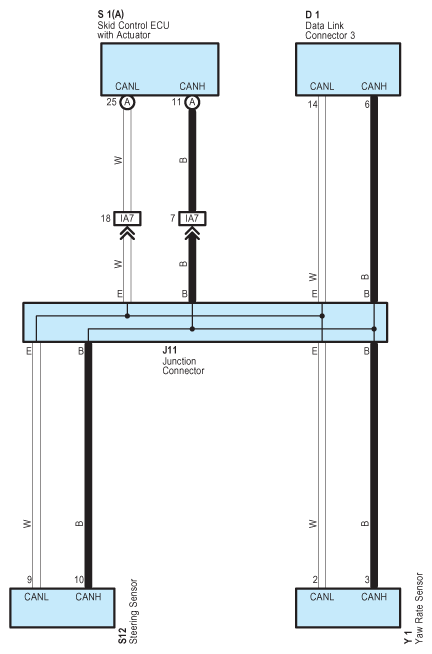

Fig 1: Multiplex Communication (CAN) System Wiring Diagram

G08779722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
