Home >> Toyota >> 2006 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Multi-Display without Navigation System >> Notes

Multi-Display without Navigation System: Notes

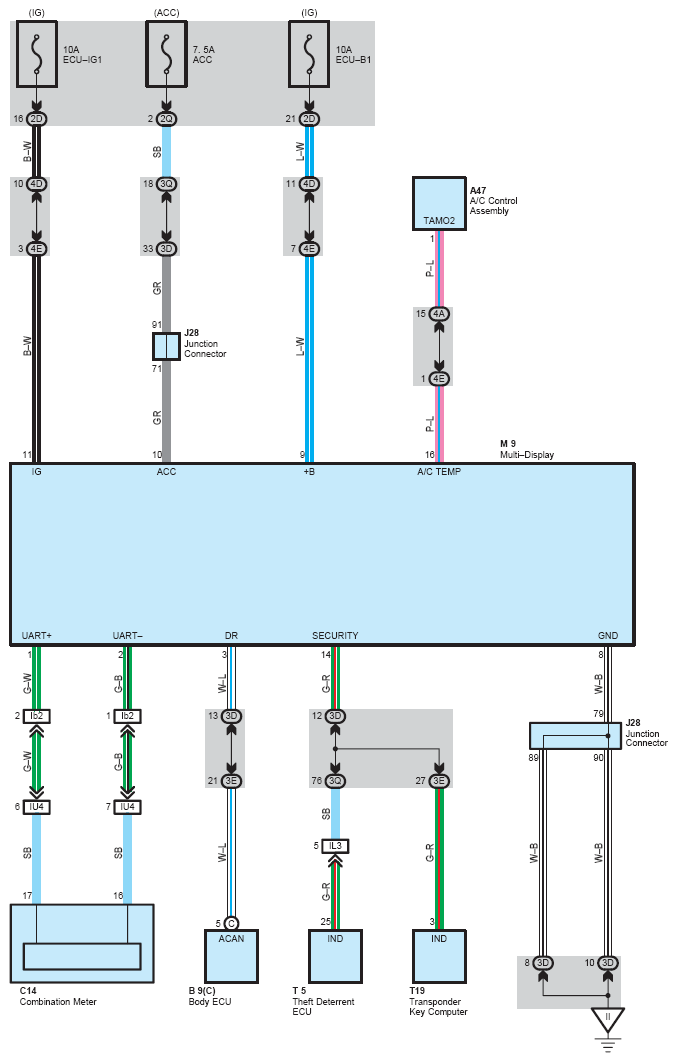

Fig 1: Multi-Display (Without Navigation) System Wiring Diagram

G08794063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
