Fuel Pump: Components

Fig 1: Exploded View Of Fuel Pump Components & Replacements (1 Of 3)
G04436028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

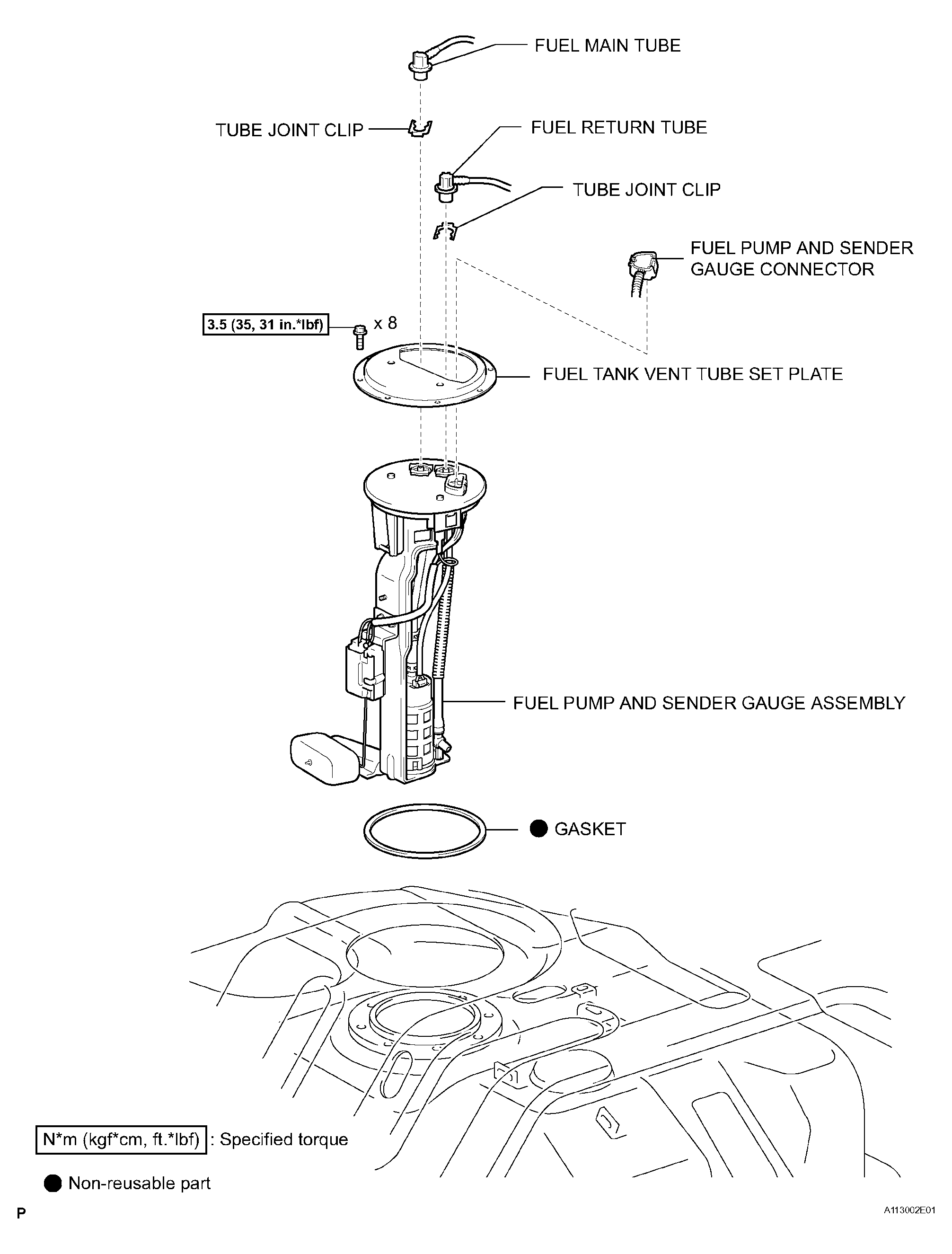

Fig 2: Exploded View Of Fuel Pump Components & Replacements (2 Of 3)
G04436029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

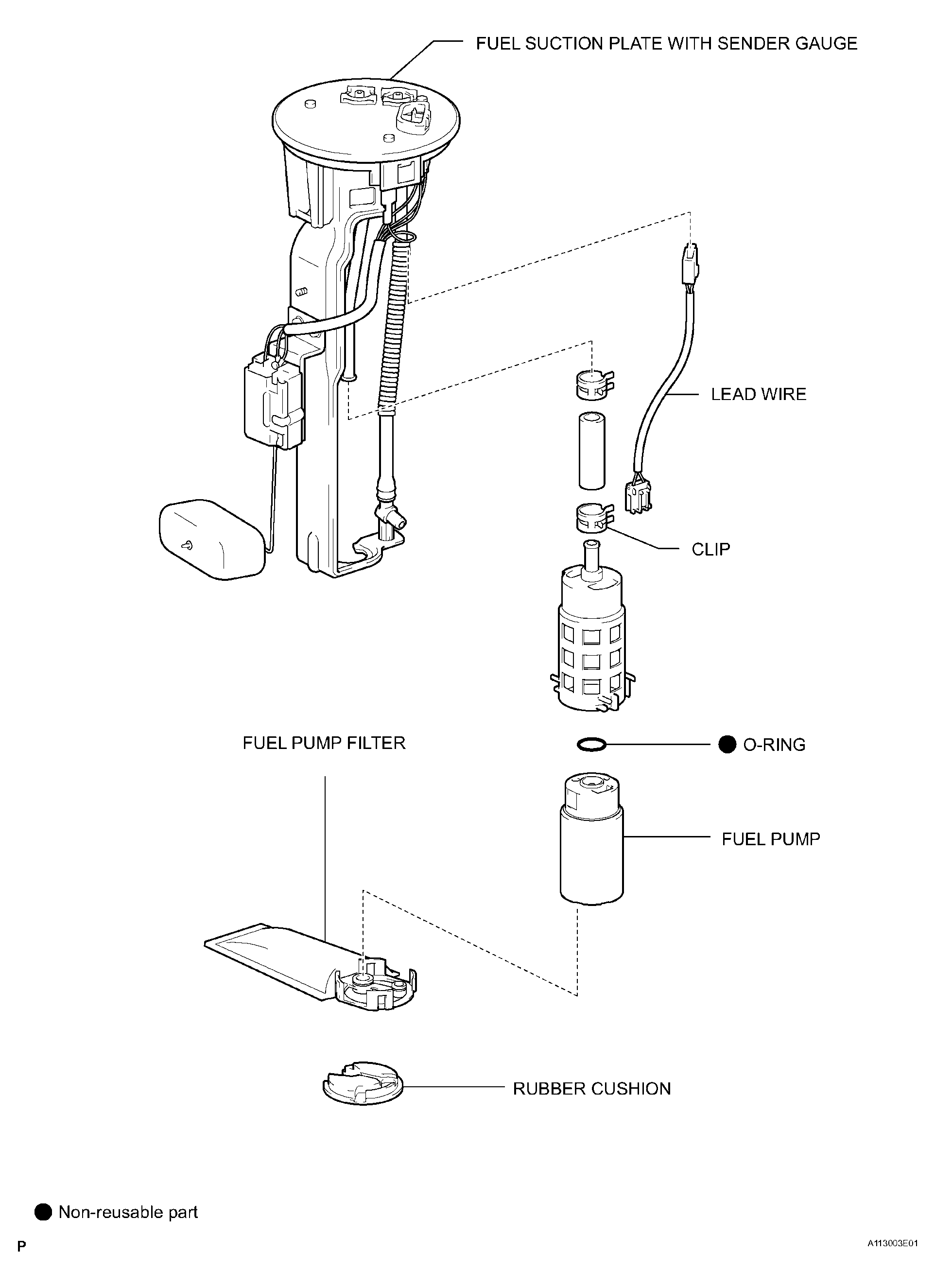

Fig 3: Exploded View Of Fuel Pump Components & Replacements (3 Of 3)
G04436030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
