Camshaft Position Sensor: Components

Fig 1: Identifying Camshaft Position Sensor Components & Replacements (1 Of 2)
G04435522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

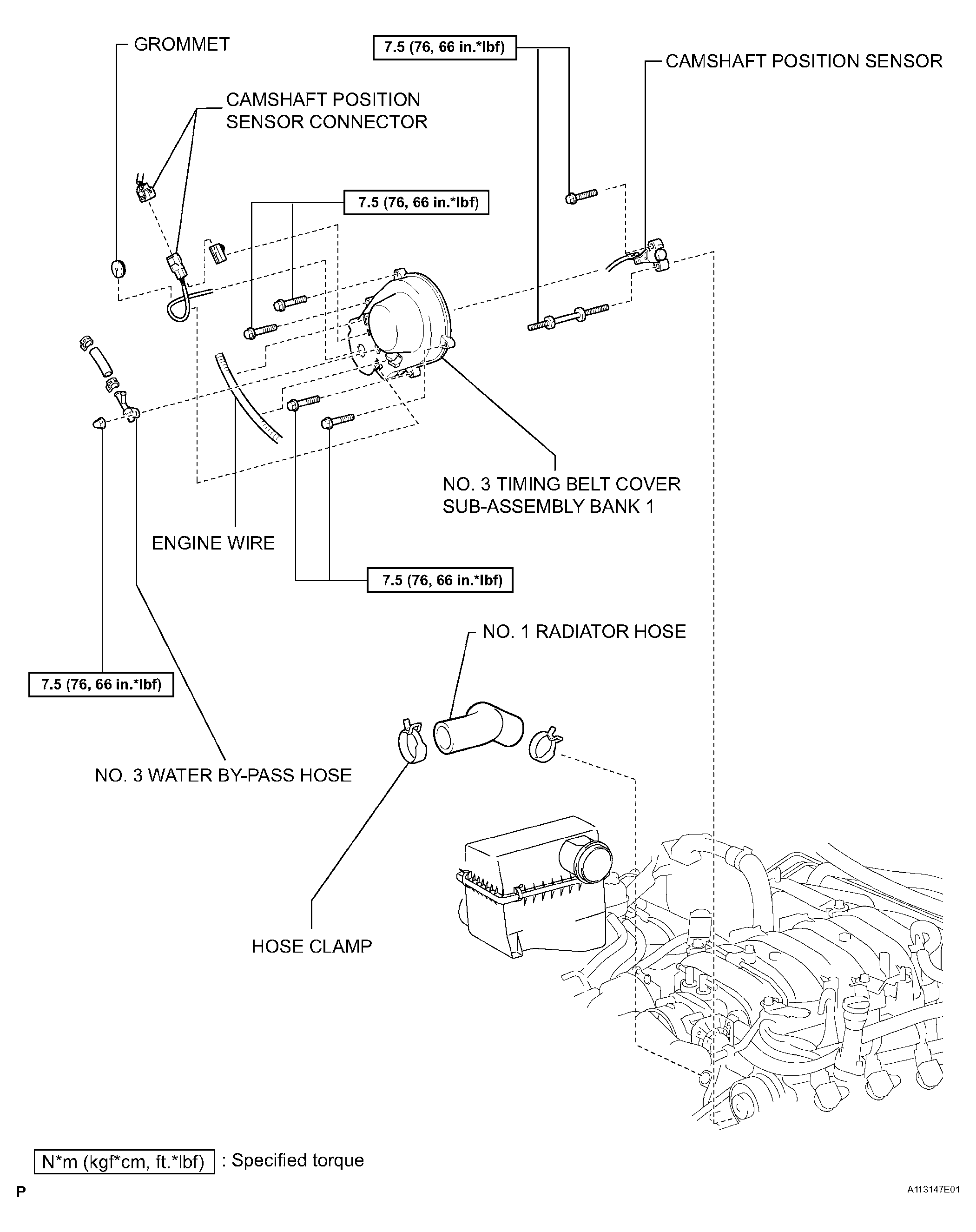

Fig 2: Identifying Camshaft Position Sensor Components & Replacements (2 Of 2)
G04435523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
