Camshaft Timing Oil Control Valve Assembly: Components

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Components & Replacements (1 Of 2)
G04435514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

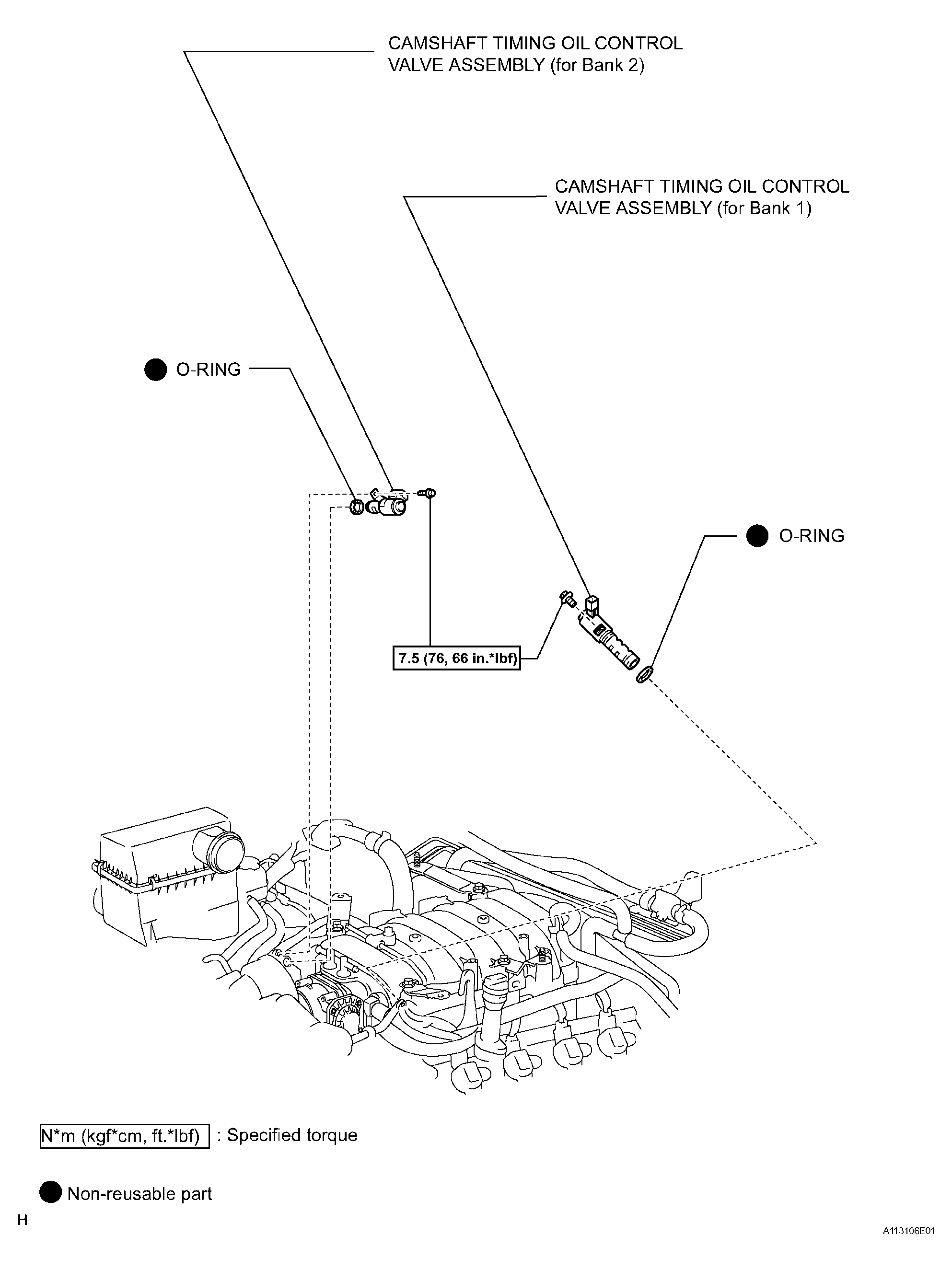

Fig 2: Identifying Camshaft Timing Oil Control Valve Assembly Components & Replacements (2 Of 2)
G04435515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
