Engine Control System - System And Component Testing: ECM: Components

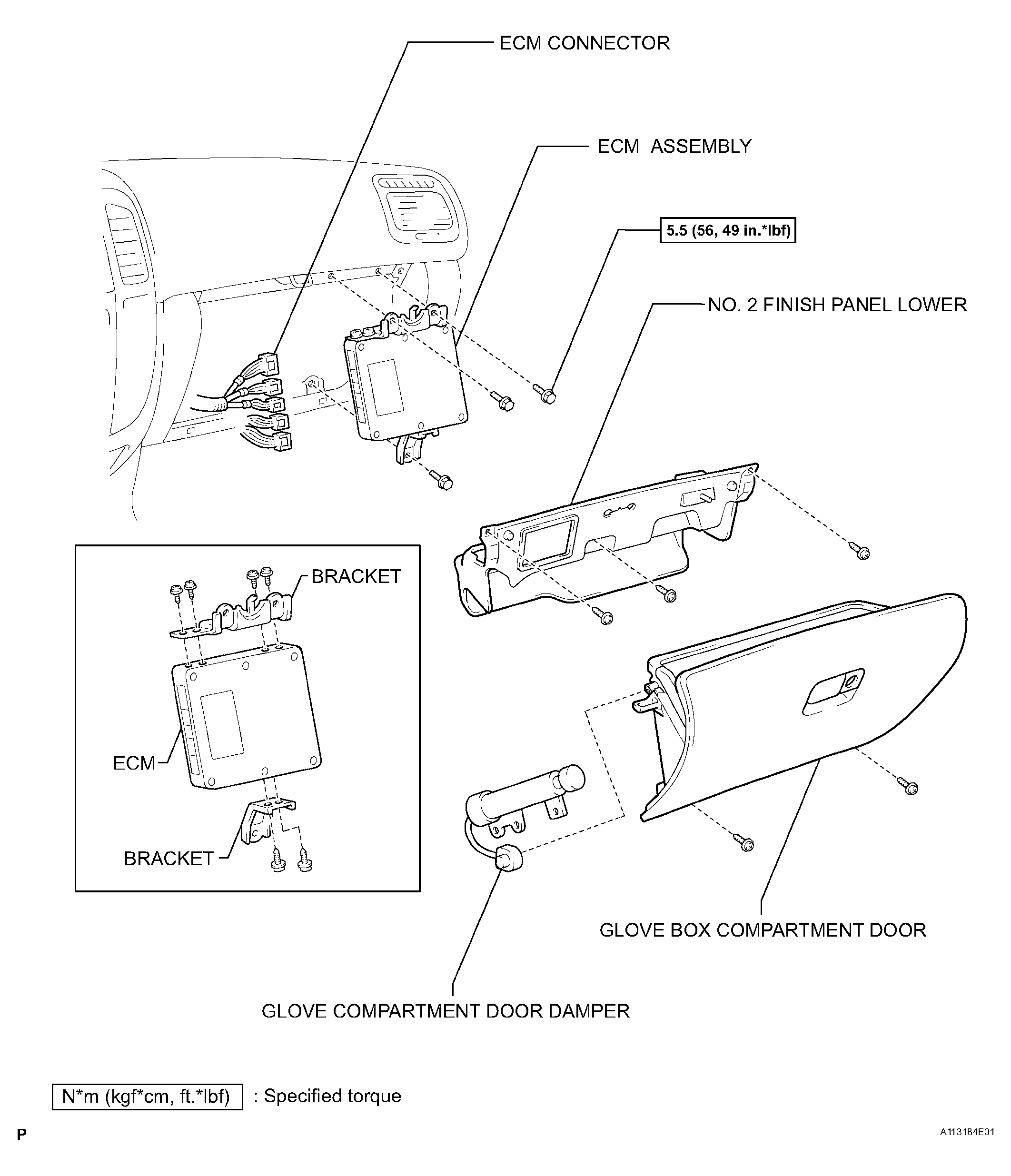

Fig 1: Identifying ECM Components & Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
