Engine Coolant Temperature Sensor: Components

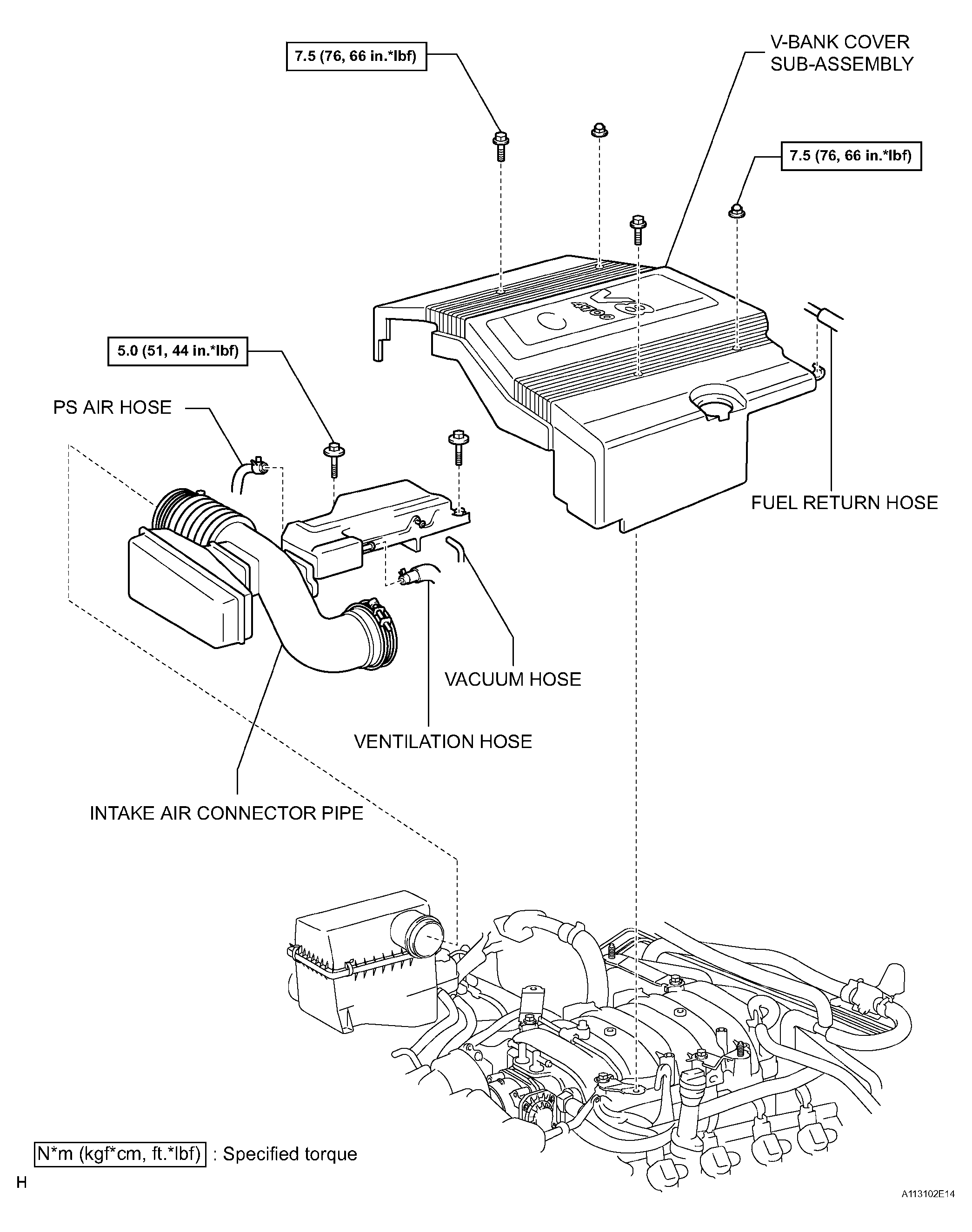

Fig 1: Identifying Engine Coolant Temperature Sensor Components & Replacements (1 Of 2)
G04435530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

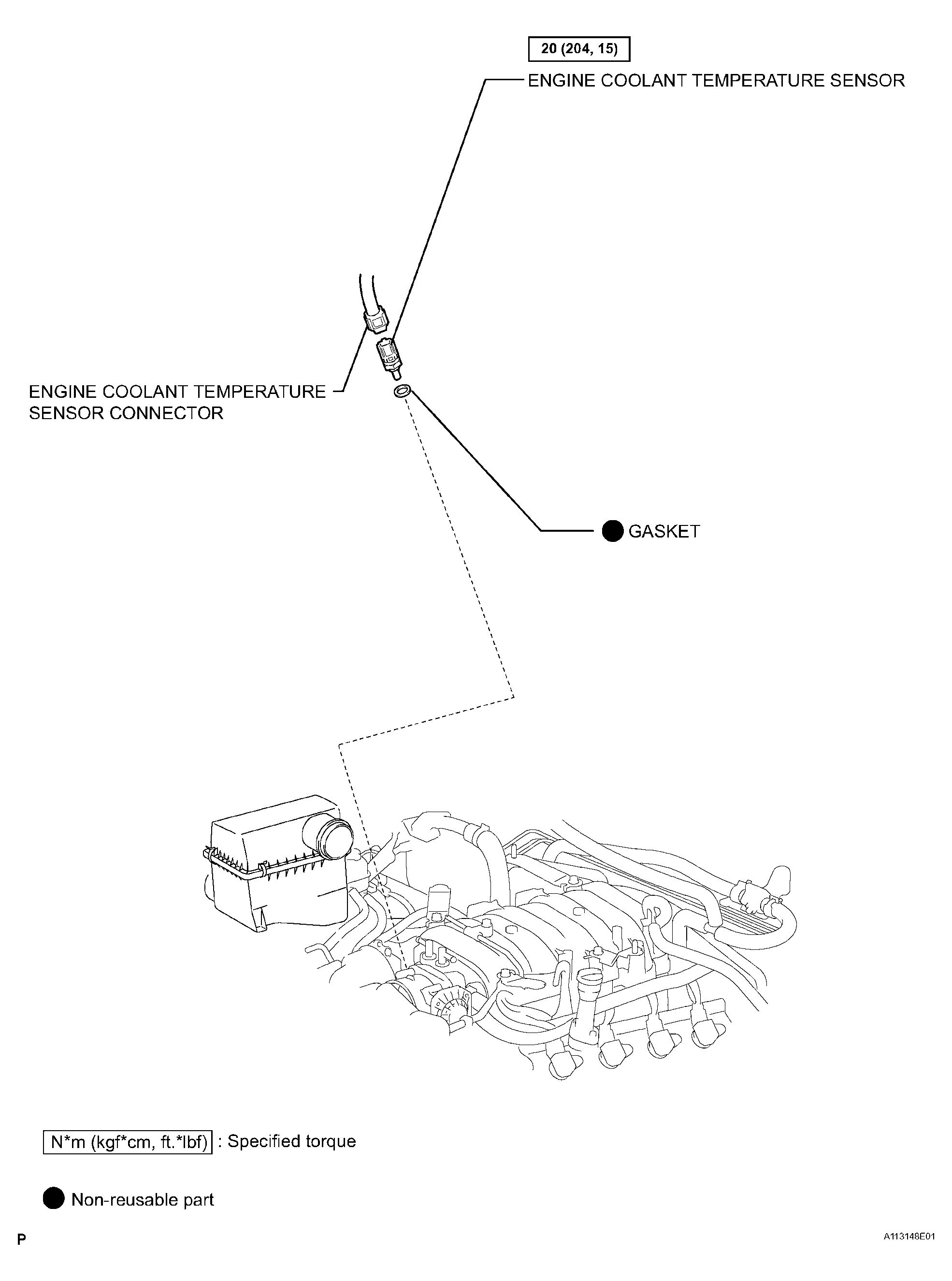

Fig 2: Identifying Engine Coolant Temperature Sensor Components & Replacements (2 Of 2)
G04435531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
