VVT Sensor: Components

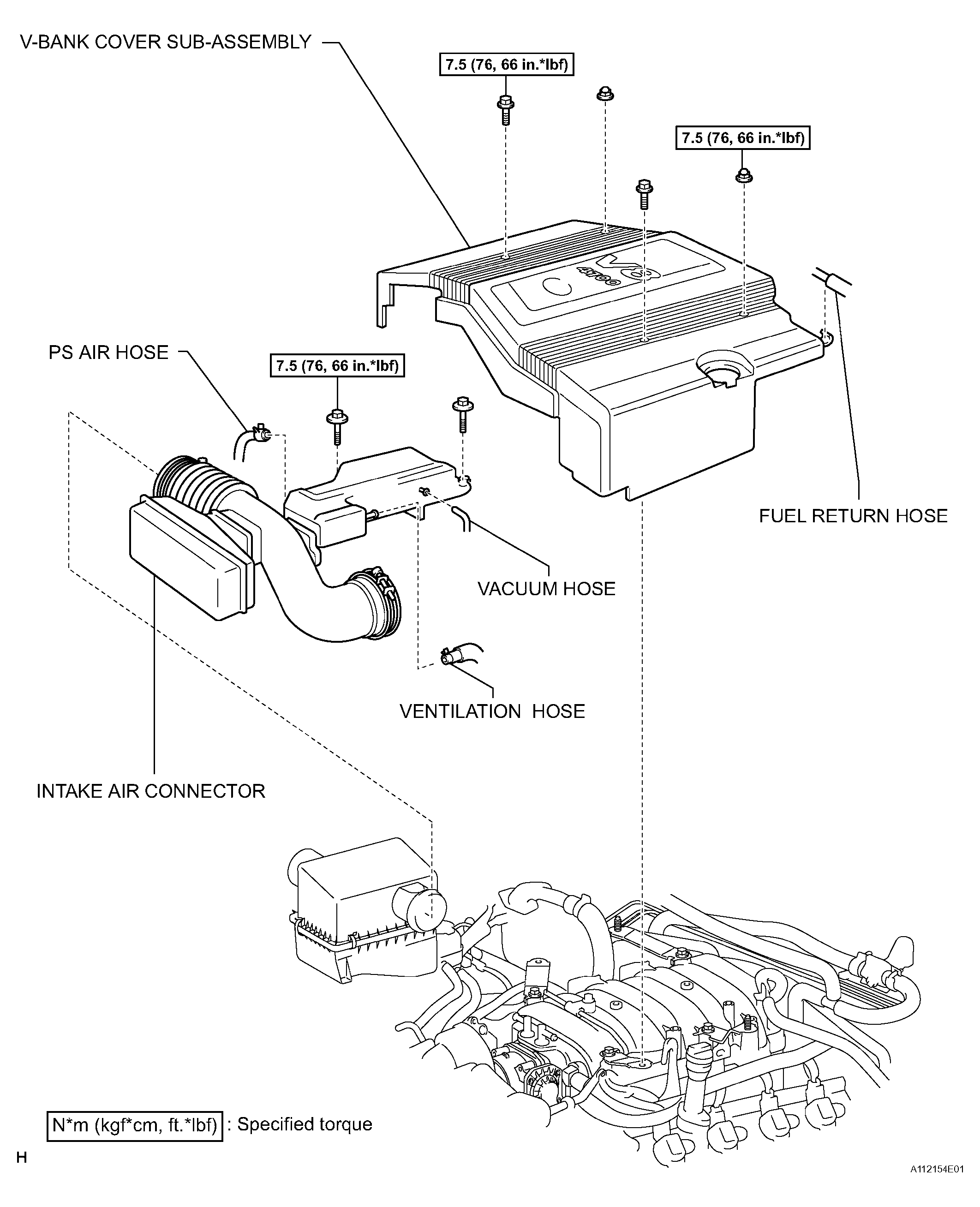

Fig 1: Identifying VVT Sensor Components & Replacements (1 Of 3)
G04436343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

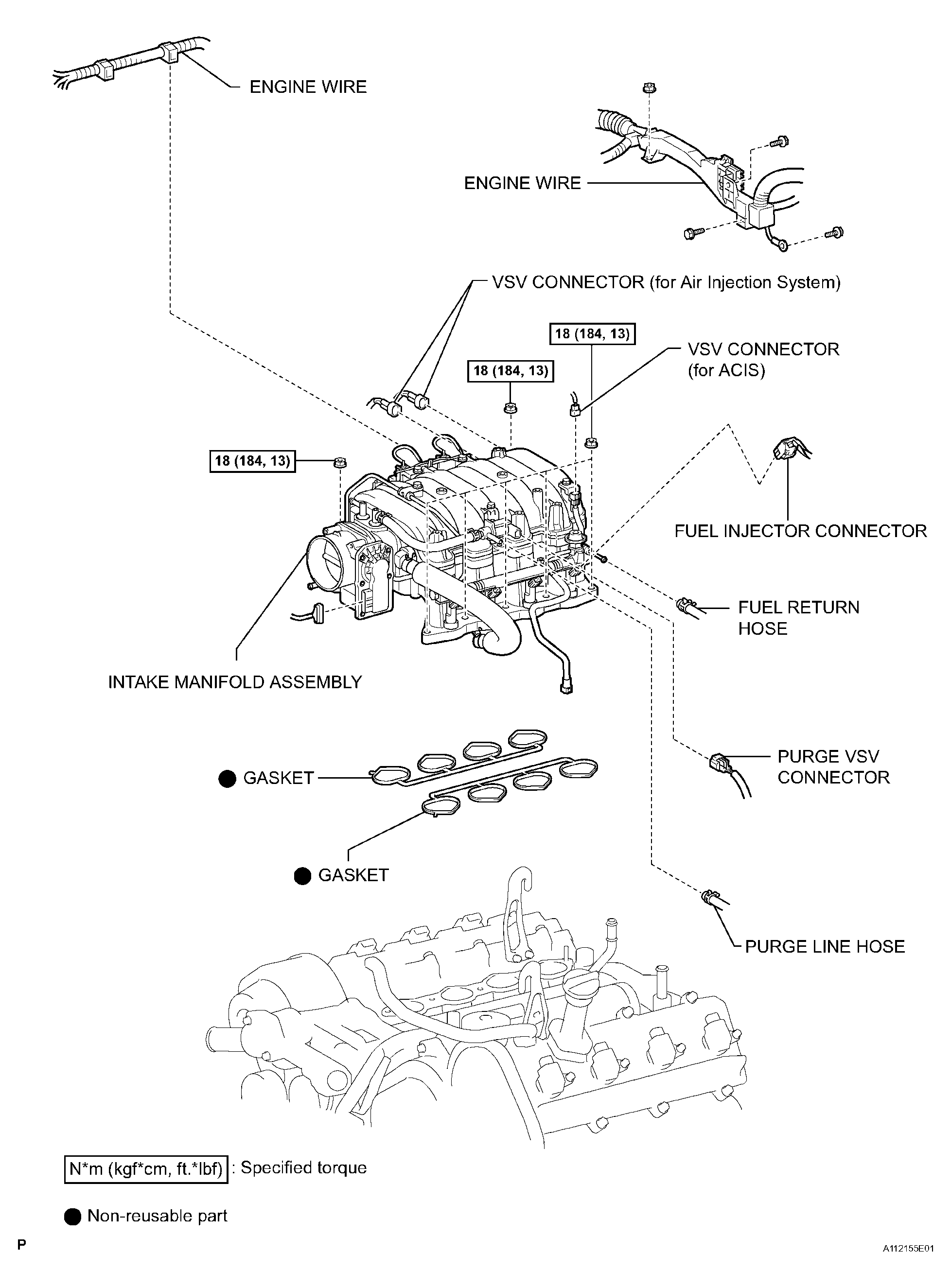

Fig 2: Identifying VVT Sensor Components & Replacements (2 Of 3)
G04436344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

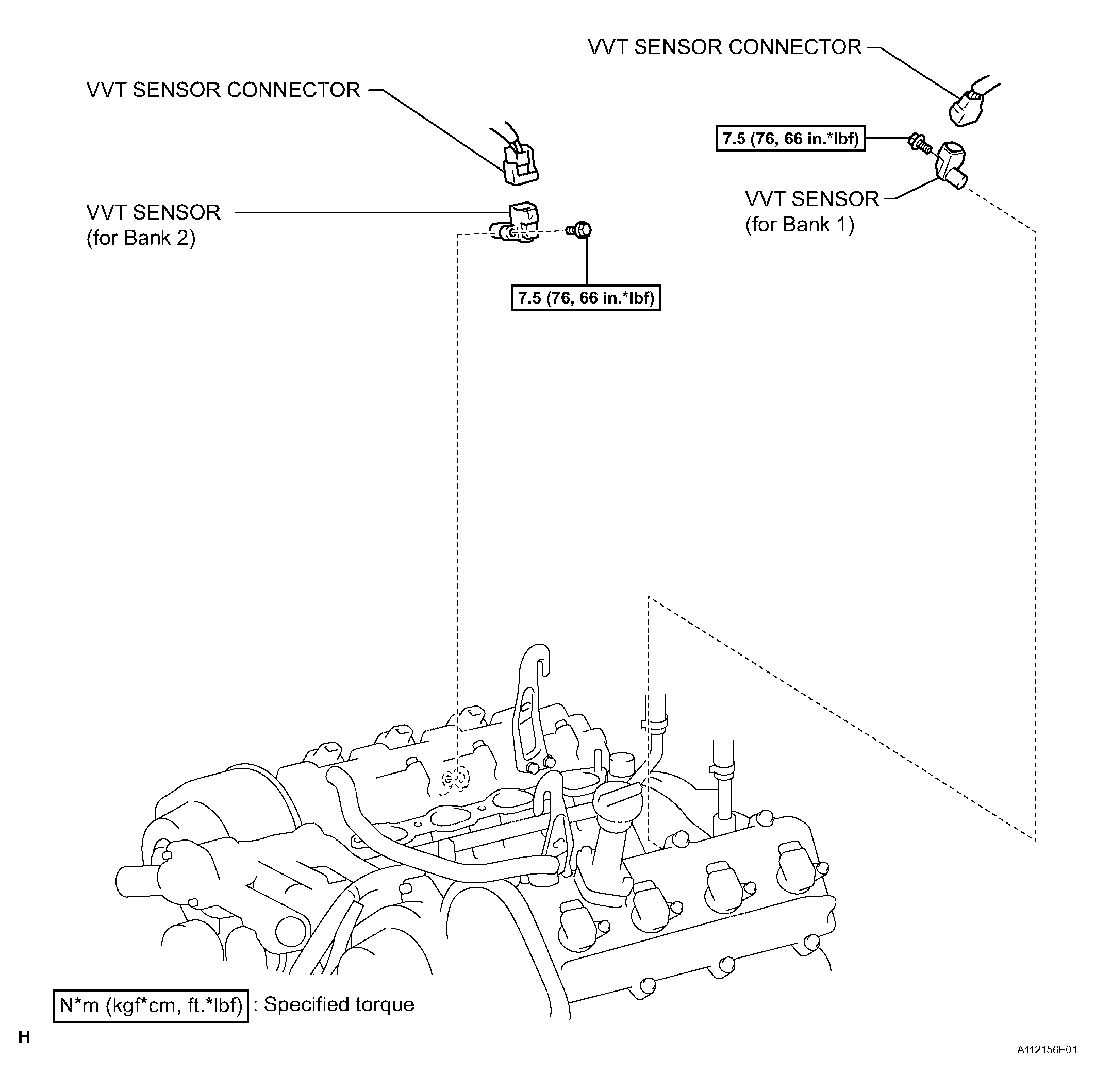

Fig 3: Identifying VVT Sensor Components & Replacements (3 Of 3)
G04436345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
