Damaging Force Control Actuator: Components

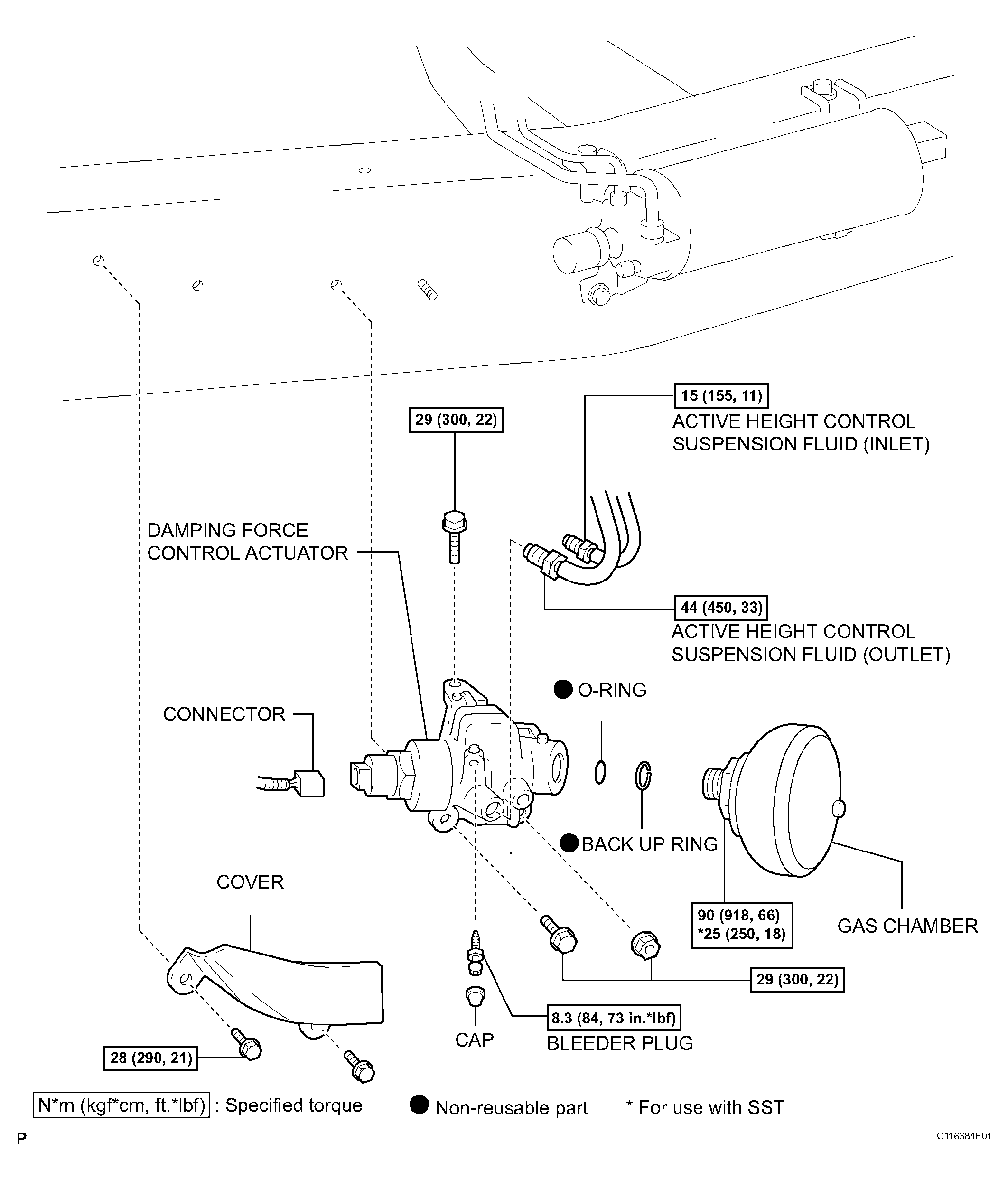

Fig 1: Damaging Force Control Actuator Replacement Components With Torque Specifications

G04437518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
