Home >> Toyota >> 2006 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Mirror >> Outer Rear View Mirror >> Components

Outer Rear View Mirror: Components

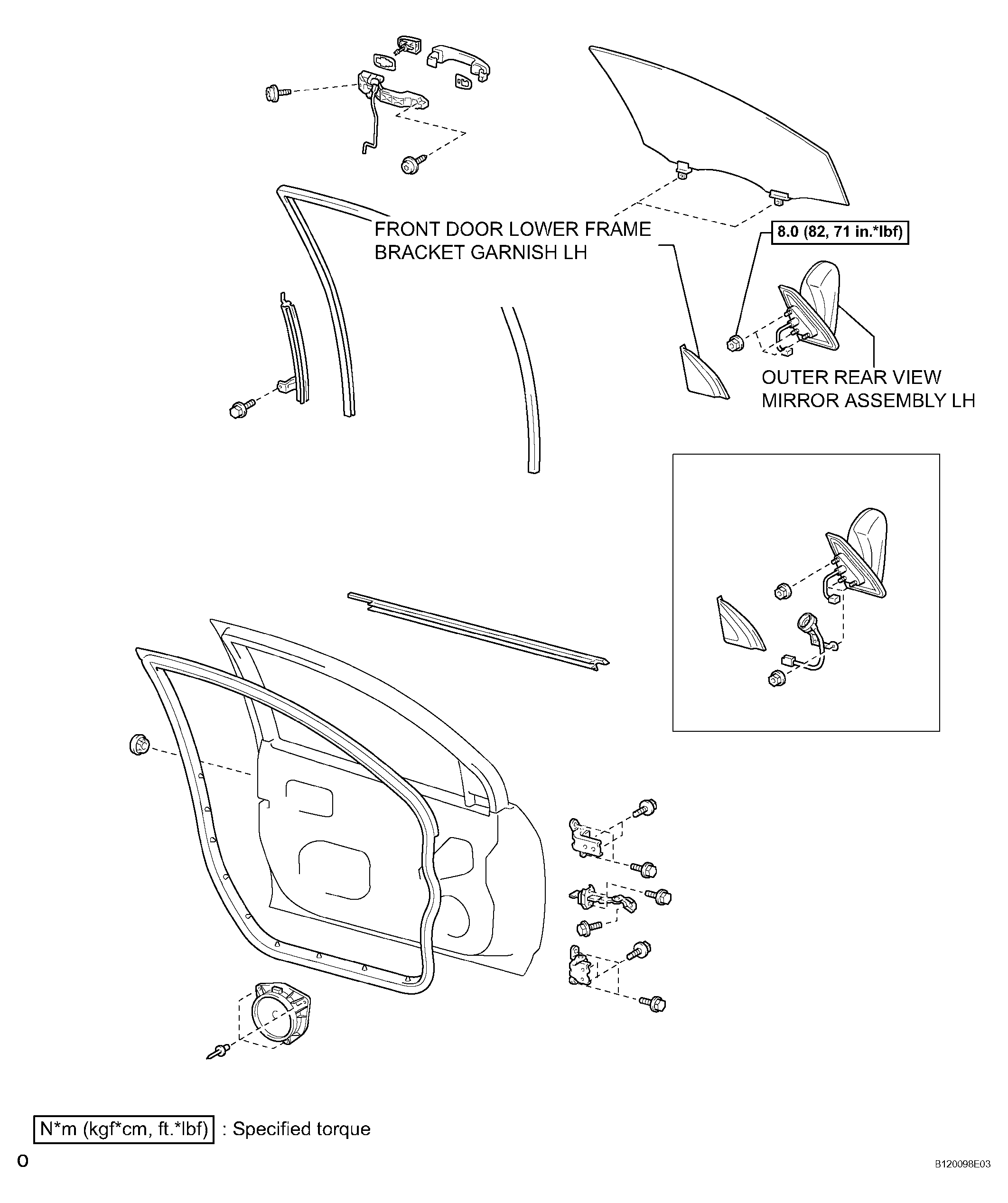

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications
G04466835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Outer Rear View Mirror Components
G04466836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
