Rear Power Window Switch: Inspection

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear Side)
    1. Measure the resistance of the rear regulator switch.

      Standard resistance

      TERMINAL CONNECTION AND SPECIFIED CONDITION REFERENCE

      Switch Condition Terminal Connection Specified Condition
      UP SD (1) - D (2) Below 1 Ω
      B (3) - U (4)
      OFF SD (1) - D (2) Below 1 Ω
      U (4) - SU (5)
      DOWN D (2) - B (3) Below 1 Ω
      U (4) - SU (5)

      If the result is not as specified, replace the regulator switch.

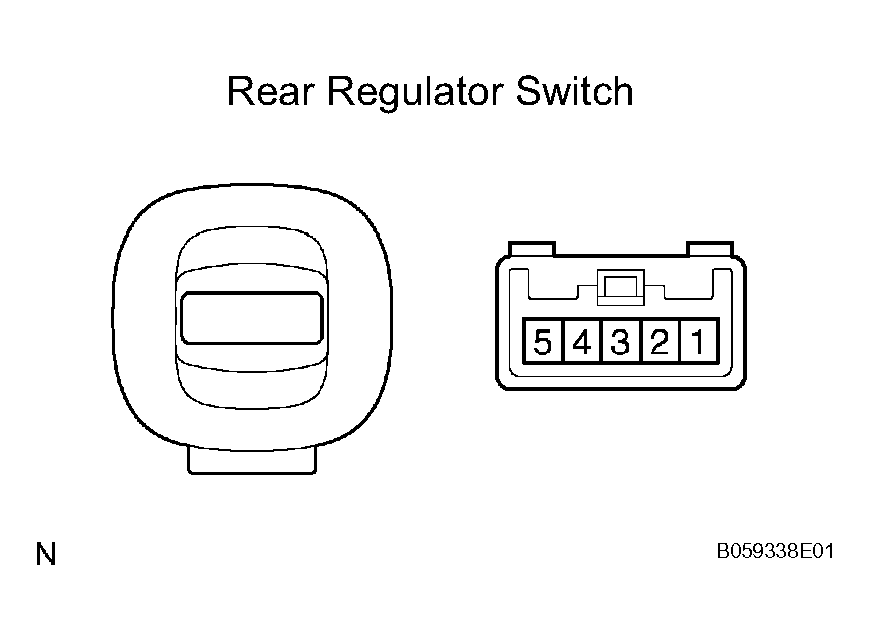

      Fig 1: Inspecting Power Window Regulator Switch Assembly (Rear Side)
      G04466788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
