Combination Meter: Disassembly

  1. REMOVE COMBINATION METER GLASS
    1. Remove the trip knob.
    2. Disengage the 10 claws and remove the window plate.

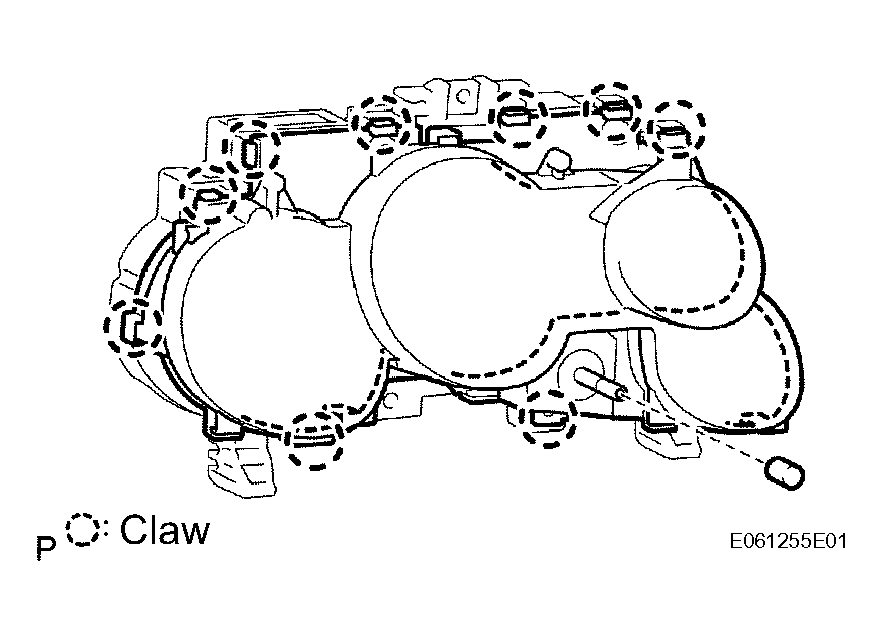

      Fig 1: Removing Window Plate
      G04466652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 8 claws and remove the combination meter glass.

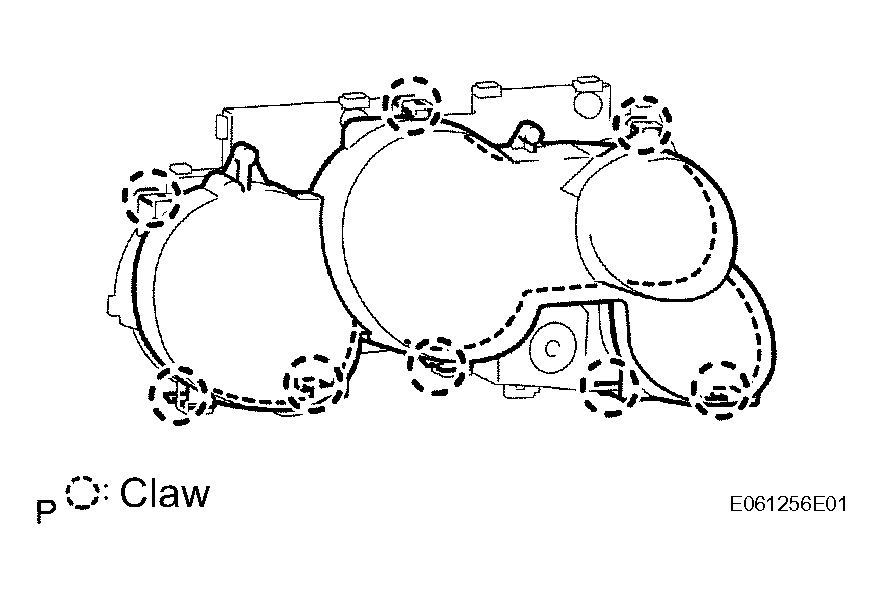

      Fig 2: Removing Combination Meter Glass
      G04466653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
