Automatic Transaxle Unit: Components

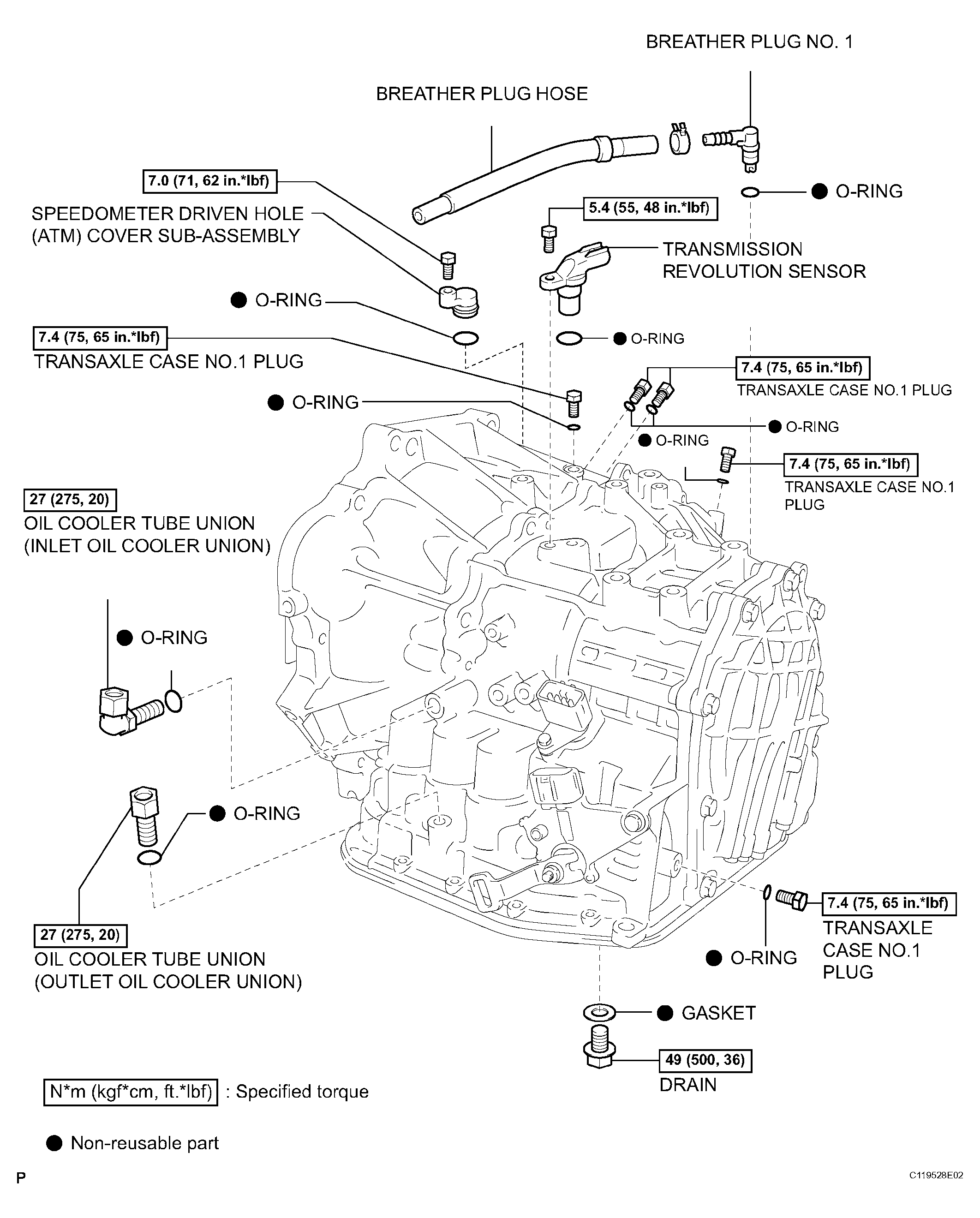

Fig 1: Automatic Transaxle Unit Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

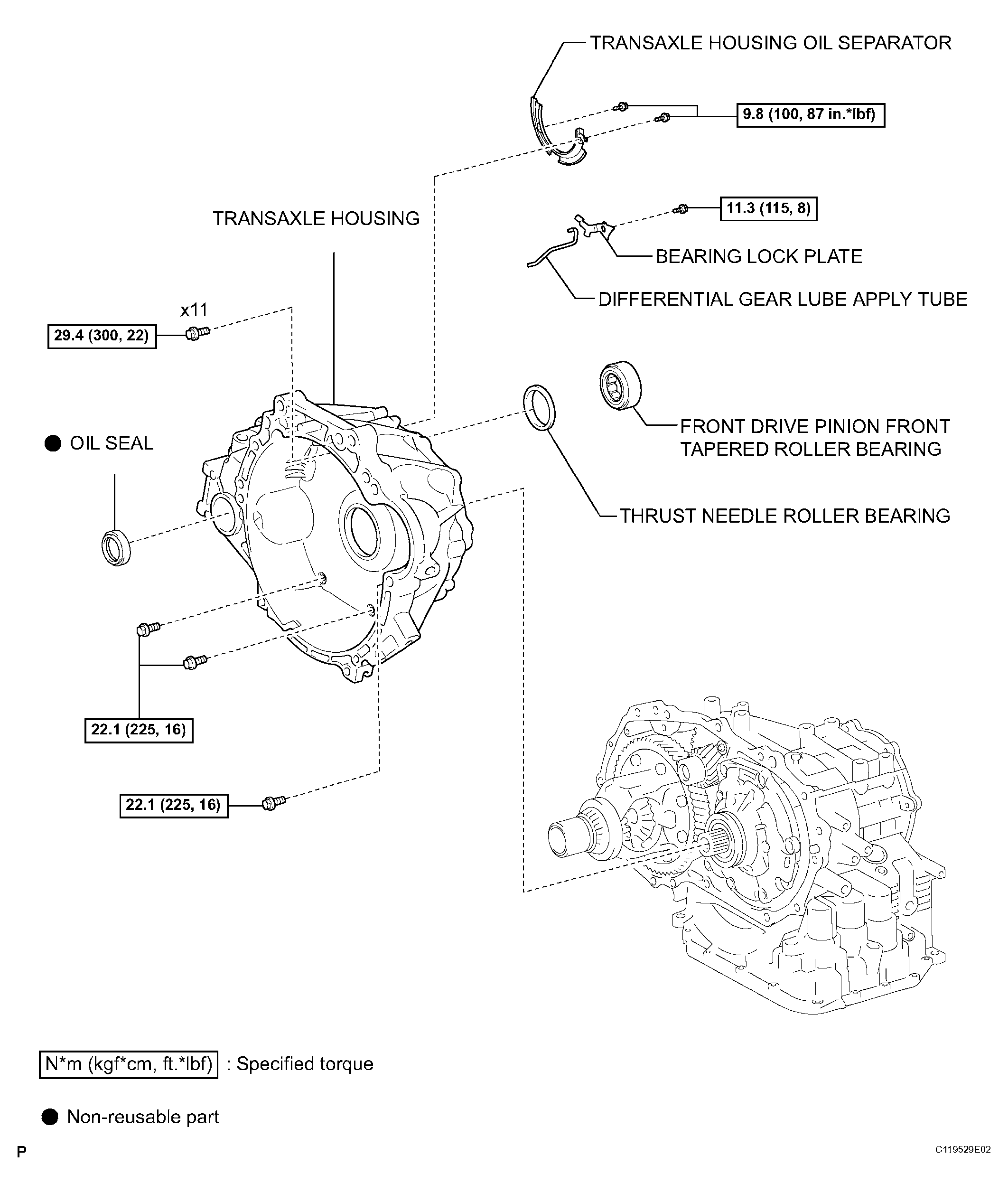

Fig 2: Automatic Transaxle Unit Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

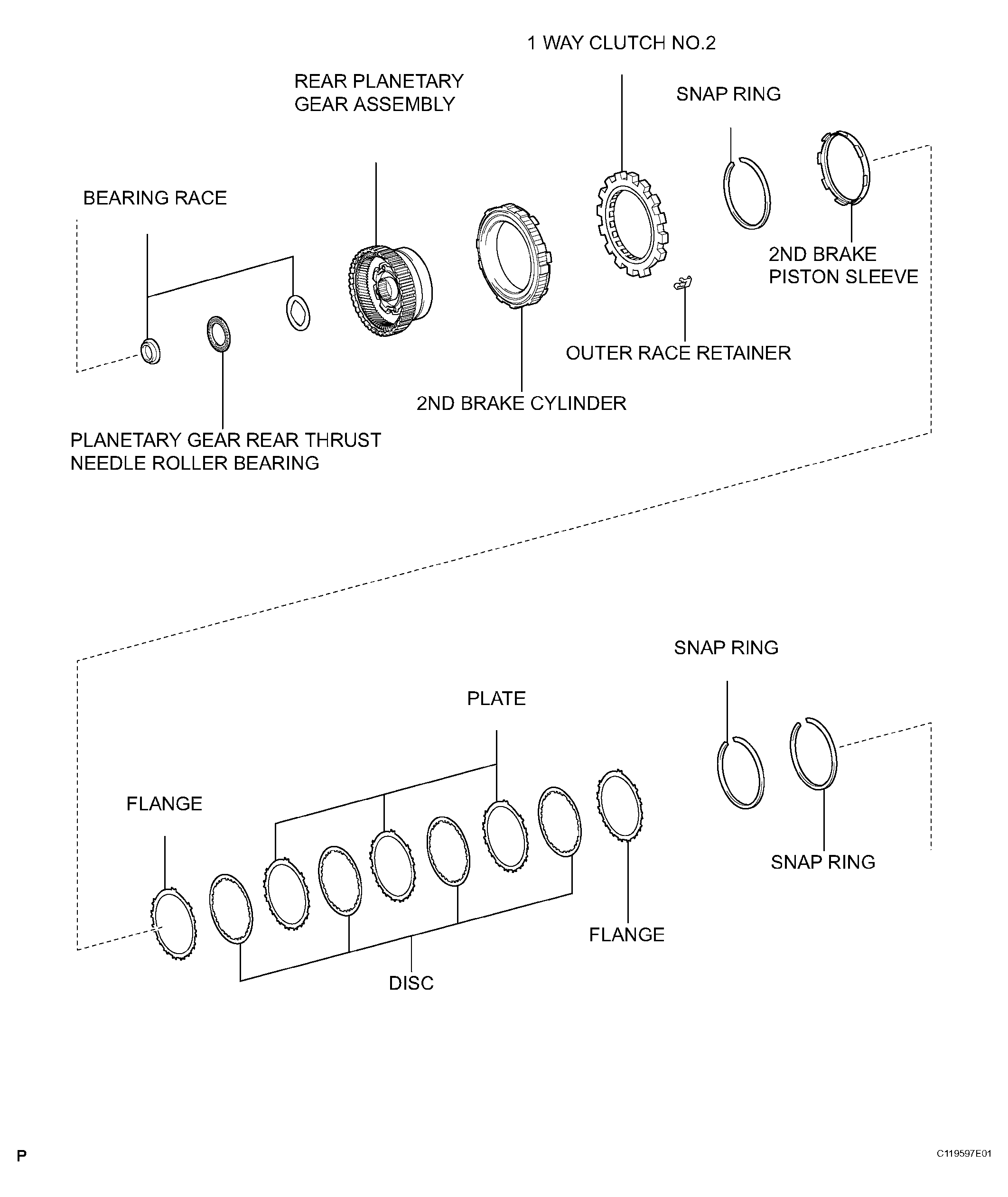

Fig 3: Automatic Transaxle Unit Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

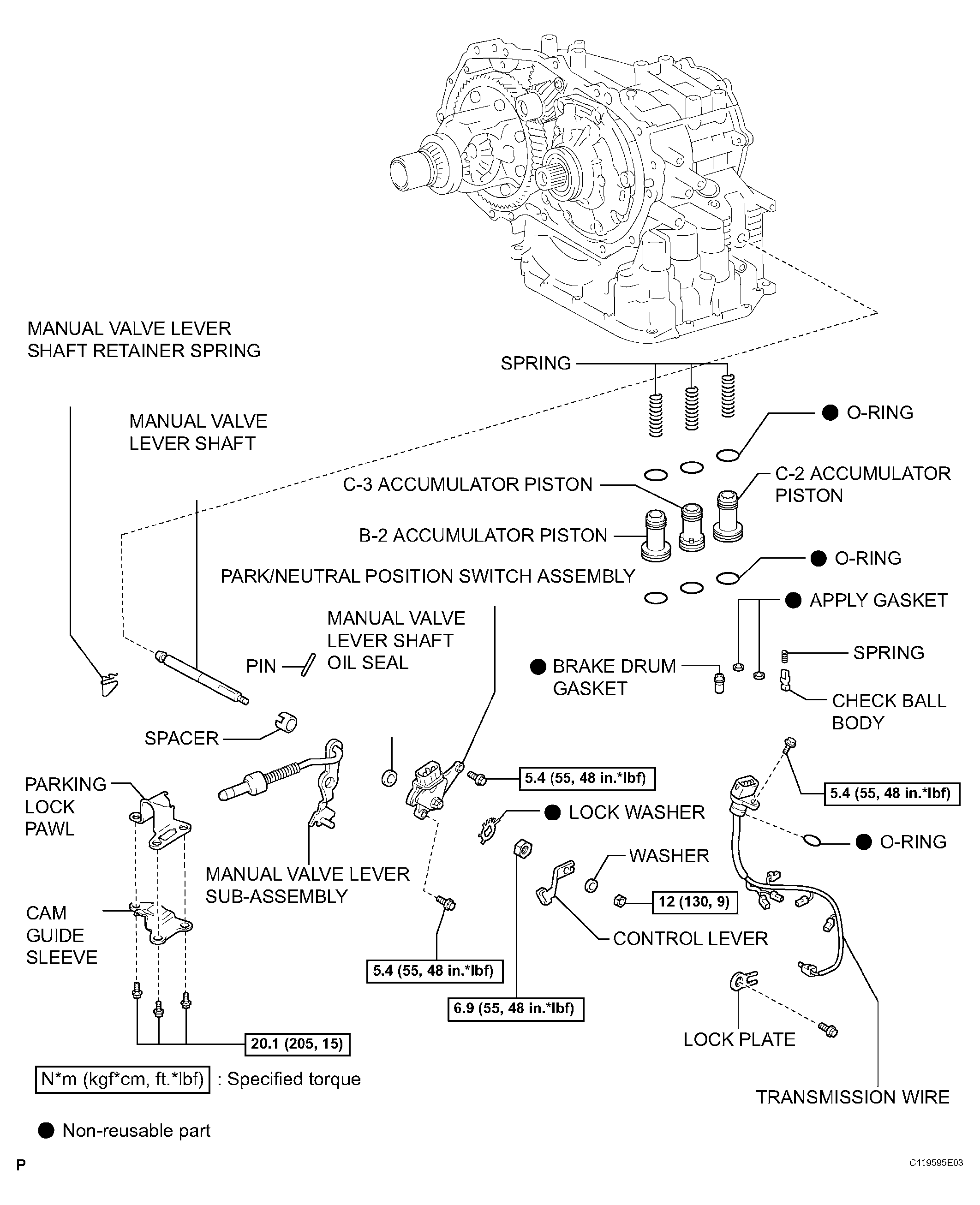

Fig 4: Automatic Transaxle Unit Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

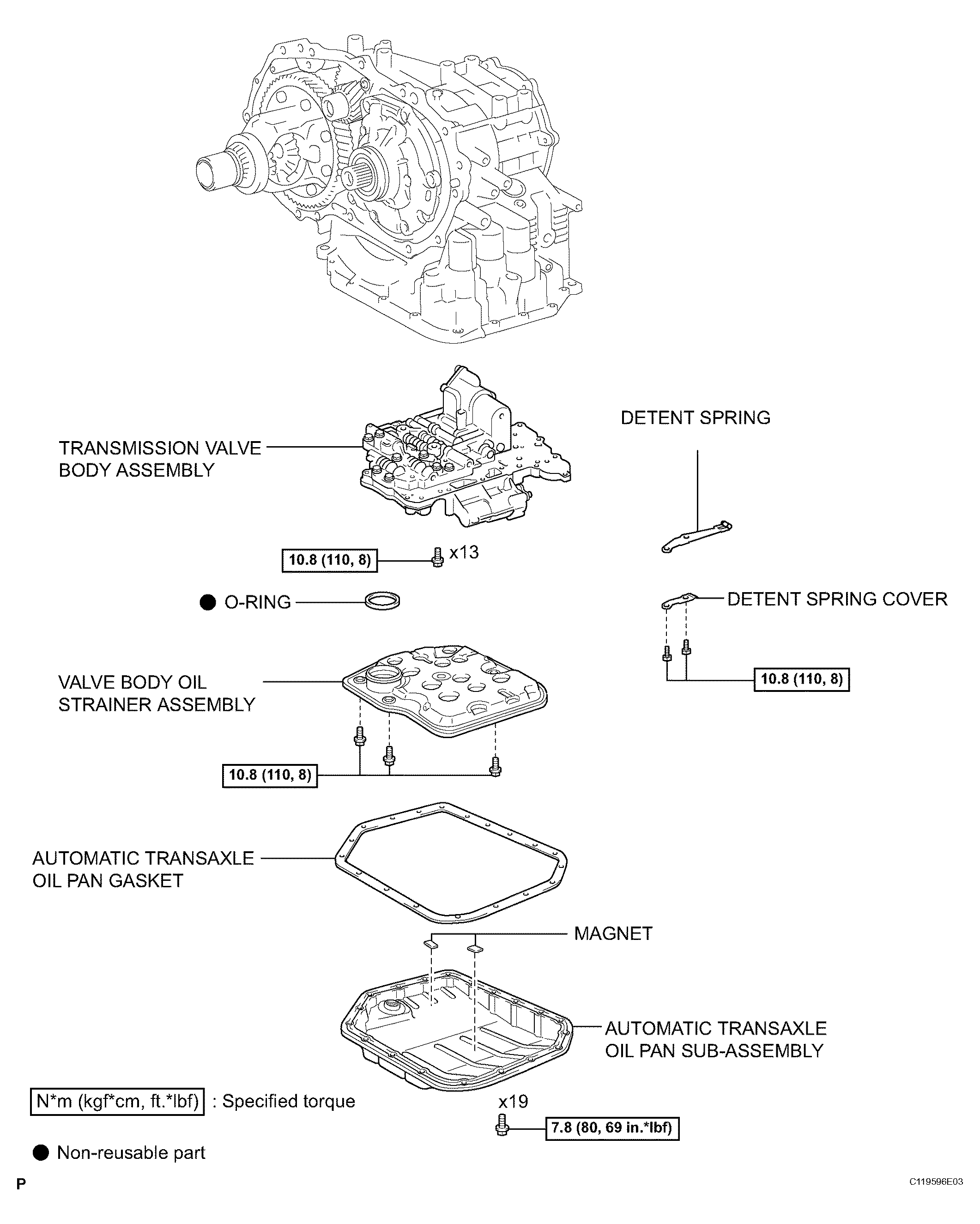

Fig 5: Automatic Transaxle Unit Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

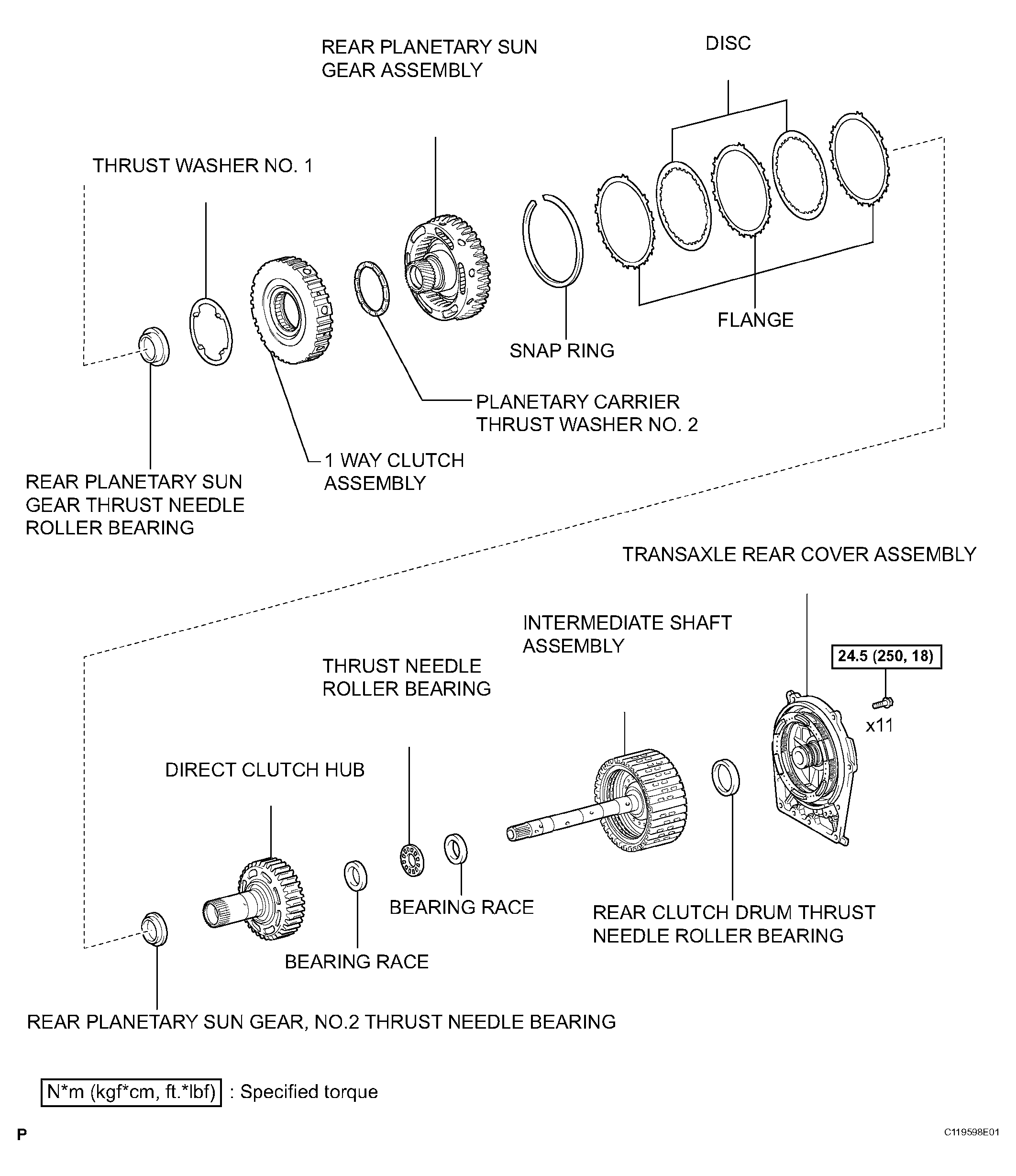

Fig 6: Automatic Transaxle Unit Components With Torque Specifications (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

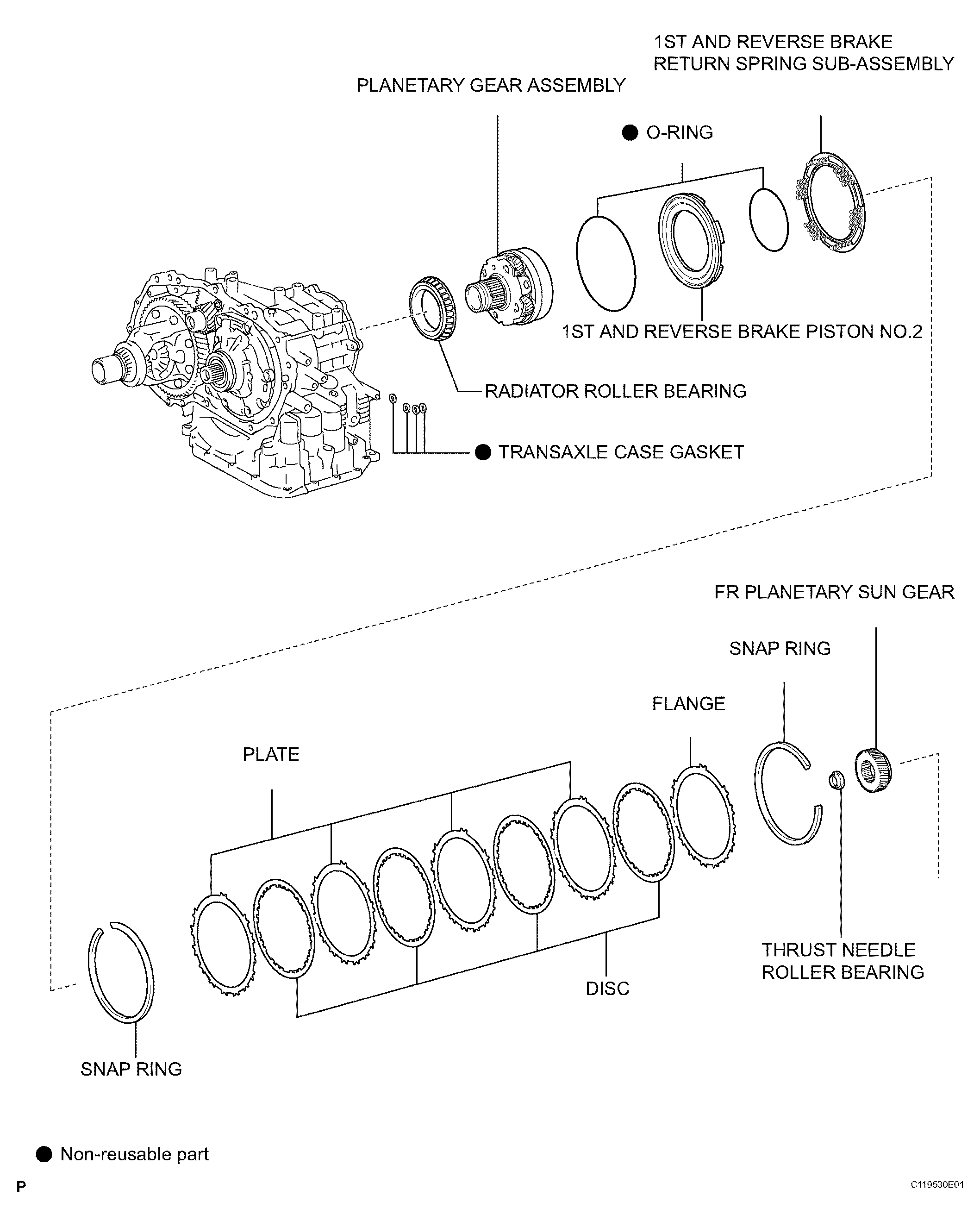

Fig 7: Automatic Transaxle Unit Components With Torque Specifications (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

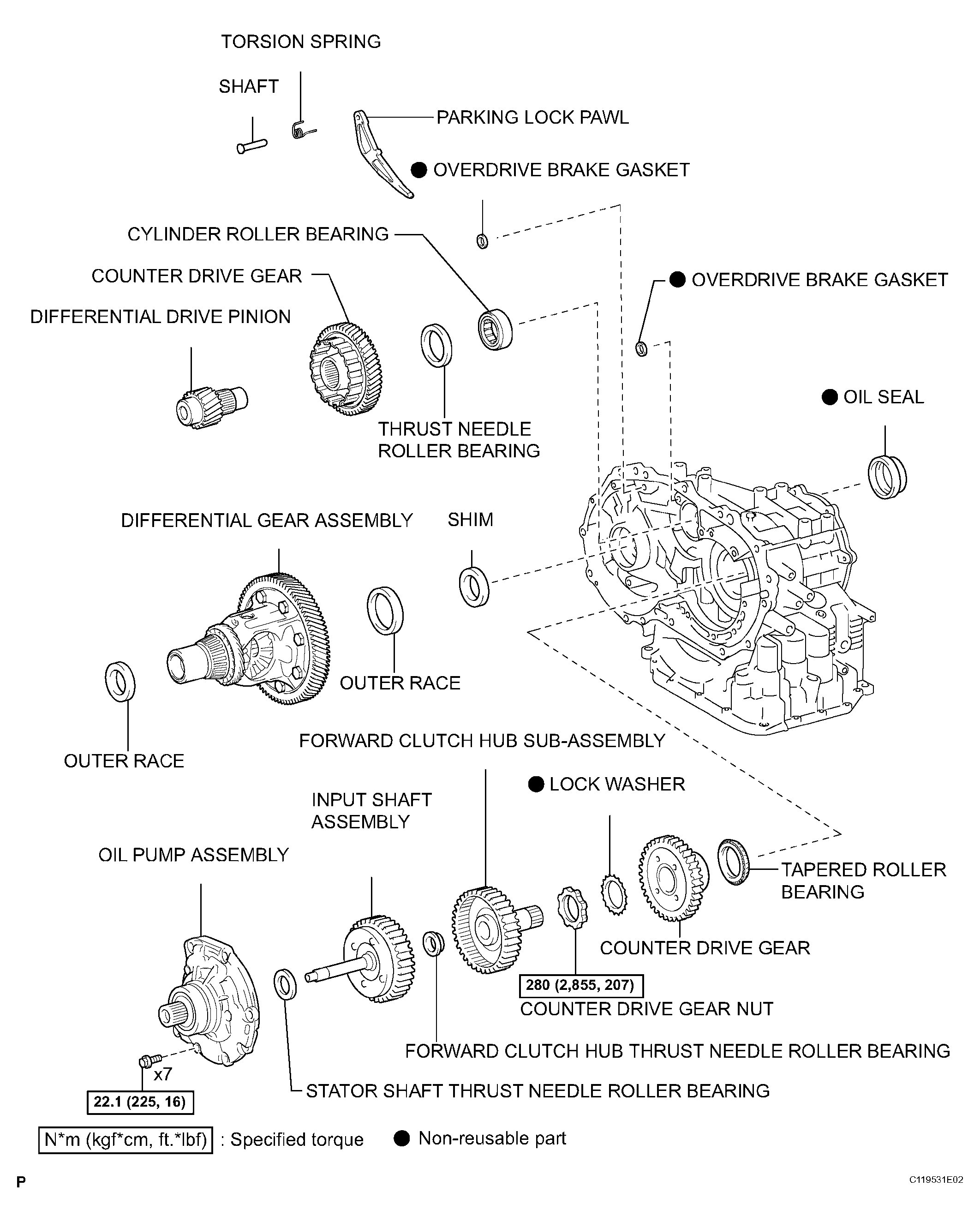

Fig 8: Automatic Transaxle Unit Components With Torque Specifications (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
