Input Shaft: Components

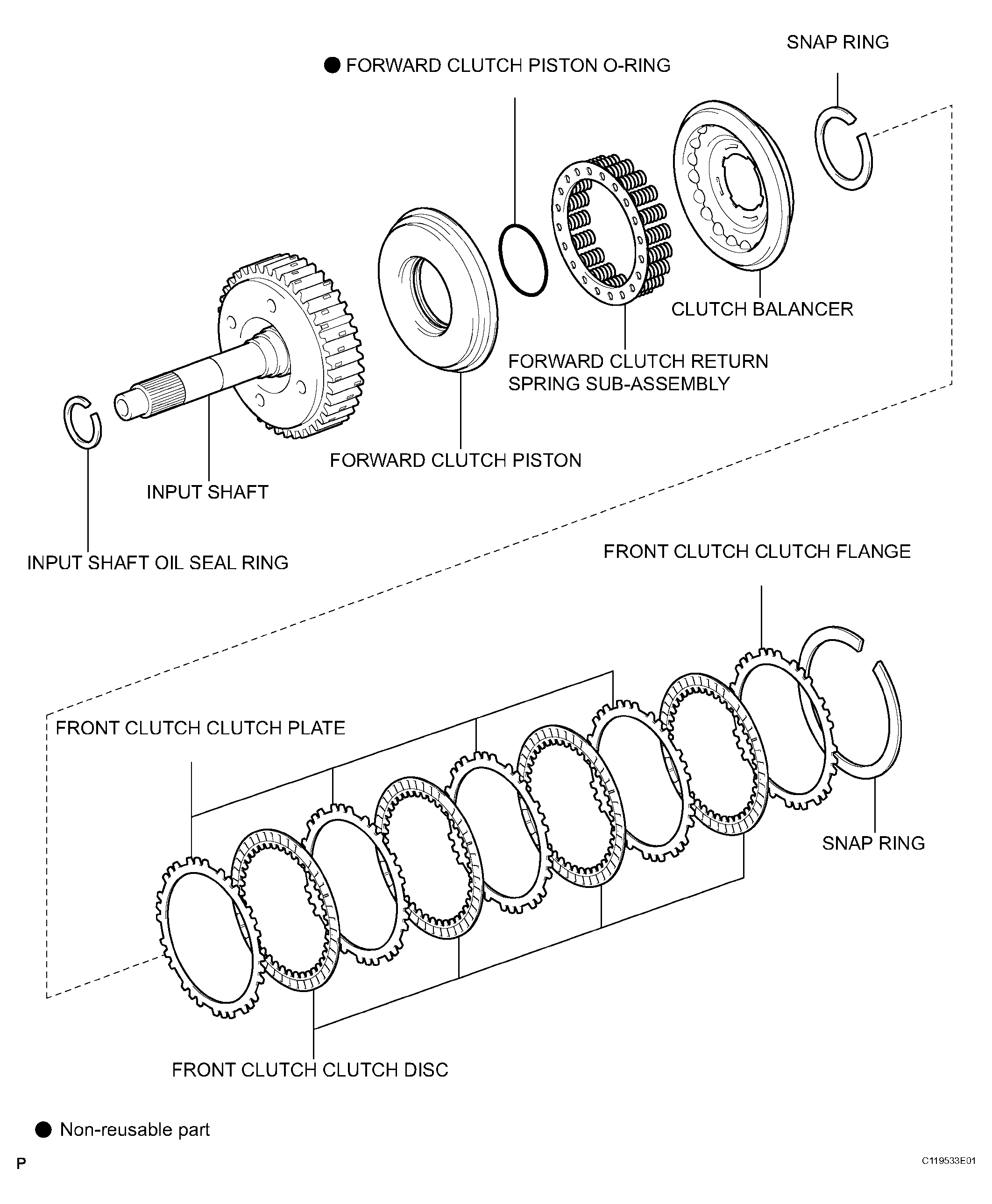

Fig 1: Identifying Input Shaft Components
G04463679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
