Transmission Revolution Sensor: Components

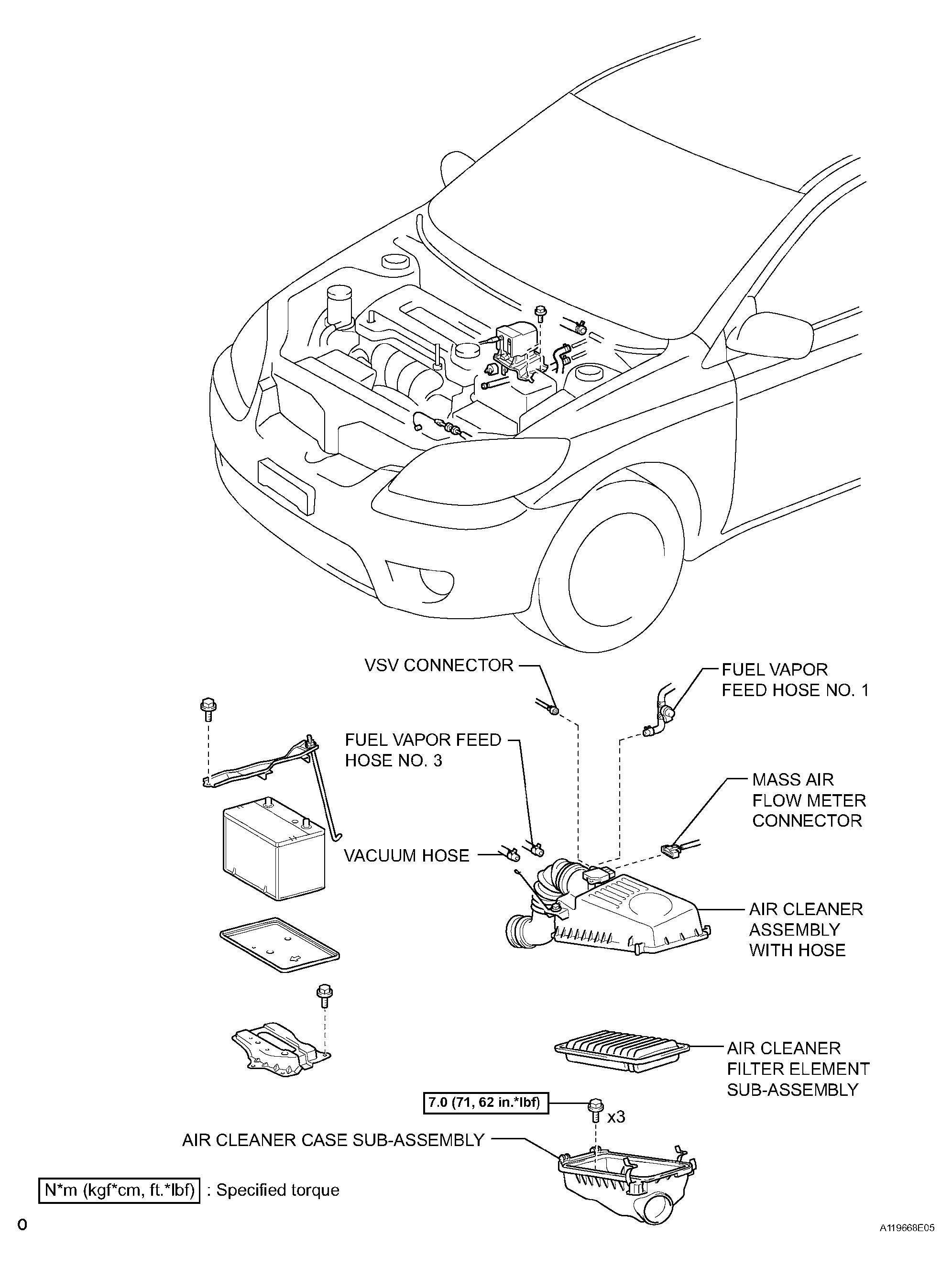

Fig 1: Transmission Revolution Sensor Replacement Components With Torque Specifications (1 Of 2)
G04463292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

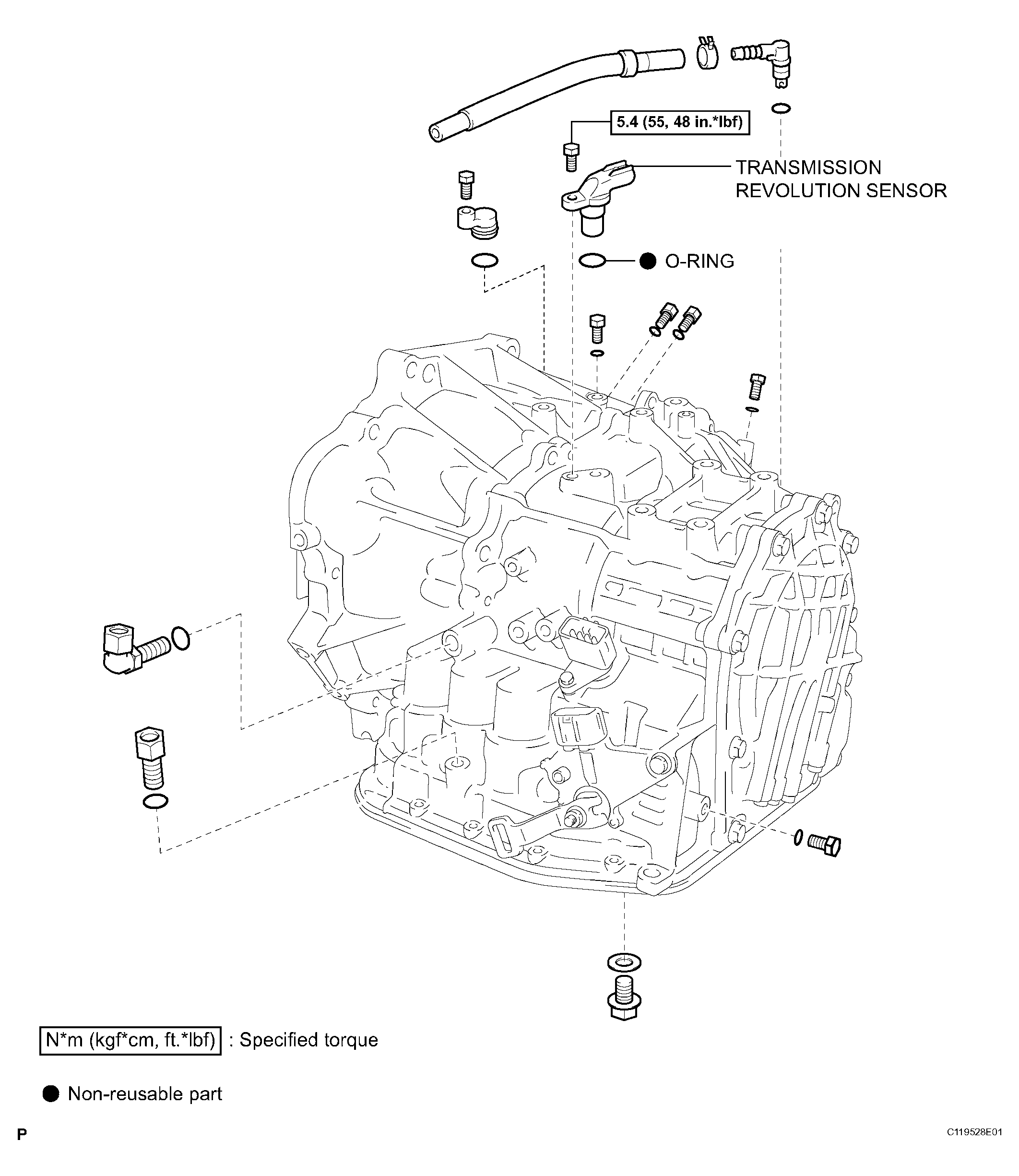

Fig 2: Transmission Revolution Sensor Replacement Components With Torque Specifications (2 Of 2)
G04463293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
