Home >> Toyota >> 2006 >> Matrix Base, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U341F >> Valve Body Assembly >> Components

Valve Body Assembly: Components

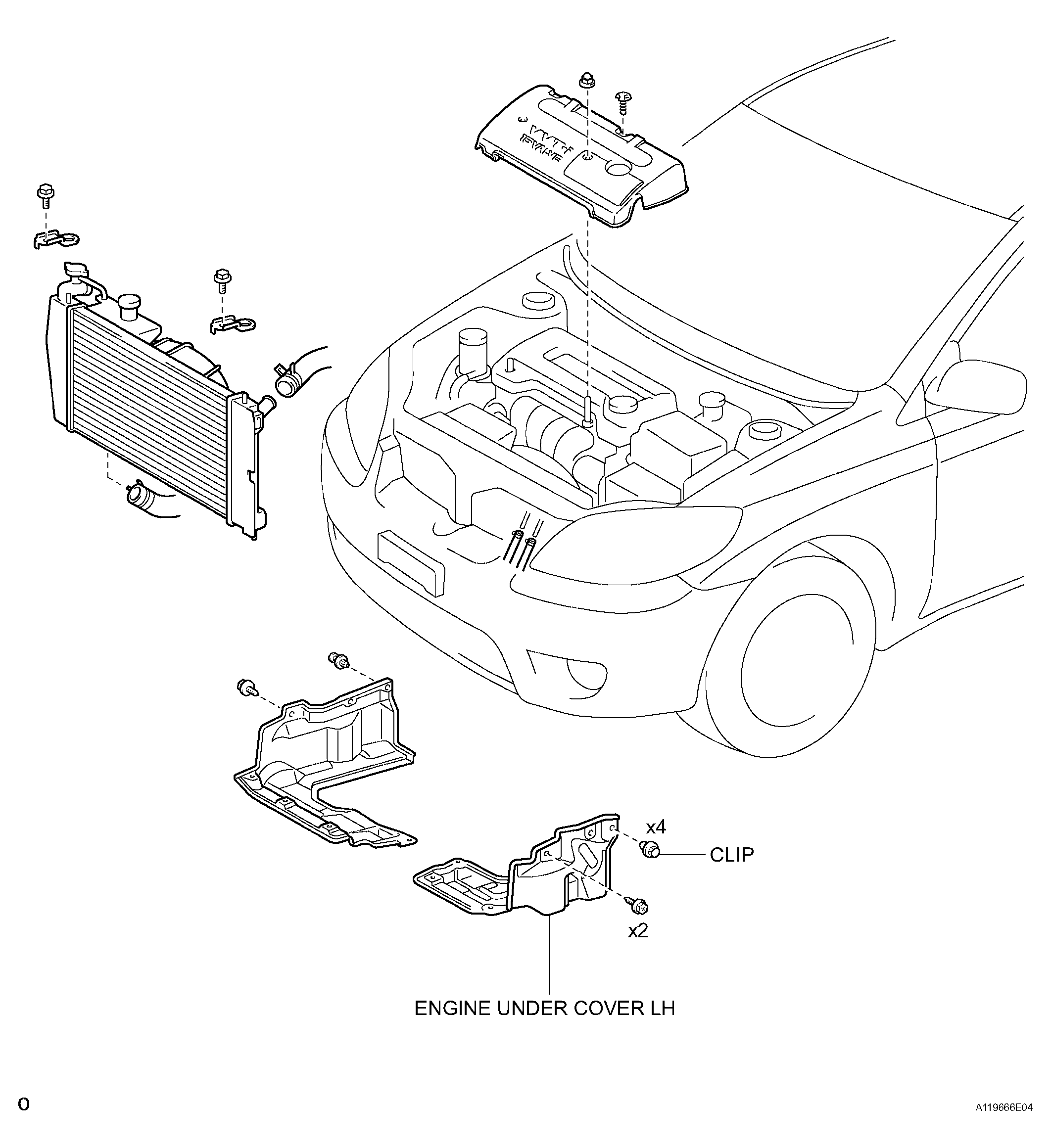

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 3)
G04463314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

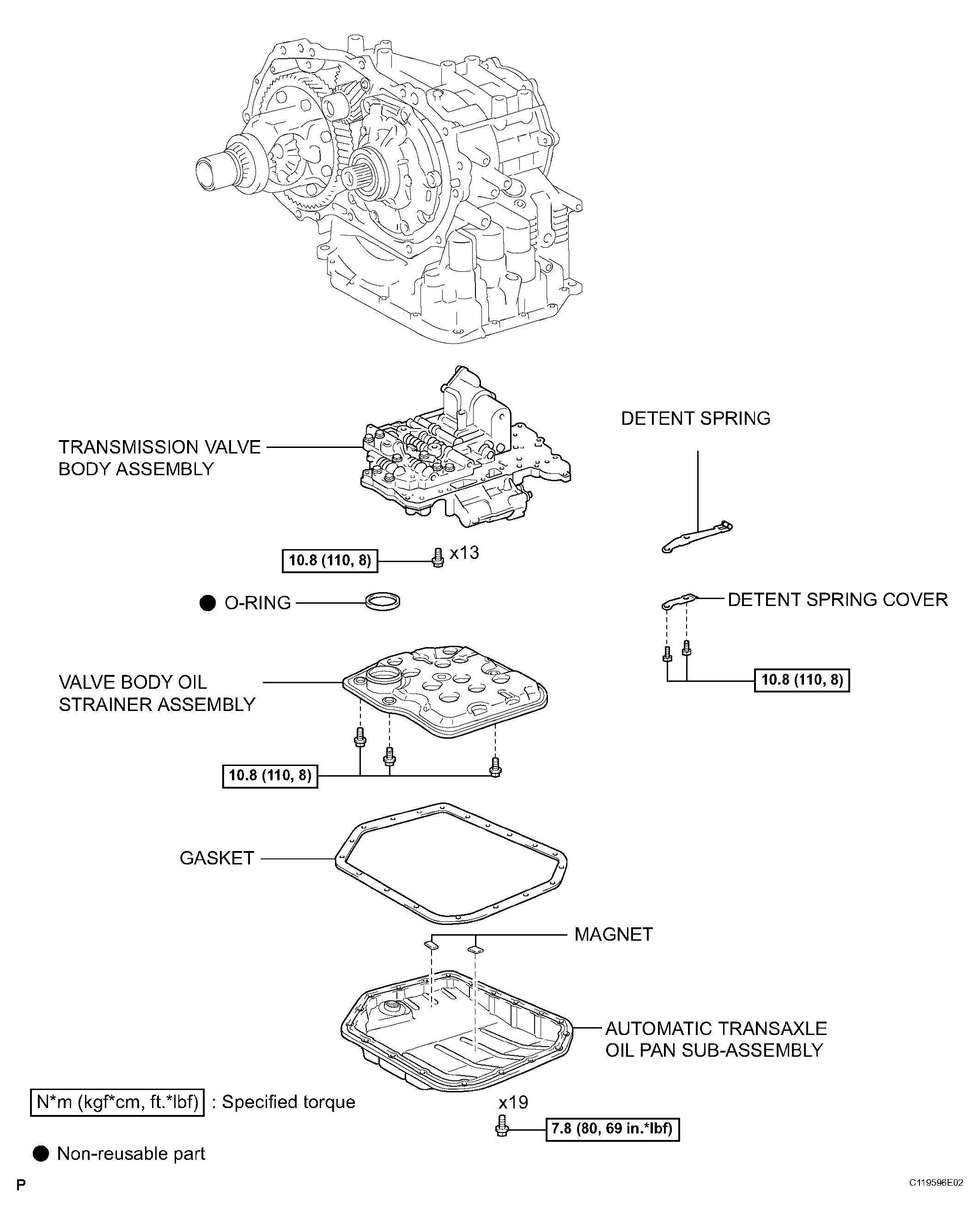

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G04463315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

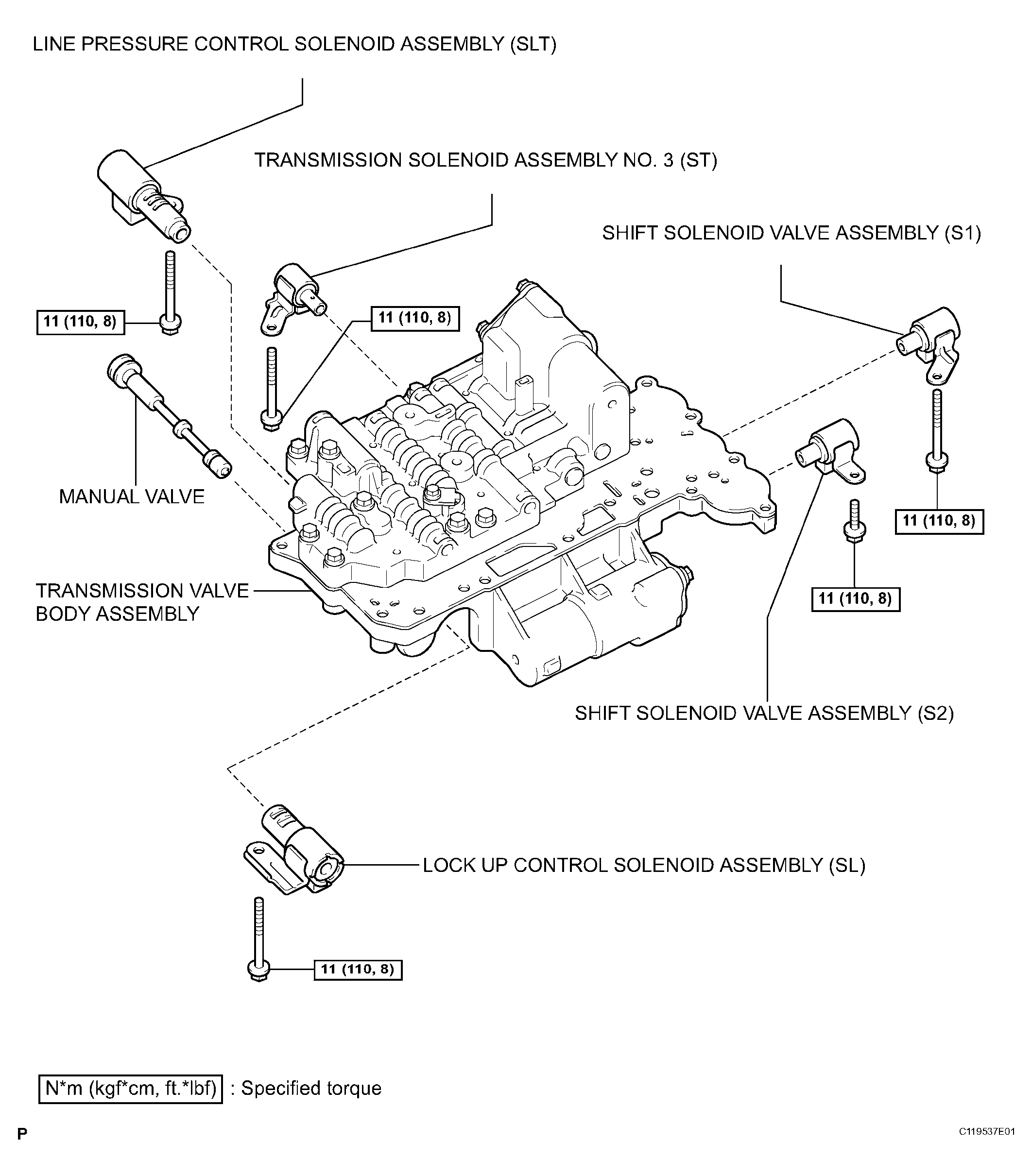

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
G04463316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
