Air Conditioning: Notes

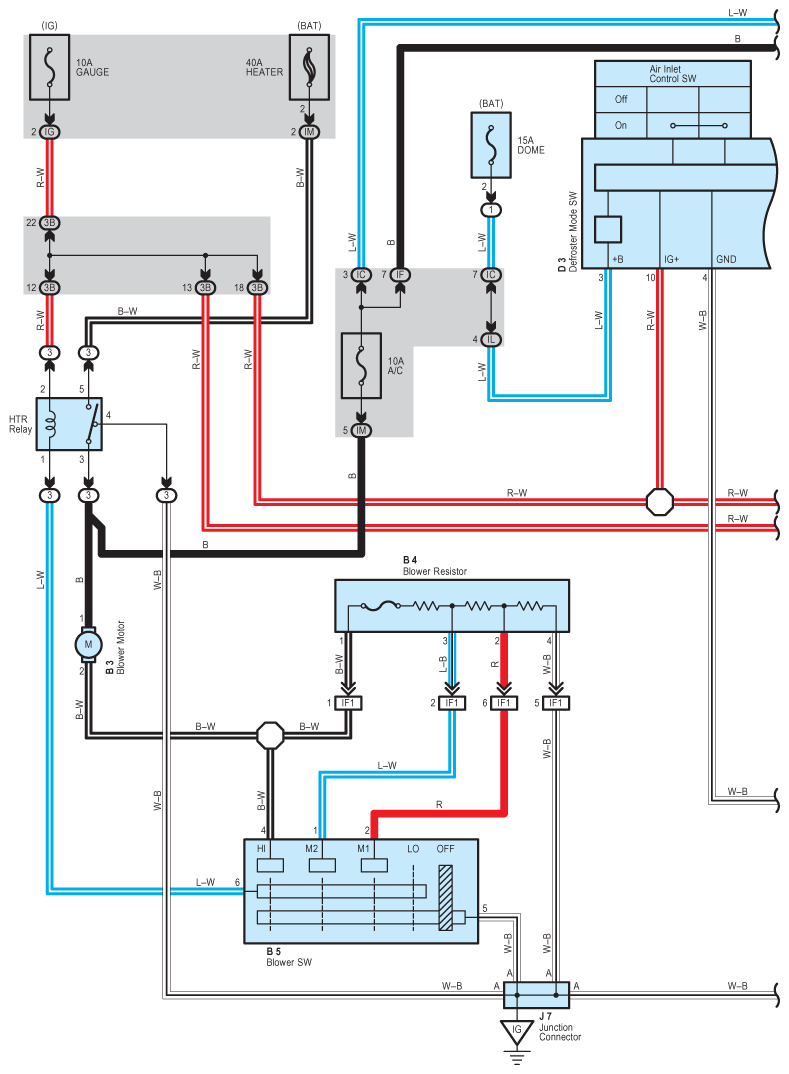

Fig 1: Air Conditioning System Wiring Diagram (1 Of 3)
G08838229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Air Conditioning System Wiring Diagram (2 Of 3)
G08838230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

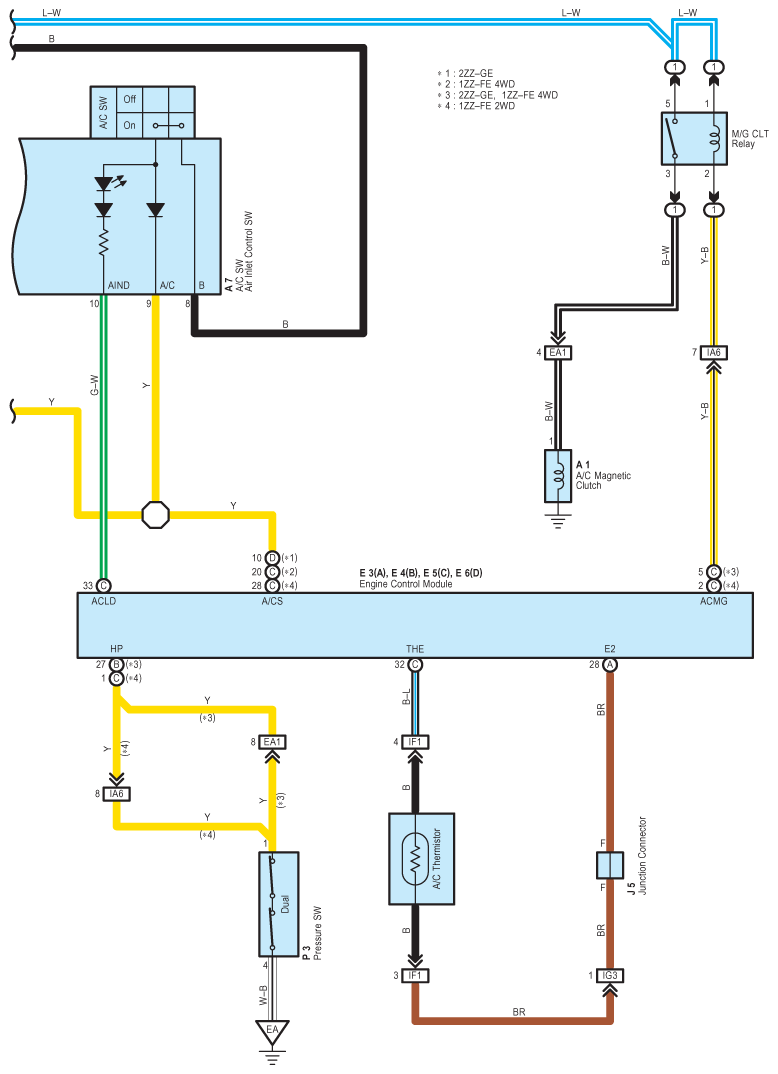

Fig 3: Air Conditioning System Wiring Diagram (3 Of 3)
G08838231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
