Matrix Base, FWD, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Audio System for Built-In Amplifier
>>
Notes
Audio System for Built-In Amplifier: Notes

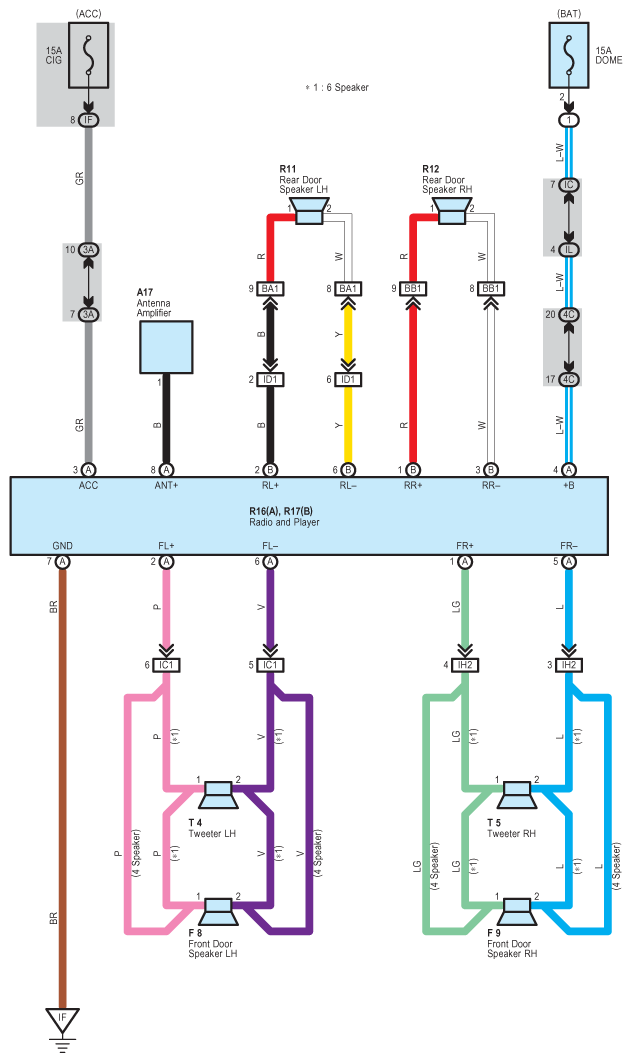

Fig 1: Audio System (For Built-In Amplifier) Wiring Diagram
