Home >> Toyota >> 2006 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Charging >> Notes

OEM System Circuits: Charging: Notes

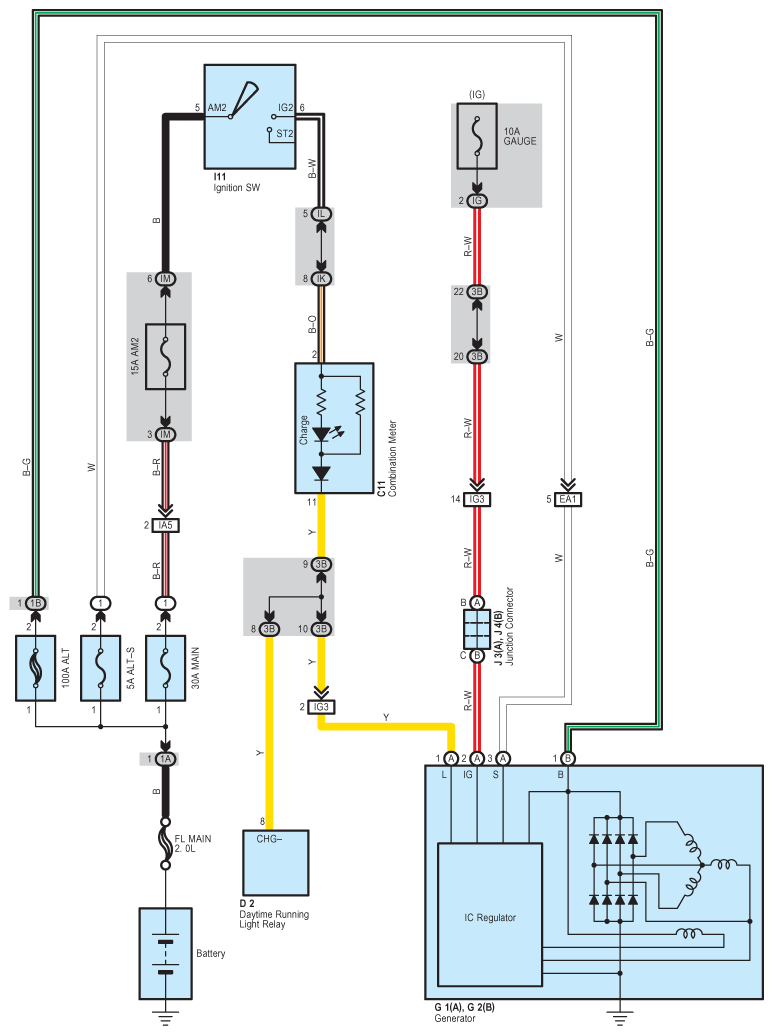

Fig 1: Charging System Wiring Diagram
G08838122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
