Front Fog Light: Notes

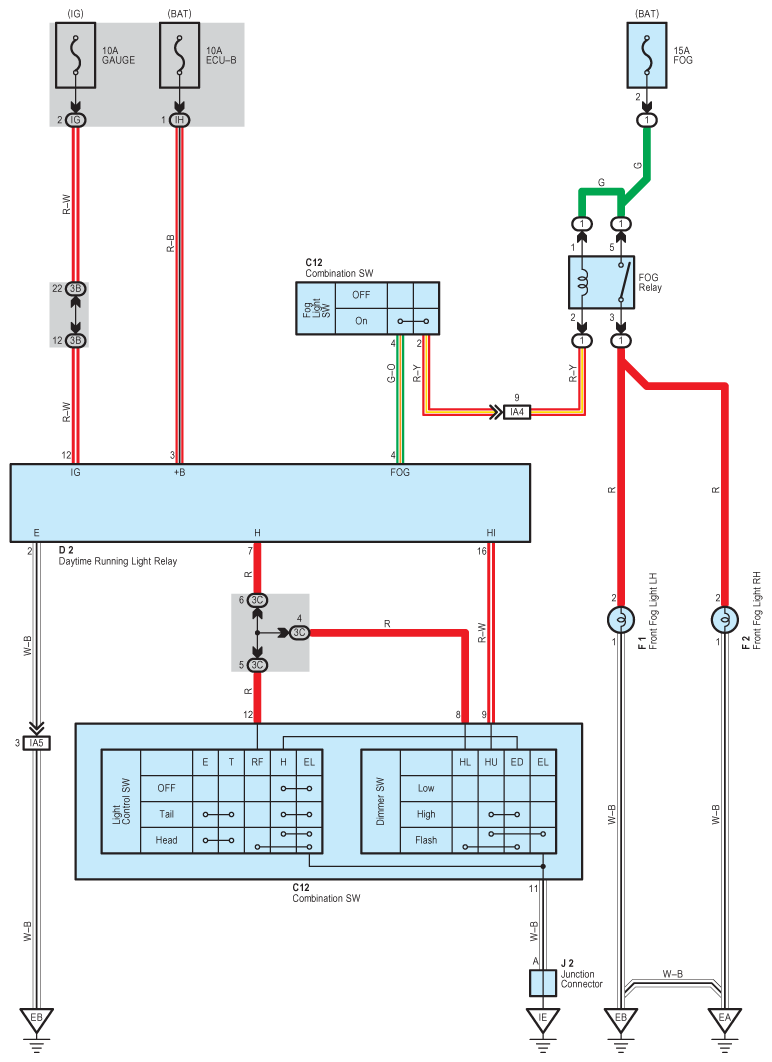

Fig 1: Front Fog Light System Wiring Diagram

G08838152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
