Engine Fuel System (1ZZ-FE)
>>
Fuel Injector
>>
Components
Fuel Injector: Components

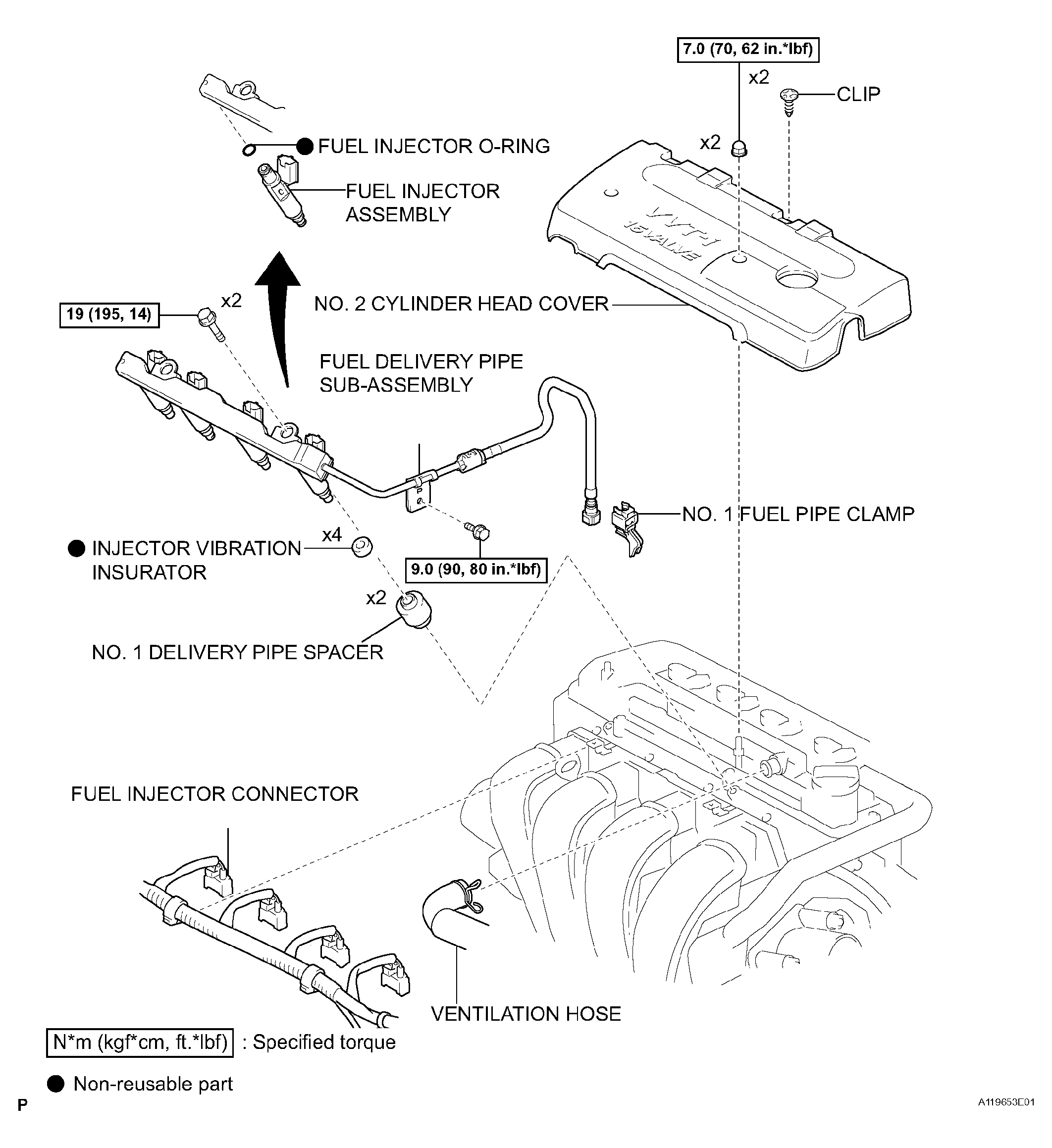

Fig 1: Exploded View Of Fuel Injector Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
