Home >> Toyota >> 2006 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System >> Front Stabilizer Bar >> Components

Front Stabilizer Bar: Components

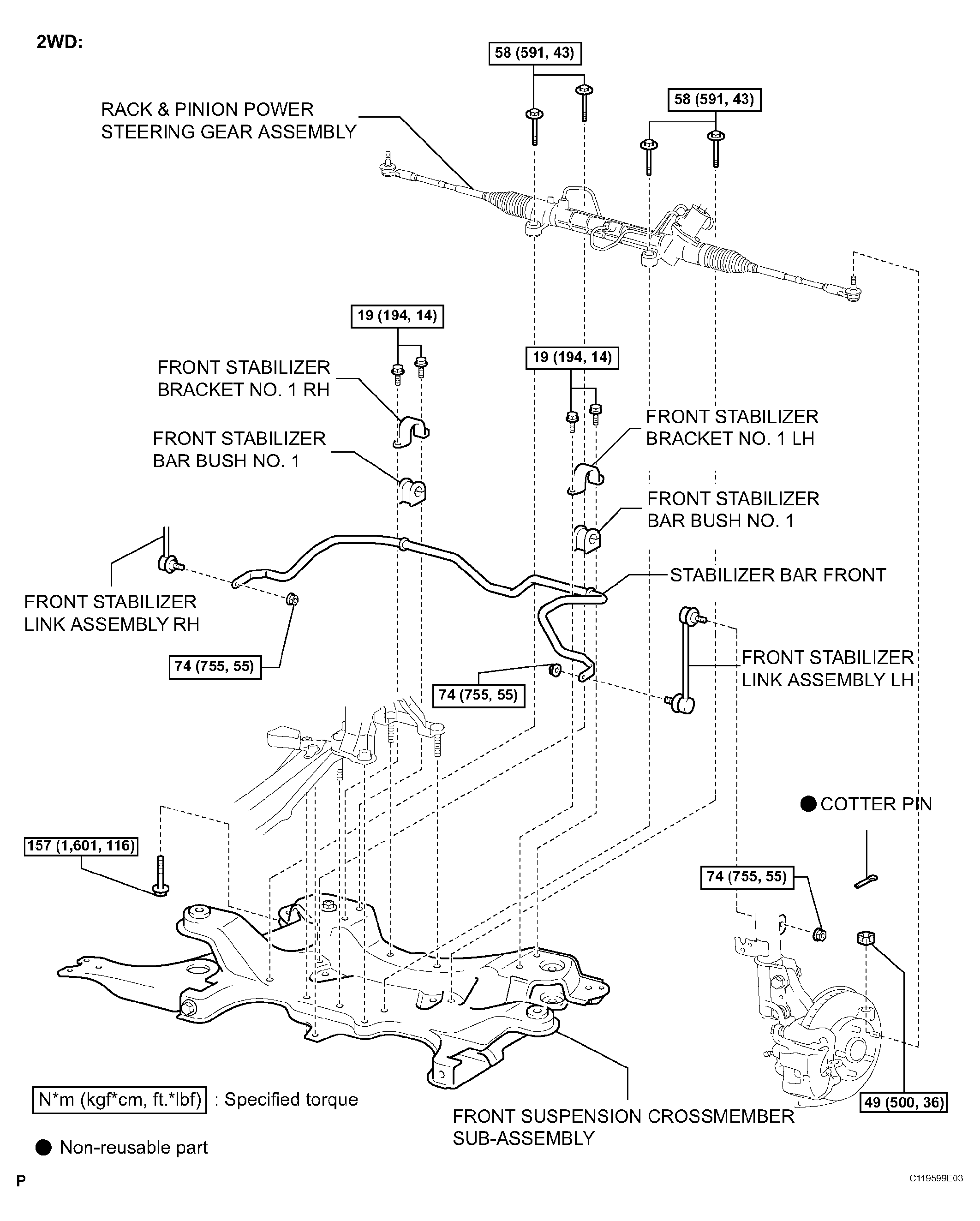

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications (1 Of 2)
G04464963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

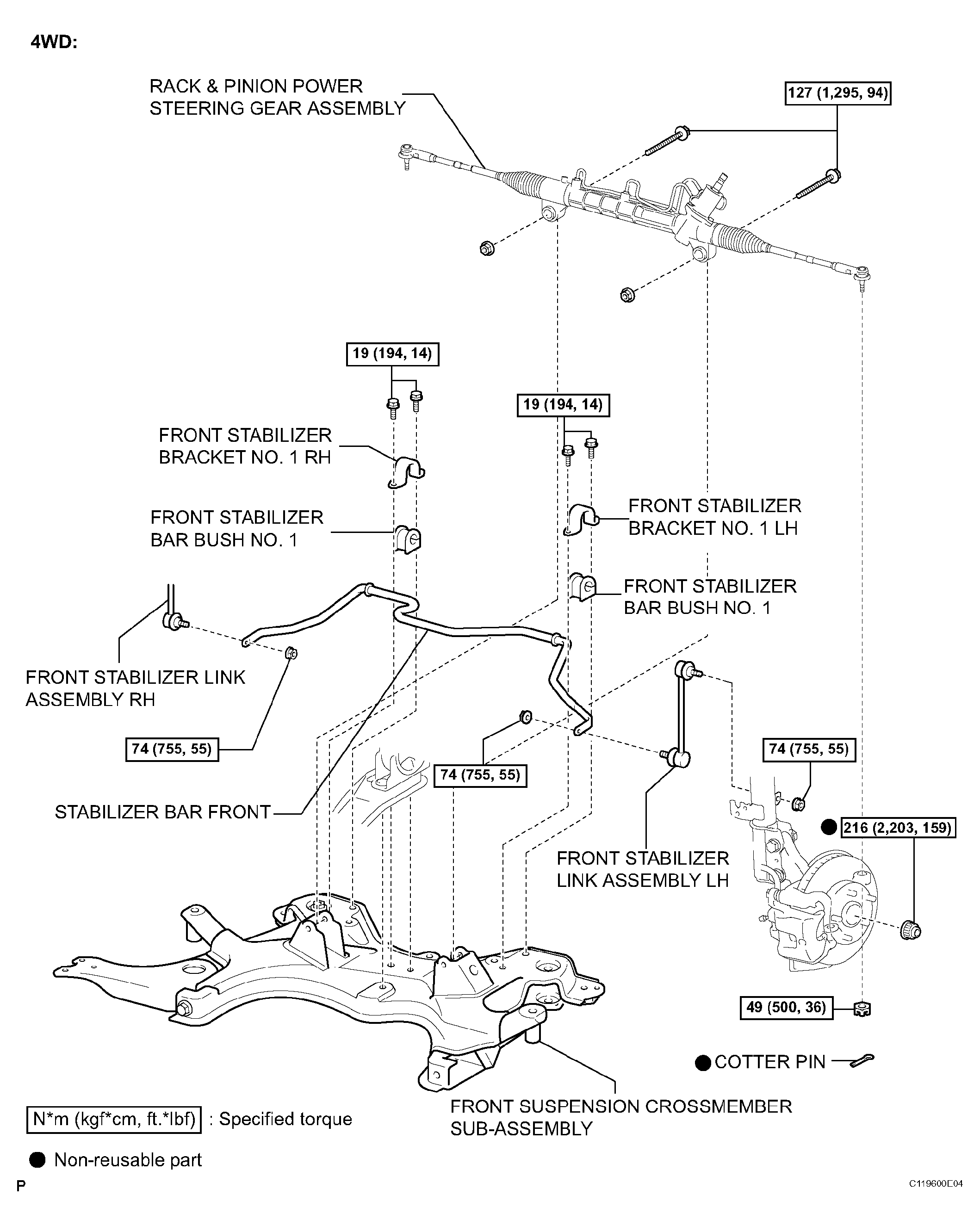

Fig 2: Front Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
G04464964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
