Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> Brake Control Power Supply >> Components

Brake Control Power Supply: Components

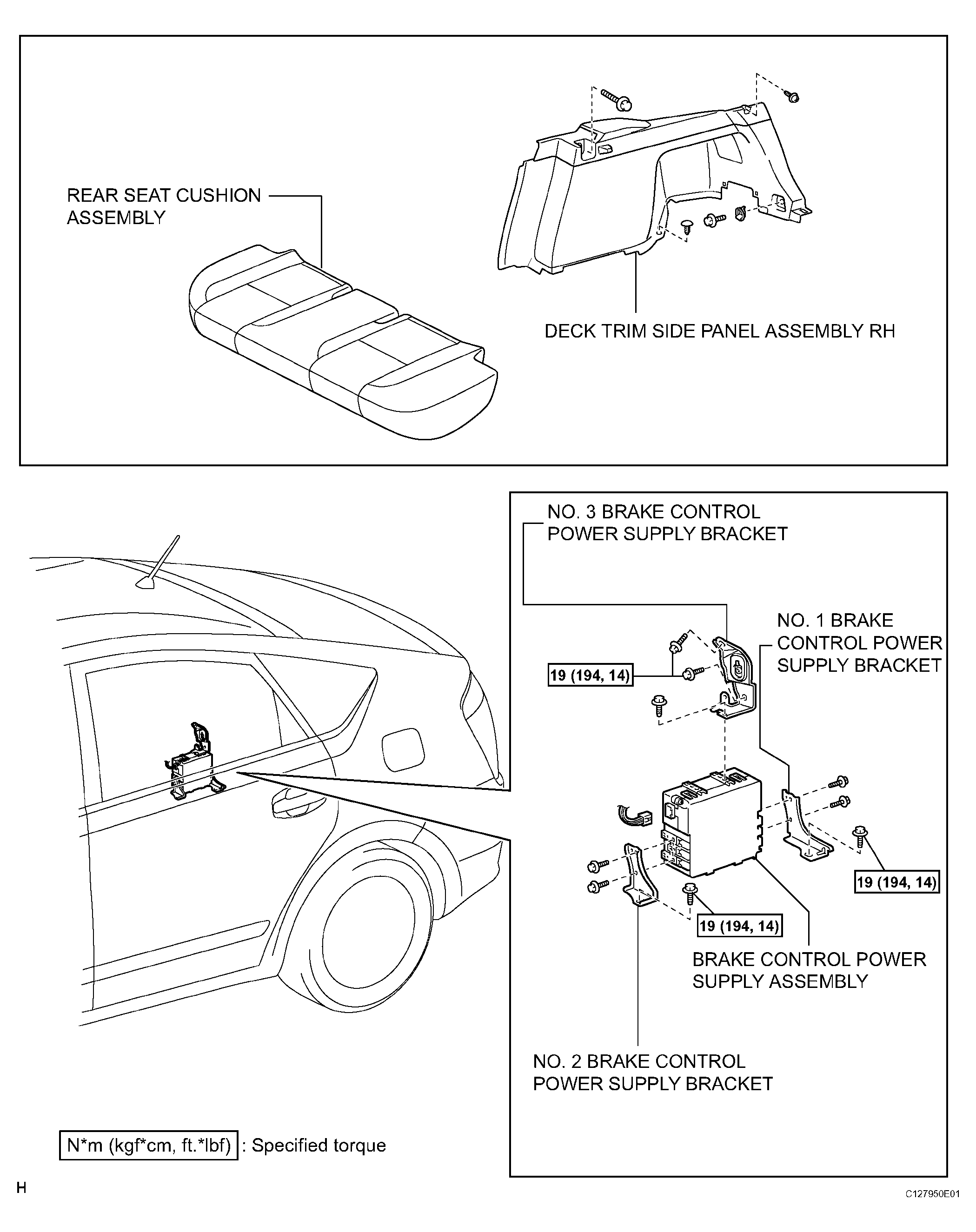

Fig 1: Identifying Brake Control Power Supply Components
G04474755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
