Brake Control Power Supply: Installation

  1. INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
  2. INSTALL NO. 2 BRAKE CONTROL POWER SUPPLY BRACKET
  3. INSTALL NO. 3 BRAKE CONTROL POWER SUPPLY BRACKET
  4. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY
    1. Install the brake control power supply with the 4 bolts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    2. Connect the brake control power supply connector.
  5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Install the deck trim side panel RH (see INSTALLATION ).

      HINT:

      Refer to the procedures from the installation of the deck trim side panel assembly RH up until the installation of the rear door scuff plate RH.

  6. INSTALL REAR SEAT CUSHION ASSEMBLY (see  REASSEMBLY  )
  7. CHECK AND CLEAR DTC
    1. Check and clear the DTC (see DTC CHECK / CLEAR  ).

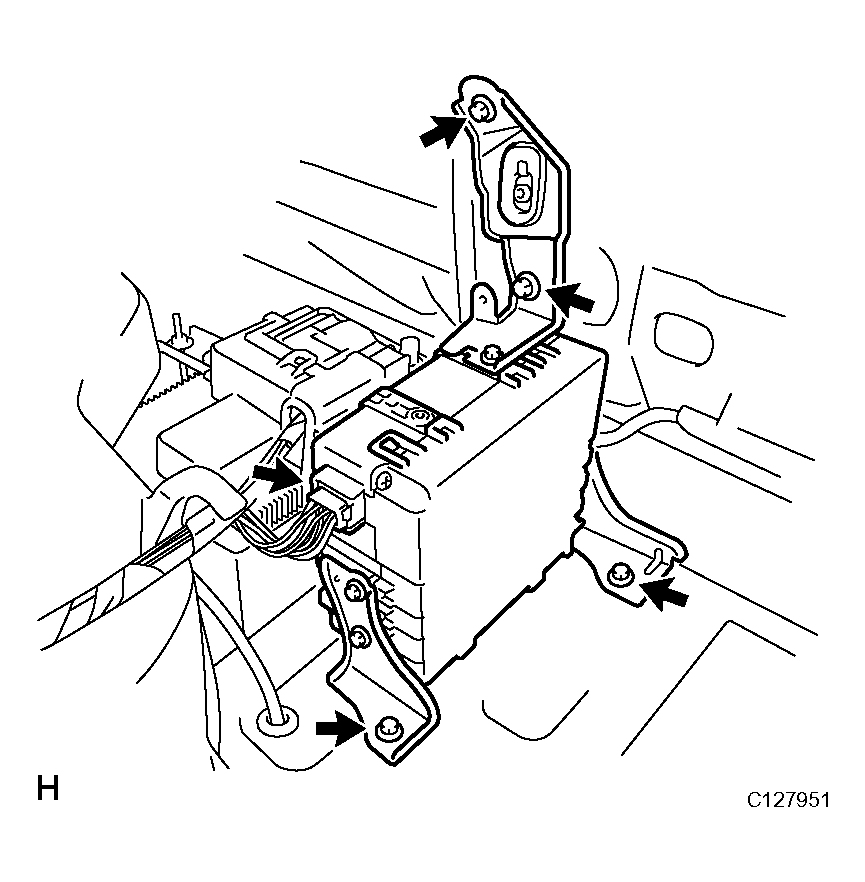

      Fig 1: Installing Brake Control Power Supply Connector With Bolts
      G04474757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
