Brake Control Power Supply: Removal

  1. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  2. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the deck trim side panel RH (see REMOVAL ).

      HINT:

      Refer to the procedures from the removal of the rear door scuff plate RH up until the removal of the deck trim side panel assembly RH.

  3. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 4 bolts and brake control power supply.
  4. REMOVE NO. 3 BRAKE CONTROL POWER SUPPLY BRACKET
  5. REMOVE NO. 2 BRAKE CONTROL POWER SUPPLY BRACKET
  6. REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

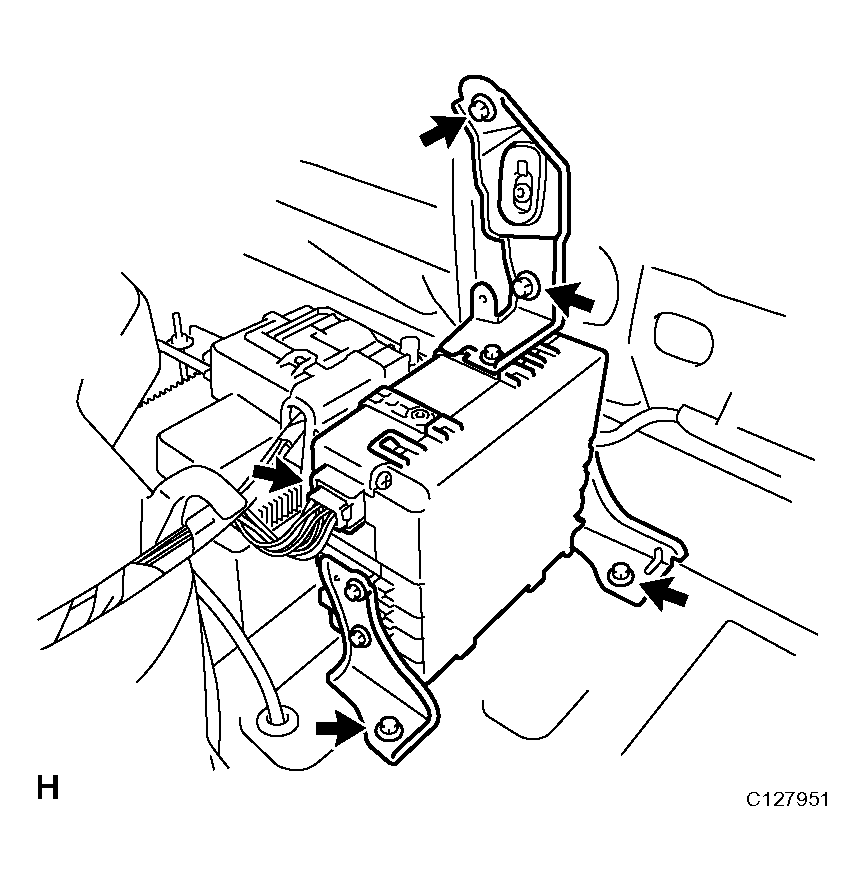

    Fig 1: Removing Bolts And Brake Control Power Supply Connector
    G04474756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
