Parts Location

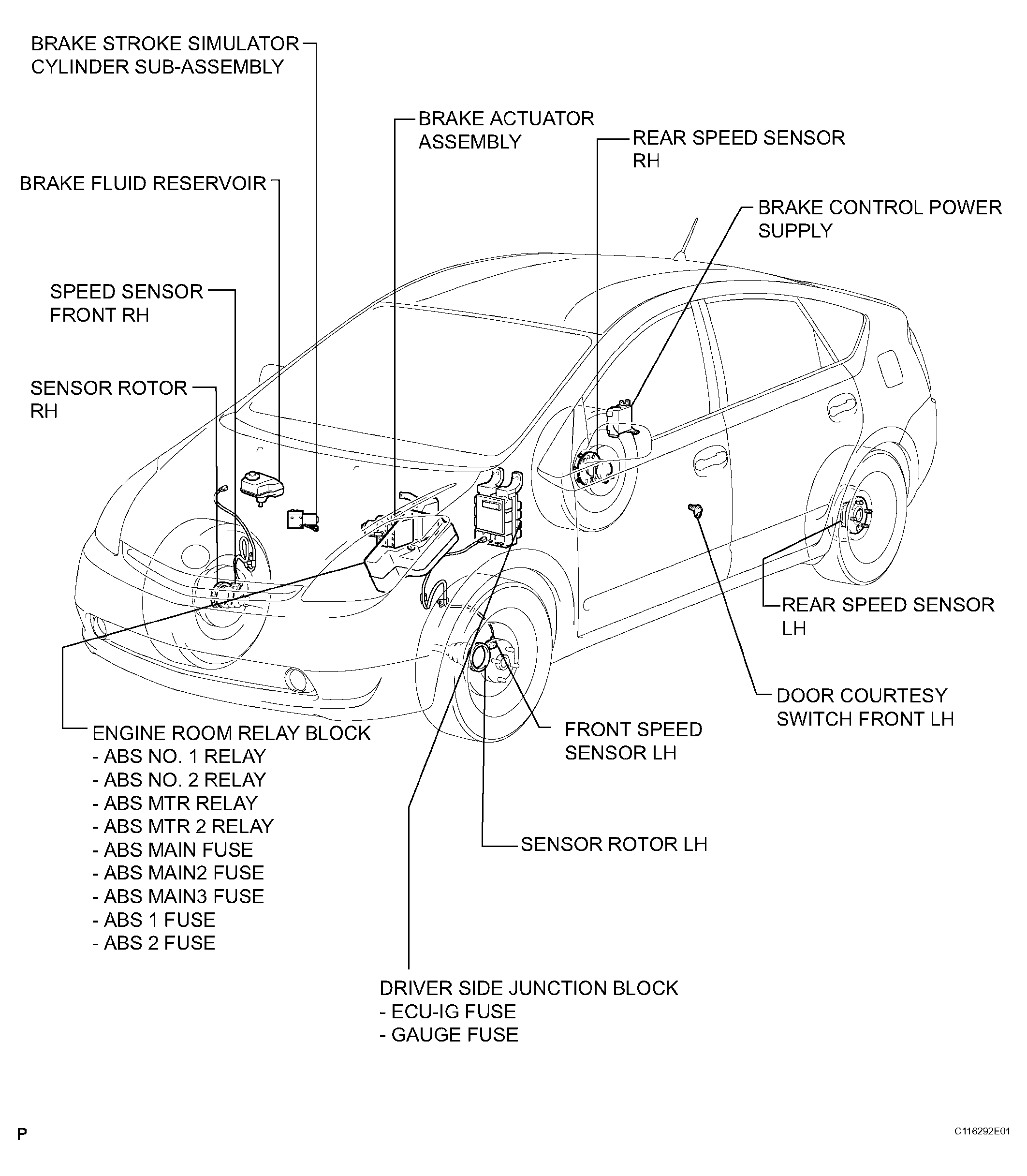

Fig 1: Identifying Brake Control System Components Location (1 Of 2)
G04474546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

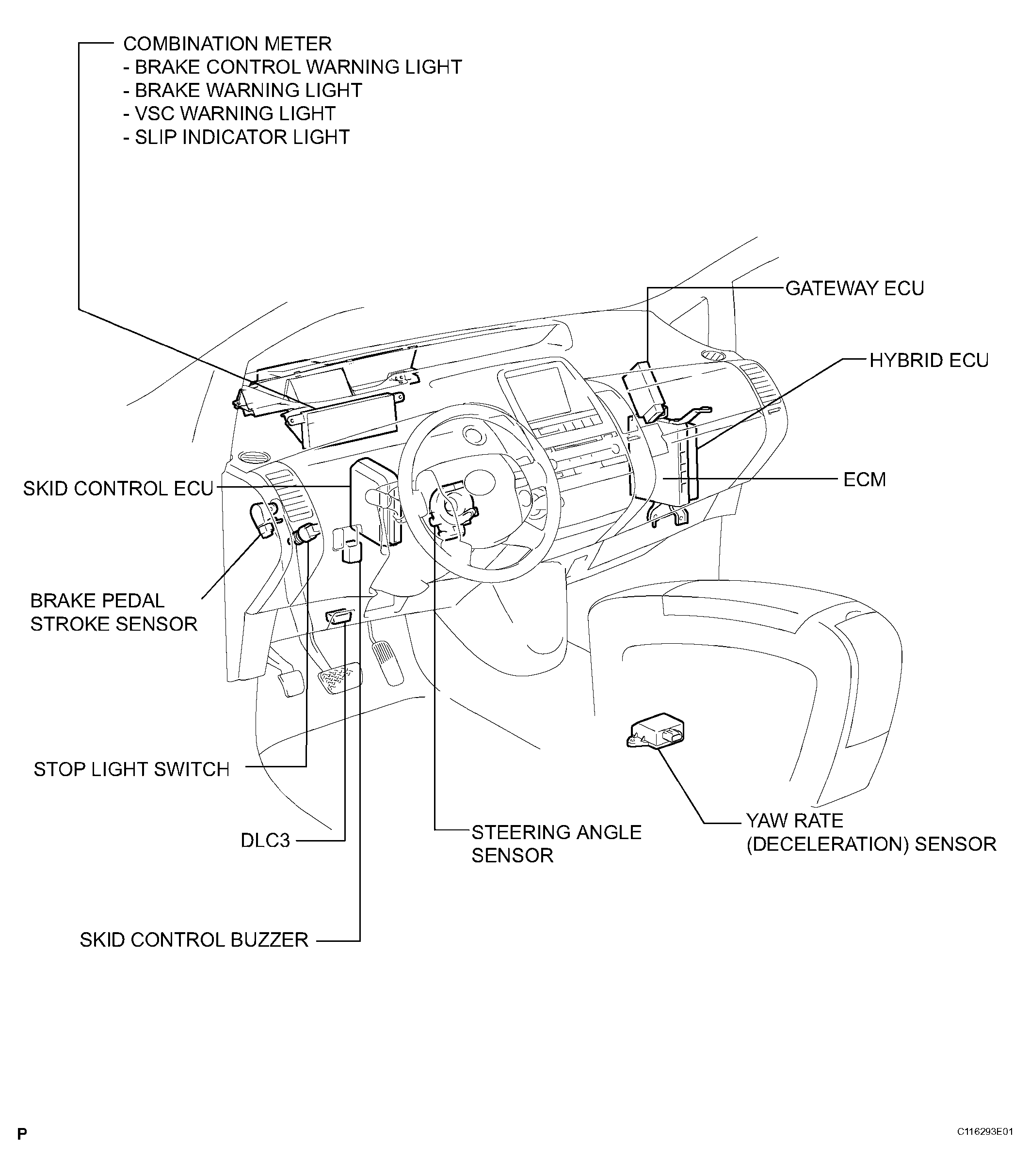

Fig 2: Identifying Brake Control System Components Location (2 Of 2)
G04474547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
