Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> Front Speed Sensor >> Components

Front Speed Sensor: Components

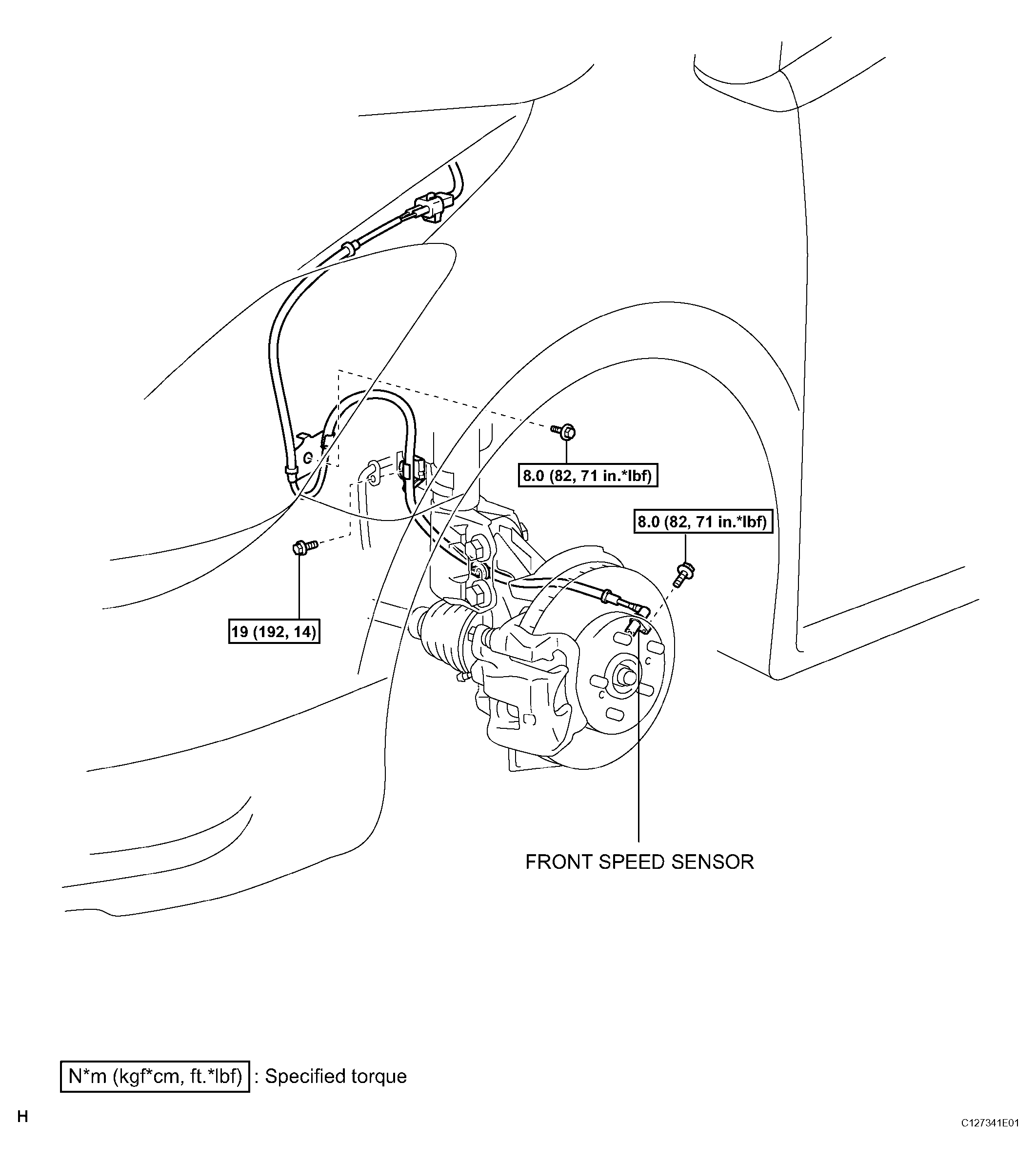

Fig 1: Identifying Front Speed Sensor Components

G04474735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
