Yaw Rate And Deceleration Sensor: Removal

  1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE CONSOLE BOX POCKET
  3. REMOVE CONSOLE BOX CARPET
  4. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE YAW RATE SENSOR
    1. Disconnect the connector and remove the 2 bolts and sensor.

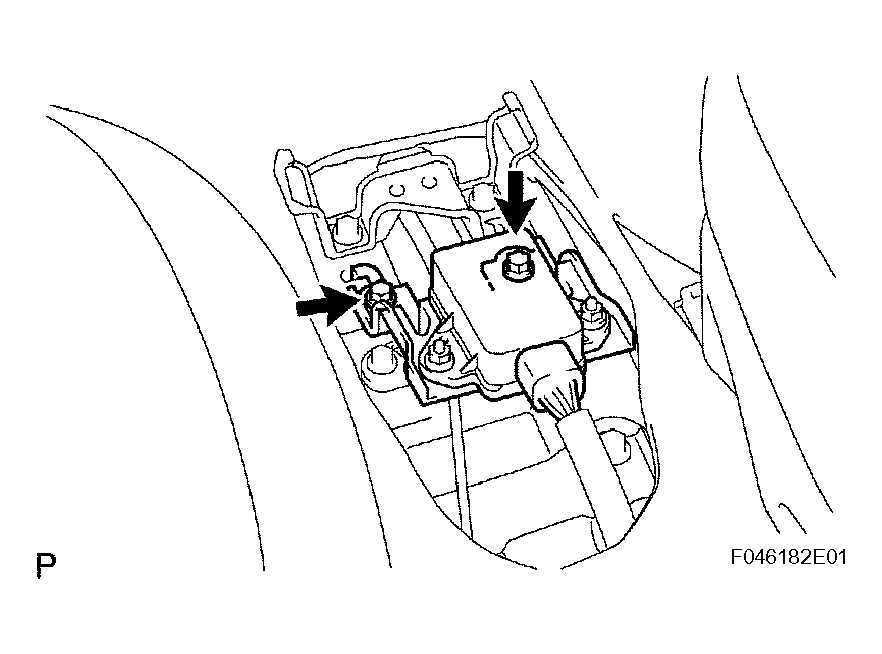

      Fig 1: Disconnecting Connector And Removing Bolts And Sensor
      G04474747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
