Headlight Beam Level Control: Notes

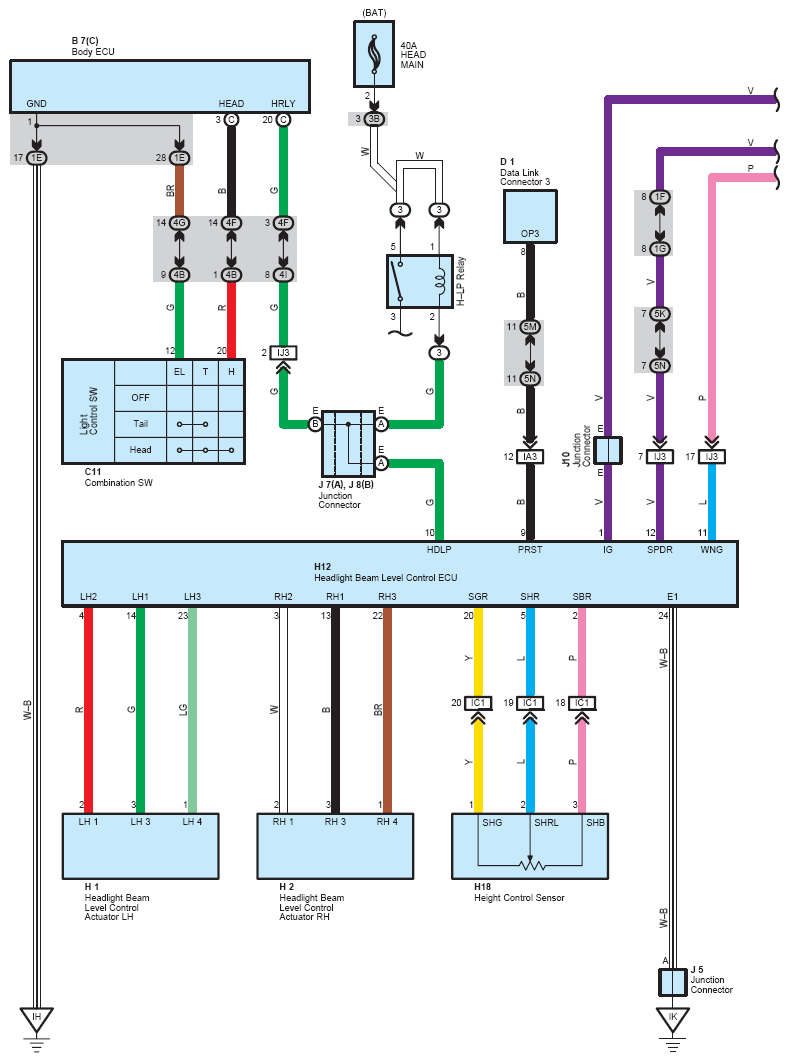

Fig 1: Headlight Beam Level Control System Wiring Diagram (1 Of 2)
G08794742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

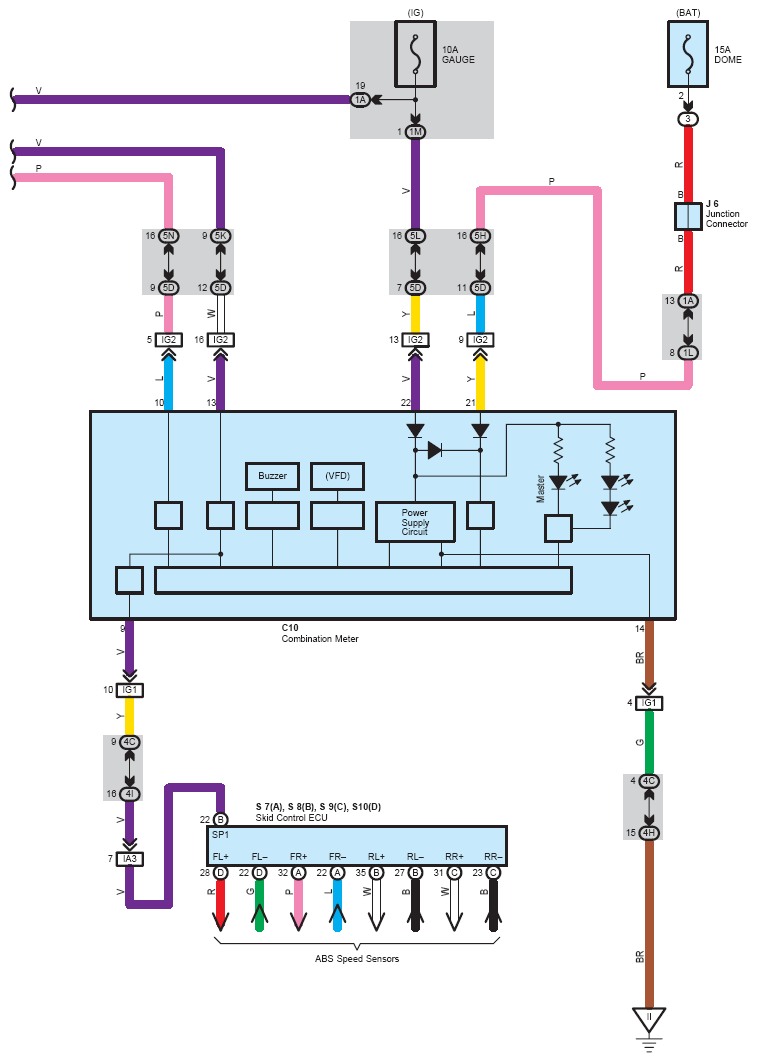

Fig 2: Headlight Beam Level Control System Wiring Diagram (2 Of 2)
G08794743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
