Key Reminder: Notes

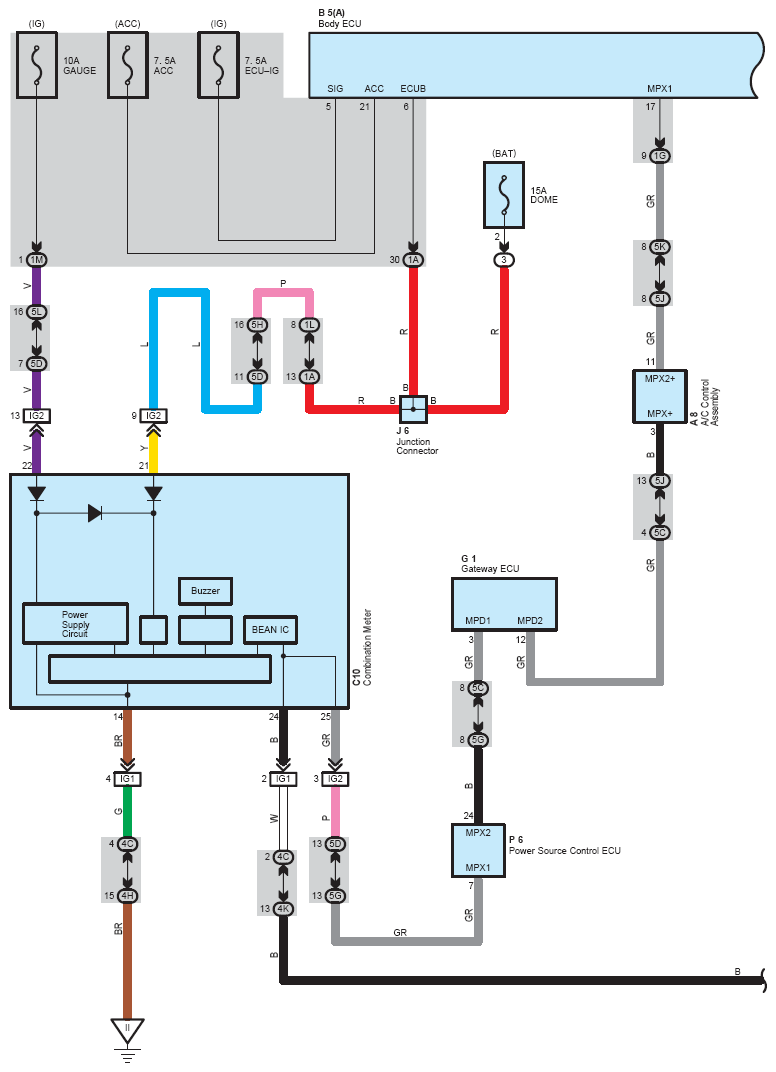

Fig 1: Key Reminder System Wiring Diagram (1 Of 2)
G08794761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

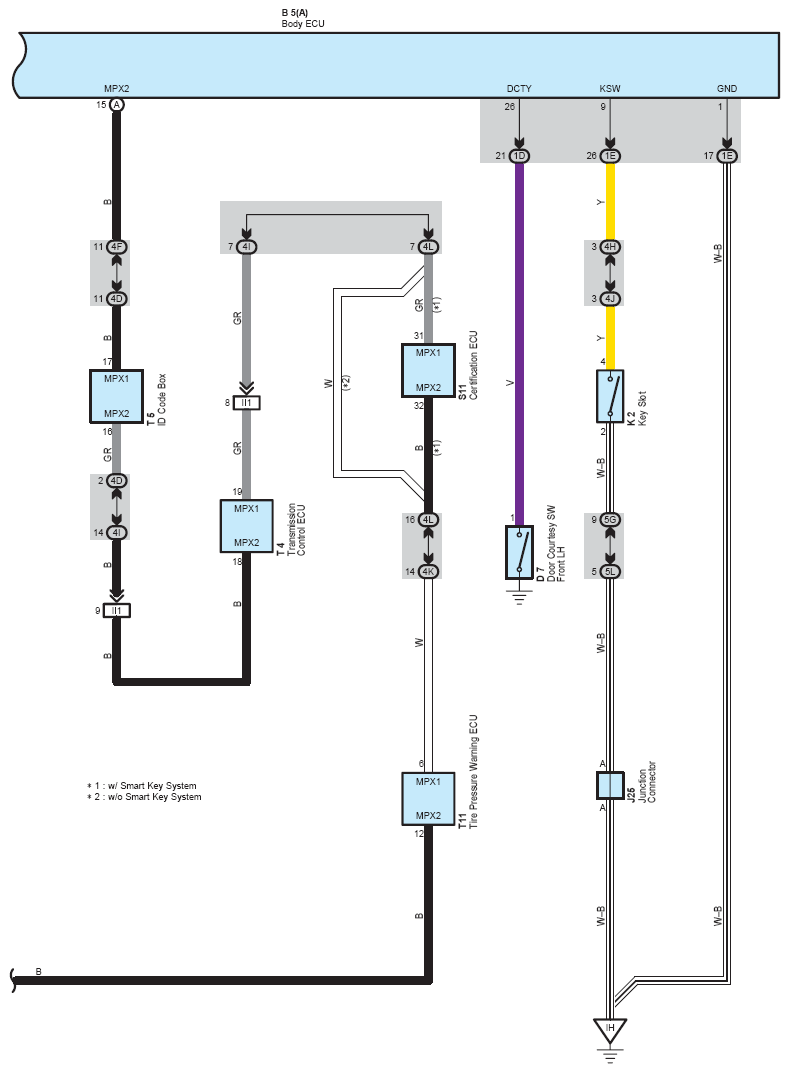

Fig 2: Key Reminder System Wiring Diagram (2 Of 2)
G08794762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
