Home >> Toyota >> 2006 >> Prius >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Stop Light >> Notes

Stop Light: Notes

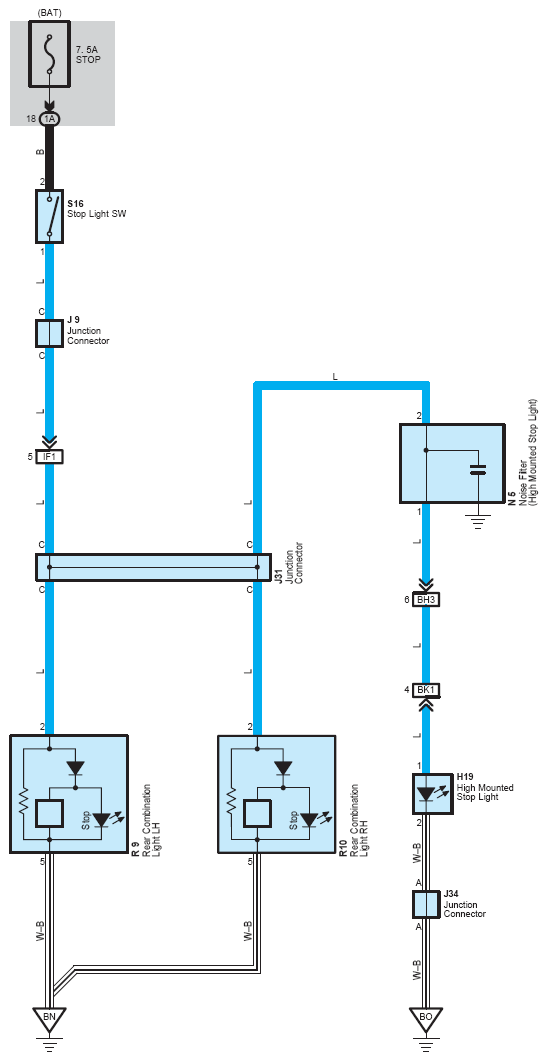

Fig 1: Stop Light System Wiring Diagram
G08794758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
