Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustration.
  1. Vehicle Identification Number Plate
  2. Certification Label

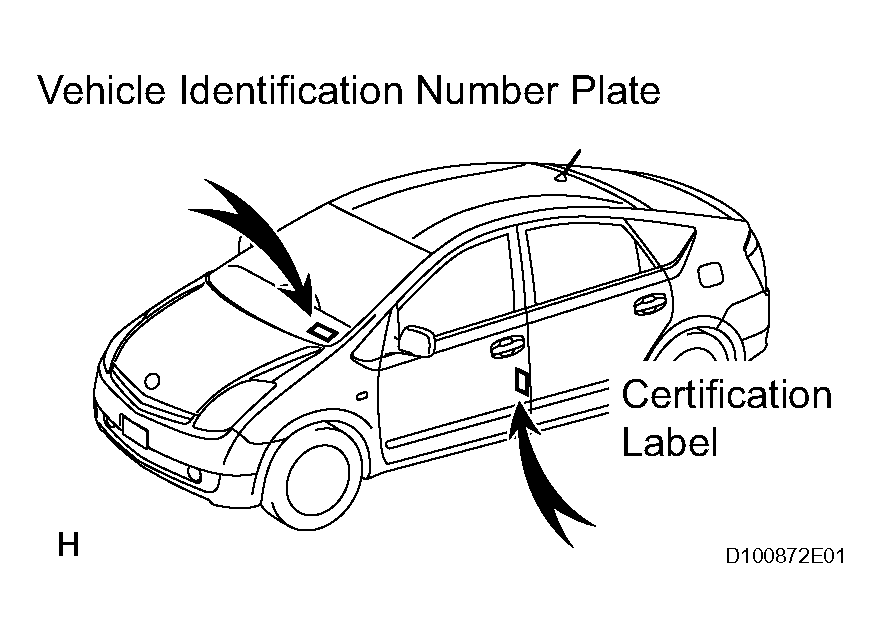

    Fig 1: Locating Vehicle Identification Number Plate & Certification Label
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the motor serial number is stamped on the motor as shown in the illustration.
  1. Engine serial number is stamped on the cylinder block of the engine.
  2. Motor serial number is stamped on the motor.

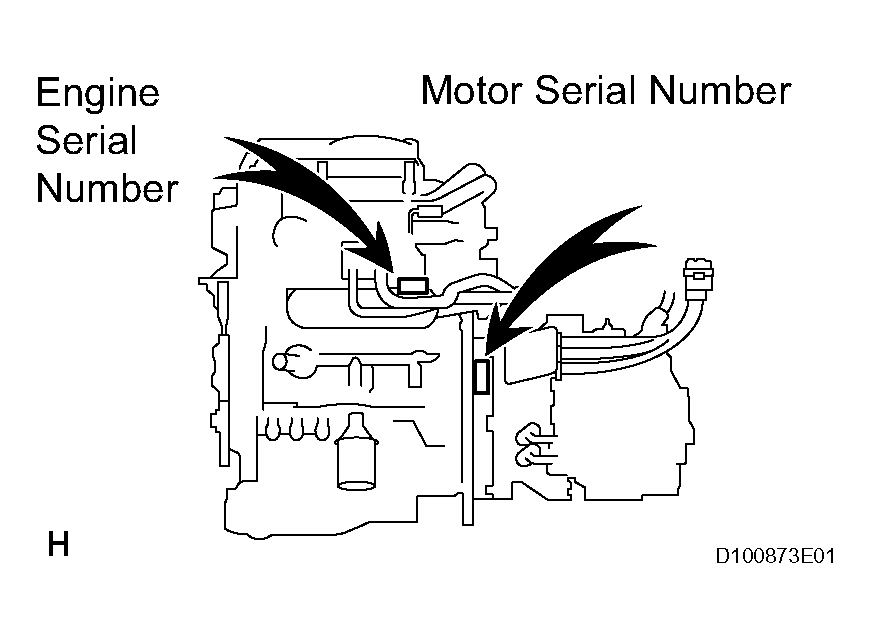

    Fig 2: Locating Engine Serial Number & Motor Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
