Differential Case: Disassembly

REMOVE DIFFERENTIAL CASE LH TAPERED ROLLER BEARING
1. Set the differential case in a vise.
2. Using SST, remove the bearing RH from the differential case.
  SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09958-04010)

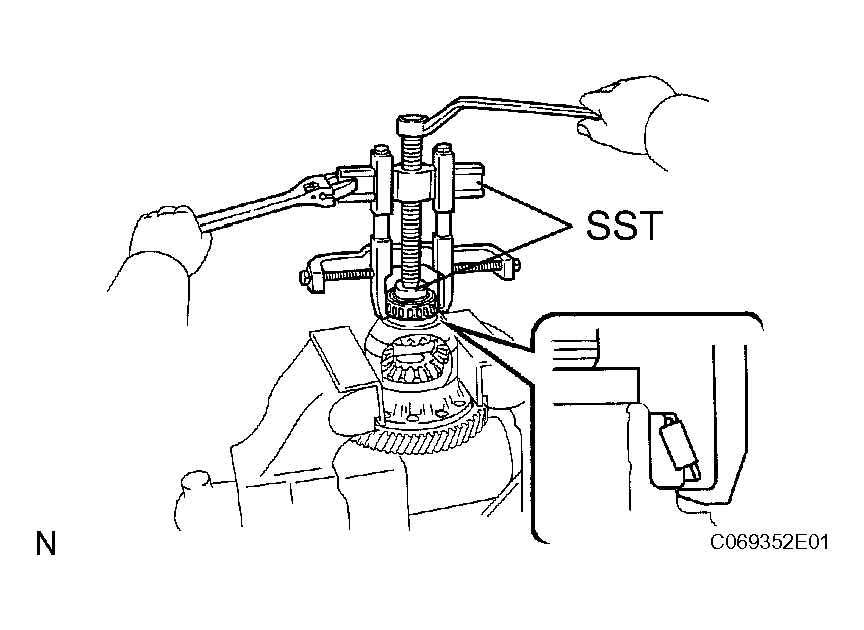

  Fig 1: Removing Bearing RH From Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Apply oil or equivalent to the ends and screw portions of SST.
REMOVE DIFFERENTIAL CASE RH TAPERED ROLLER BEARING
1. Set the differential case in a vise.
2. Using SST, remove the bearing LH from the differential case.
  SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09958-04010)

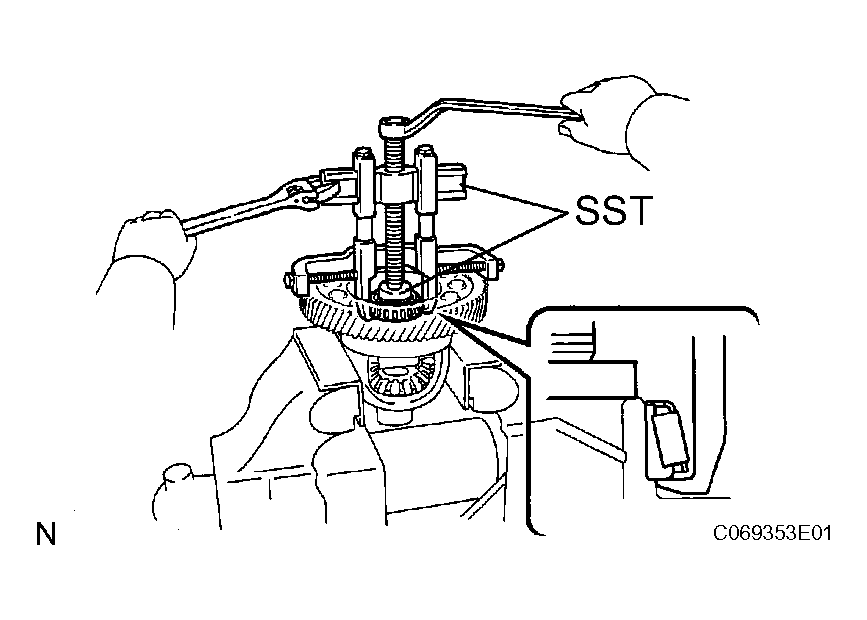

  Fig 2: Removing Bearing LH From Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE DIFFERENTIAL CASE

Set the differential case in a vise.
Tap out the straight pin from the differential case with a 5 mm pin punch.

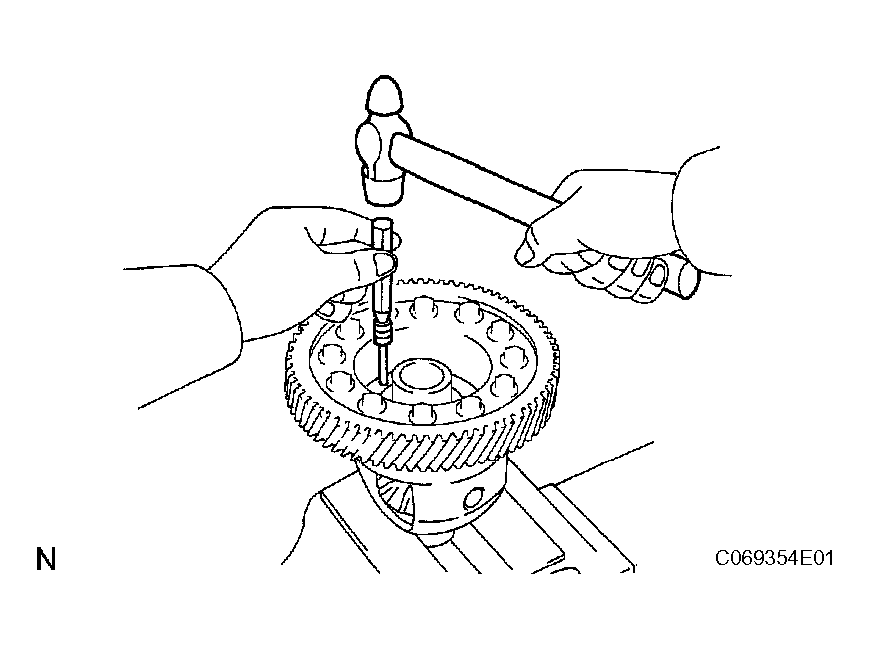

Fig 3: Tapping Out Straight Pin From Differential Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the following parts from the differential case.

DIFFERENTIAL CASE PARTS SEQUENCE DESCRIPTION

Number	Part	Number of Parts
1	Pinion shaft	1
2	Pinion	2
3	Pinion thrust washer	2
4	Side gear	2
5	Side gear thrust washer	2

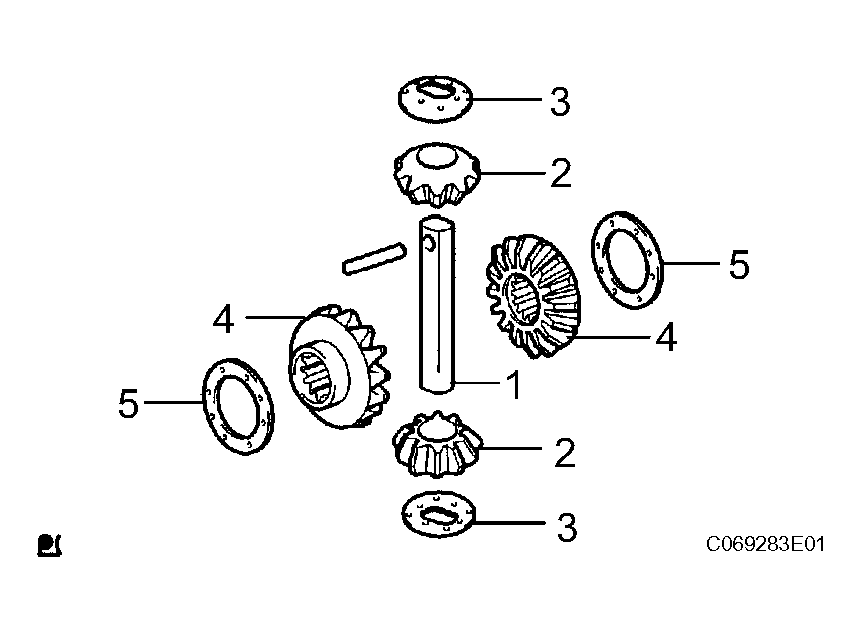

Fig 4: Identifying Differential Case Components

G04474279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
